Tractor · 1965Unverified

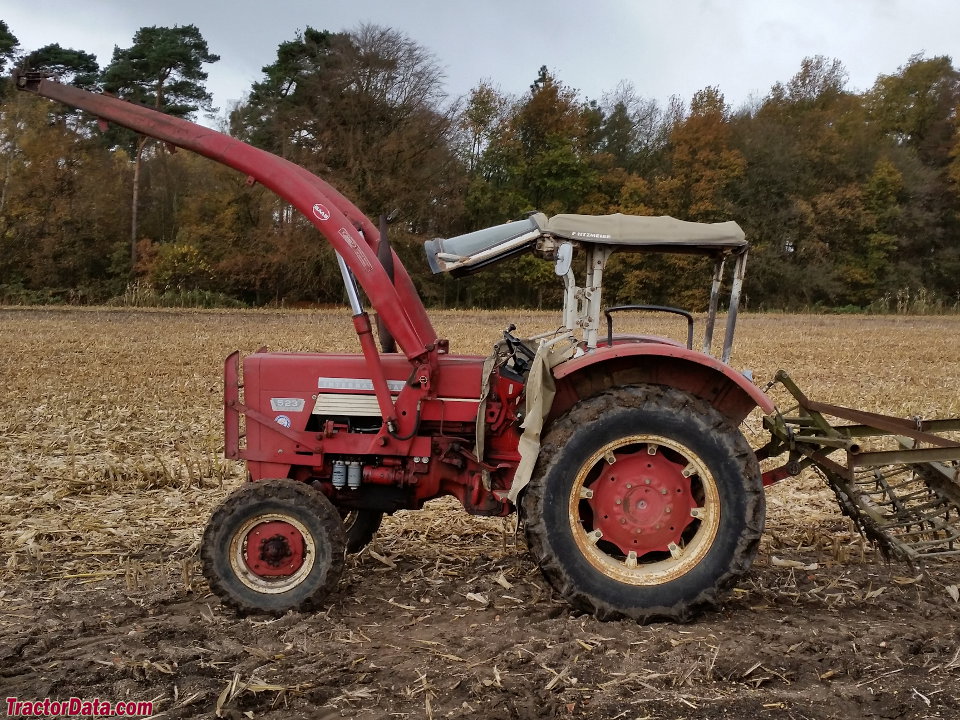

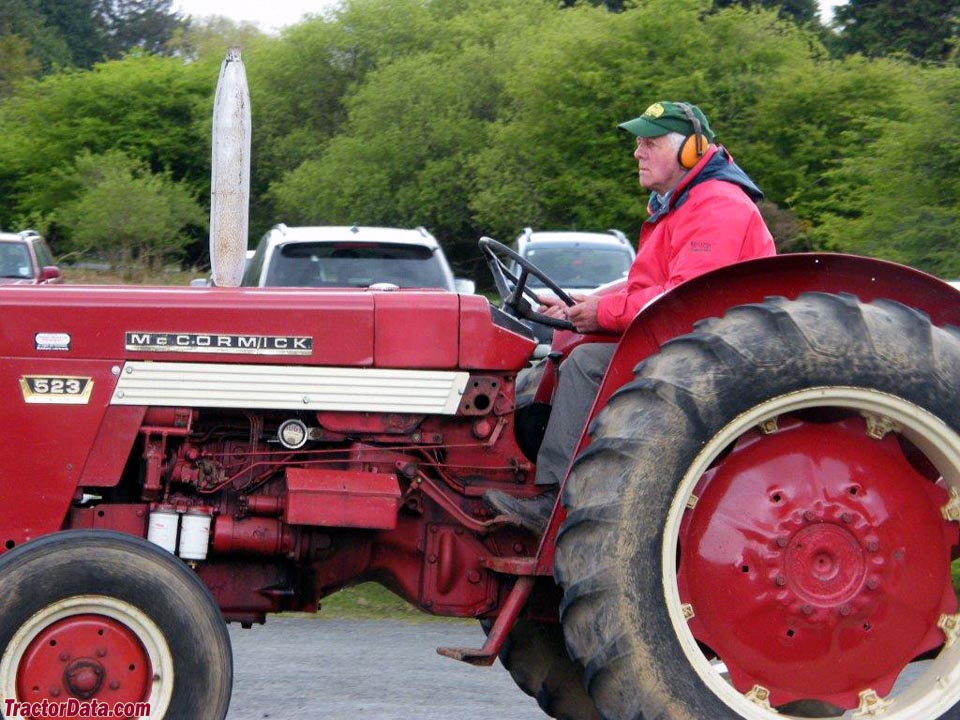

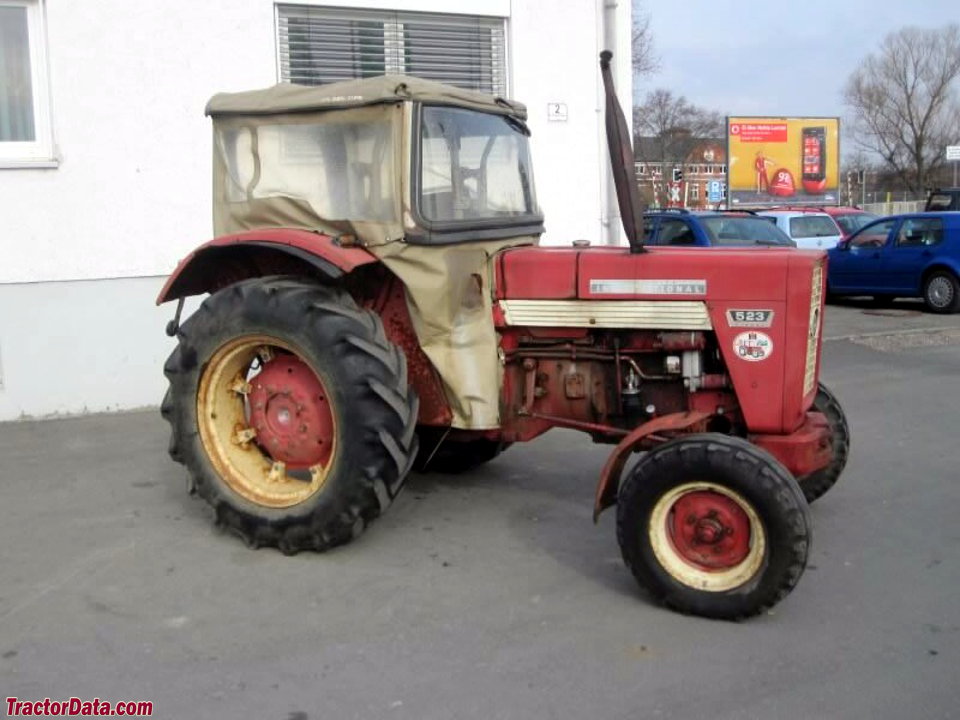

International Harvester 523
International Harvester 523 — Utility tractor · 52 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
52 hp
Weight
5380 to 6295 pounds
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
Utility tractorReference
Built in Neuss, GermanyReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Manual steeringReference
Disc brakesReference
Open operator station.Reference
Engine
International Harvester 2.9L 3-cyl dieselReference
Engine38.8 kWReference
International Harvester D-179Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.9 LReference
Bore/Stroke98 x 129 mmReference
Power38.8 kWReference
Fuel systemdirect injectionReference
Air cleaneroil bathReference
Rated RPM2100Reference
StarterelectricReference
Starter volts12Reference
Starter power3.0 kWReference
Oil capacity6.4 LReference
Coolant capacity15.4 LReference
Transmission
8-speedReference
12-speed partial power shiftReference
Gears8 forward and 4 reverseReference
Clutch279.4mm dry discReference
Oil capacity33.2 LReference
Four gears (1-4) in two ranges (low/high) plus reverse range.Reference
TransmissionAgriomatic SReference
Typepartial power shiftReference
Gears12 forward and 4 reverseReference
The Agriomatic S provides an additional four forward speeds selected by a right-hand power shift lever. Pushing the lever forward engages the Agriomatic range, while rearward uses the conventional range. The Agriomatic speeds are between high and low ranges, so this provides an undershift in high range and an overshift in low range. In reverse range it operates as a power shuttle.Reference
Capacities
Fuel70.0 LReference
PTO & Hydraulics
Hydraulic system16.3 LReference
Capacity16.3 LReference
Pump flow28.4 lpmReference
Rear TypeII/IReference
Rear lift1700 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Rear PTO Type540/1000 (1.375)Reference
Dimensions
Wheelbase199 cmReference
Weight5380 to 6295 poundsReference
Front tire6.00-16Reference
Rear tire11-32Reference
Ag front6.00-16Reference
Ag rear11-32Reference
Ag front7.50-16Reference
4WD Ag front9-24Reference
Ag rear13-28Reference
Ag rear14-28Reference
Ag rear13-30Reference
Ag rear14-30Reference
Ag rear11-36Reference
Ag rear12-36Reference
Length304 cmReference
Width162 cmReference
Height (steering wheel)151 cmReference
Height (exhaust)218 cmReference
2WD Weight2440 kgReference
4WD Weight2855 kgReference
Clearance (front axle)38 cmReference
Clearance (drawbar)30 cmReference
Electrical
Charging systemgeneratorReference
Charging amps10.8Reference
Battery AH135Reference
Speeds
With 11-32 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
