Tractor · 1981Unverified

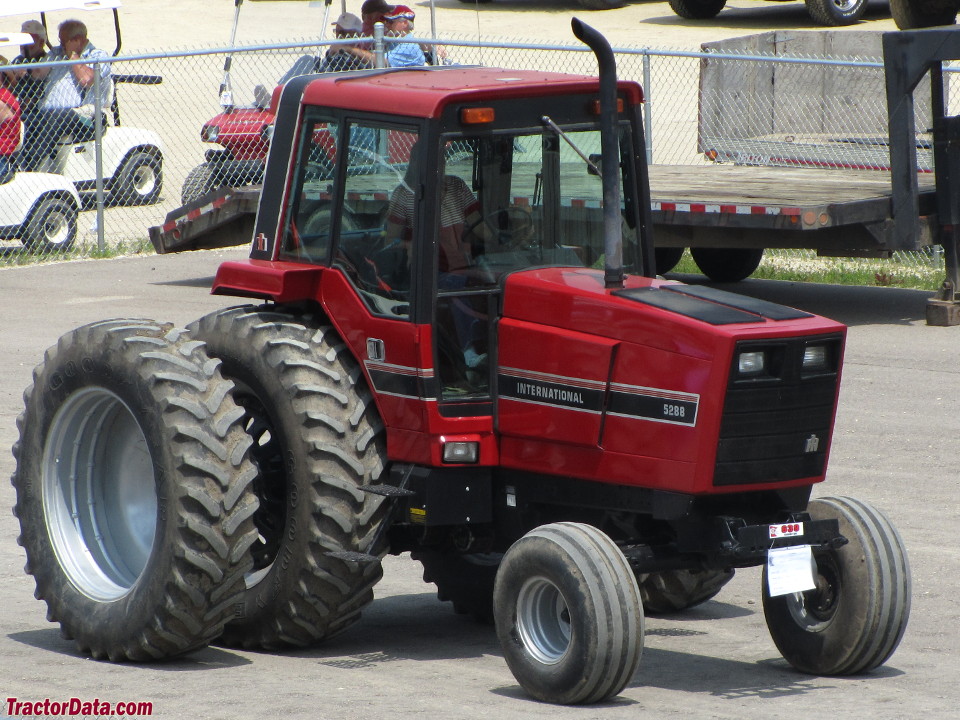

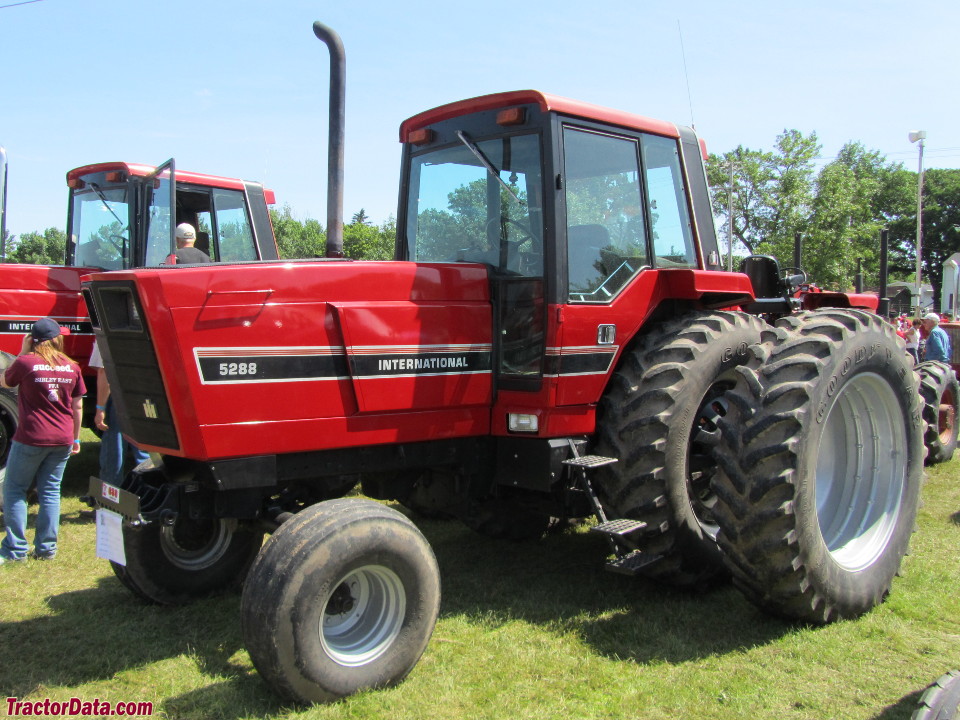

International Harvester 5288
International Harvester 5288 — 50 Series · 163 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
163 hp
Max power
102.6 kW
Weight
14610 to 17055 pounds
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
Row-Crop tractorReference
Built in Rock Island, Illinois, USAReference
Total built5,905Reference
Original price was $60,000 in 1985Reference
Two- or four-wheel driveReference
Final drivesplanetaryReference
Differential lockmechanical rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard with heat and air-conditioning. Optional burgundy or western interior finish.Reference
Engine
International Harvester 7.6L 6-cyl dieselReference
Drawbar (claimed)105.1 kWReference
Drawbar (tested)102.6 kWReference
International Harvester DT-466BReference
turbocharged dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement7.6 LReference
Bore/Stroke109 x 136 mmReference
Rated RPM2400Reference
Idle RPM800-2660Reference
Starter volts12Reference
Oil capacity18.9 LReference
Coolant capacity29.3 LReference
Power at rated engine speed121.3 kWReference
Max power102.6 kWReference
Transmission
18-speed partial power shiftReference
TransmissionSynchro Tri-Six (STS)Reference
Typepartial power shiftReference
Gears18 forward and 6 reverseReference
Oil capacity164.7 LReference
Left lever selects gear, right lever selects high, medium, low, or reverse range. Clutch-free on-the-move powershifting in gear pairs 1/2, 3/4, and 5/6. Synchronized on-the-move shifting (with the clutch) between pairs.Reference
PTO & Hydraulics
PTO (claimed)119.3 kWReference
PTO (tested)121.3 kWReference
Hydraulic system164.6 LReference
Typeclosed centerReference
Capacity164.6 LReference
Valves2Reference
Pump flow94.6 lpmReference
Pump flow151.4 lpmReference
Total flow253.6 lpmReference
Total flow310.4 lpmReference
Steering flow45.4 lpmReference
Rear TypeIIIReference
Rear lift3663 kgReference
Rear PTOindependentReference
Rear PTO Type1000Reference
Capacities
Fuel329.3 LReference
Dimensions
Wheelbase283 cmReference
Weight14610 to 17055 poundsReference
Front tire14L-16.1Reference
Rear tire20.8-38Reference
Ag front14L-16.1Reference
Ag rear20.8-38Reference
Length499 cmReference
Width284 cmReference
Height294 cmReference
Ground clearance46 cmReference
Bar rear axle101 by 2844 mmReference
Front tread157 to 218 cmReference
2WD Shipping6627 kgReference
4WD Shipping7170 kgReference
Operating7736 kgReference
5288 Serial Number Location
Right side of tractor frameReference
5288 Serial Numbers
1981501Reference
19822292Reference
19834086Reference
19845054Reference
19856334Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Test results
Diesel 18-speed 2WDNovember 13 - 24, 1981Link: Nebraska Tractor Test 1420 fileReference
PTO performanceReference
Fuel use38.2 l/hourReference
Drawbar performanceReference
Fuel use37.9 l/hourReference
Max pull7972 kgReference
Speeds
With 20.8-38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
