Tractor · 1972Unverified

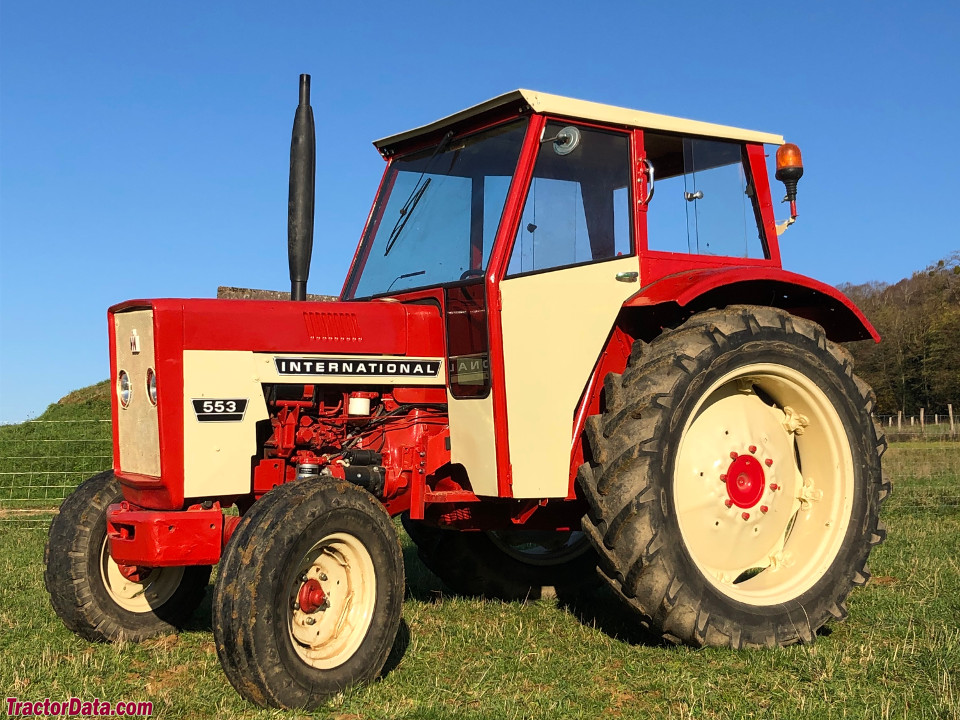

International Harvester 553
International Harvester 553 — Utility tractor · 52 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
52 hp
Weight
5950 to 6383 pounds
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
Utility tractorReference
Built in Neuss, GermanyReference
Two- or four-wheel driveReference
Manual steeringReference
Dry disc brakesReference
Open operator station.Reference
Engine
International Harvester 2.9L 3-cyl dieselReference
Engine38.8 kWReference
International Harvester D-179Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.9 LReference
Bore/Stroke98 x 129 mmReference
Power38.8 kWReference
Rated RPM2180Reference
Torque192.3 NmReference
Torque RPM1500Reference
StarterelectricReference
Starter volts12Reference
Starter power3.0 kWReference
Oil capacity7.5 LReference
Coolant capacity15.5 LReference
Transmission
8-speed partially synchronizedReference
12-speed partial power shiftReference
Typepartially synchronizedReference
Gears8 forward and 4 reverseReference
Clutch292.1mm dry discReference
Oil capacity45.5 LReference
TransmissionAgriomatic SReference
Typepartial power shiftReference
Gears12 forward and 4 reverseReference
Oil capacity38.5 LReference
The Agriomatic S provides an additional four forward speeds selected by a right-hand power shift lever. Pushing the lever forward engages the Agriomatic range, while rearward uses the conventional range. The Agriomatic speeds are between high and low ranges, so this provides an undershift in high range and an overshift in low range. In reverse range it operates as a power shuttle.Reference
Capacities
Fuel70.0 LReference
Rear axle3.5 LReference
PTO & Hydraulics
Hydraulic system16.7 LReference
Capacity16.7 LReference
Rear TypeII/IReference
Rear lift2000 kgReference
Rear PTO Type540Reference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase199 cmReference
Weight5950 to 6383 poundsReference
Front tire9-24Reference
Rear tire16.9/14-30Reference
Standard tires (ag)Front: 9-24. Rear: 16.9/14-30Reference
Optional tires (ag)Front: 10-24. Rear: 13.6/12-38Reference
Optional tires (ag)Front: 10-24. Rear: 16.9/14-34Reference
Optional tires (ag)Front: 10-24. Rear: 18.4/15-30Reference
Length342 cmReference
Width178 cmReference
Height175 cmReference
2WD Weight2698 kgReference
4WD Weight2895 kgReference
Ground clearance38 cmReference
Electrical
Charging systemgeneratorReference
Charging amps11Reference
Charging volts12Reference
Battery volts12Reference
Battery AH135Reference
Speeds
With 14-30 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
