Tractor · 1974Unverified

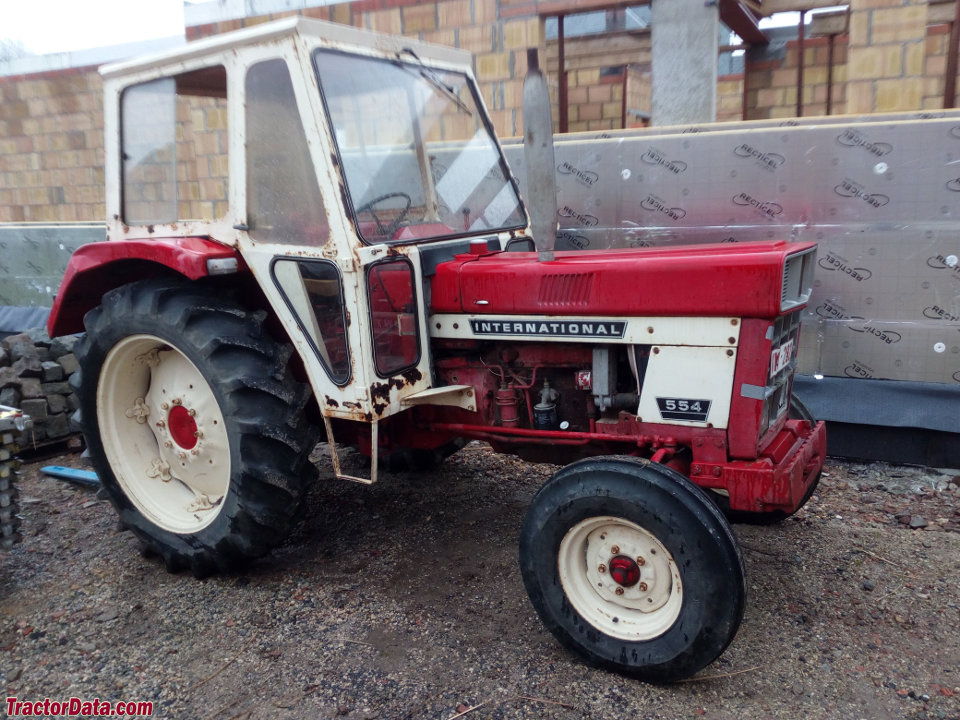

International Harvester 554
International Harvester 554 — Utility tractor · 59 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
59 hp
Weight
6945 to 7826 pounds
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
Utility tractorReference
Built in Neuss, GermanyReference
Two- or four-wheel driveReference
Manual steeringReference
Open operator station.Reference
Engine
International Harvester 3.4L 4-cyl dieselReference
Fuel tank74.2 LReference
Engine (gross)44.1 kWReference
Engine (net)39.7 kWReference
International Harvester D-206Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.4 LReference
Bore/Stroke98 x 111 mmReference
Power (net)39.7 kWReference
Power (gross)44.1 kWReference
Compression16:1Reference
Rated RPM2180Reference
Starter volts12Reference
Transmission
8-speedReference
12-speedReference
Gears8 forward and 4 reverseReference
Gears12 forward and 4 reverseReference
PTO & Hydraulics
Rear TypeIIReference
Rear PTO Type540Reference
Dimensions
2WD Wheelbase223 cmReference
4WD Wheelbase218 cmReference
Weight6945 to 7826 poundsReference
Front tire7.50-16Reference
2WD Rear tire13.6/12-36Reference
2WD Standard tires (ag)Front: 7.50-16. Rear: 13.6/12-36Reference
4WD Standard tires (ag)Front: 11.2/10-24. Rear: 13.6/12-36Reference
Length348 cmReference
Height247 cmReference
2WD Weight3150 kgReference
4WD Weight3549 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
