Tractor · 1981Unverified

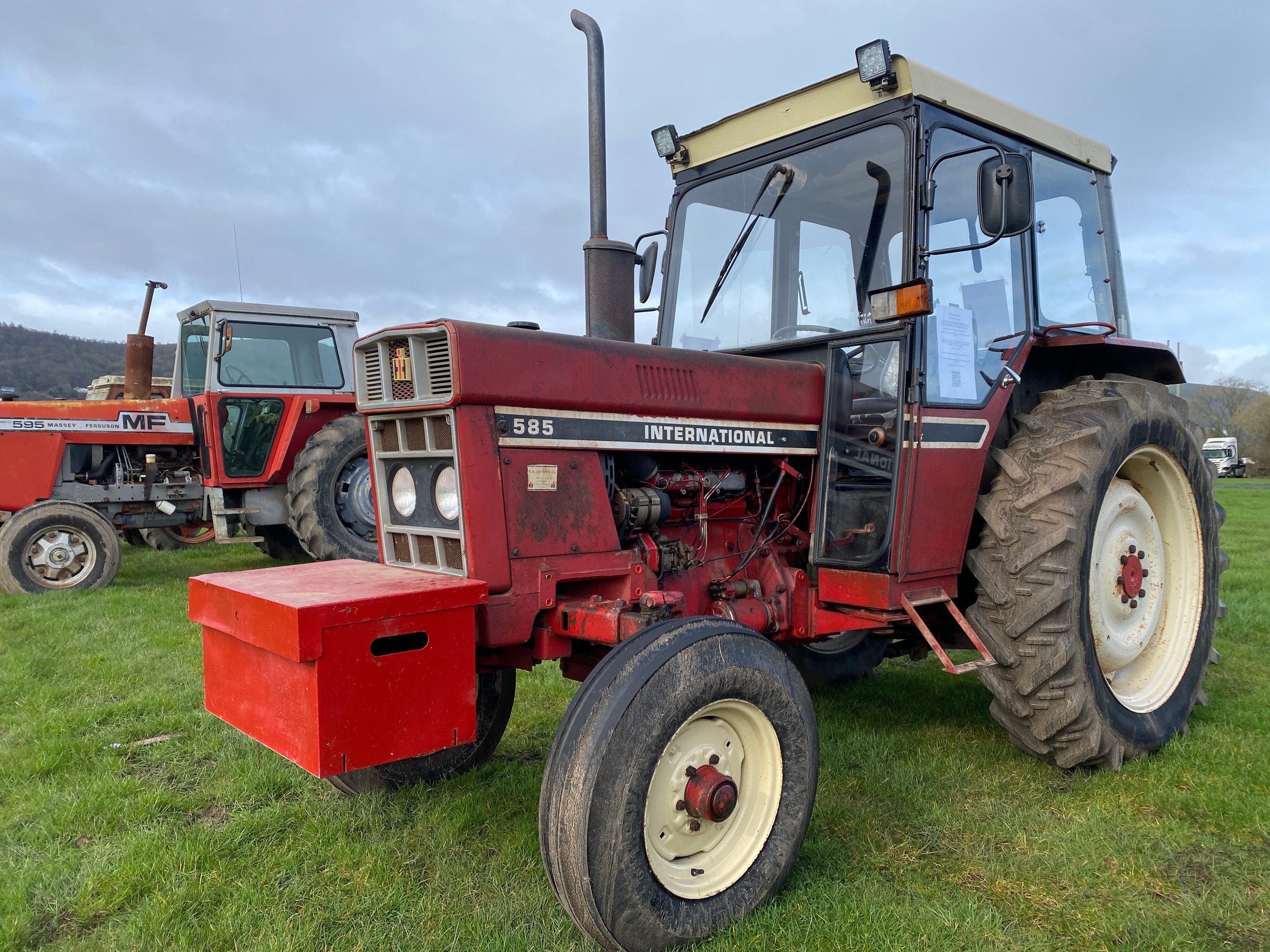

International Harvester 585
International Harvester 585 — 85 Series · 62 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
62 hp
Weight
6394 to 7188 pounds
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
Utility tractorReference
Built in Doncaster, EnglandReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard. Economy and Deluxe cabs available.Reference
Engine
International Harvester 3.4L 4-cyl dieselReference
Fuel tank112.0 LReference
Engine (gross)46.2 kWReference
Engine (net)43.9 kWReference
International Harvester D-206Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.4 LReference
Bore/Stroke98 x 111 mmReference
Power (net)43.9 kWReference
Power (gross)46.2 kWReference
Fuel systemdirect injectionReference
Rated RPM2300Reference
Torque225.1 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed synchromeshReference
16-speed two-speed power shiftReference
TypesynchromeshReference
Gears8 forward and 4 reverseReference
Four gears (1-4) in two ranges (low/high) plus reverse range.Reference
TransmissionTorque AmplifierReference
Typetwo-speed power shiftReference
Gears16 forward and 8 reverseReference
PTO & Hydraulics
PTO (claimed)39.3 kWReference
Pump flow46.9 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift1995 kgReference
Rear lift2381 kgReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase215 cmReference
Weight6394 to 7188 poundsReference
Front tire7.50-18Reference
Rear tire13.6-38Reference
Ag front7.50-18Reference
Ag front12.4-24 (4WD)Reference
Ag rear13.6-38Reference
Length361 cmReference
Height262 cmReference
2WD Weight2900 kgReference
4WD Weight3260 kgReference
585 Serial Numbers
Location:Serial number plate on right front of tractor frame, above the front axle.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
