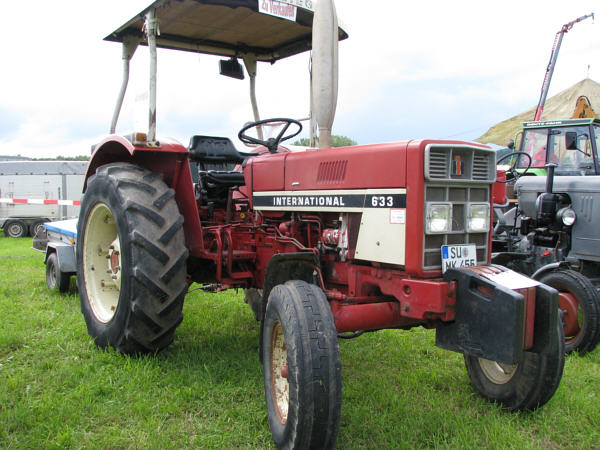

International Harvester 633 E
International Harvester 633 E — Orchard/Vineyard tractor · 52 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
52 hp
Weight
4200 to 4387 pounds
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
Orchard/Vineyard tractorReference
Two- or four-wheel driveReference
2WD SteeringmanualReference
4WD SteeringpowerReference
Two-post mid-mount foldable ROPS. Cab optional.Reference
Variants
633utilityReference
633EnarrowReference
633VvineyardReference
Engine
International Harvester 2.9L 3-cyl dieselReference
Fuel tank60.0 LReference
Engine38.8 kWReference
International Harvester D-179Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.9 LReference
Bore/Stroke98 x 129 mmReference
Power38.8 kWReference
Rated RPM2180Reference
Torque186.0 NmReference
Torque RPM1350Reference
StarterelectricReference
Starter volts12Reference
Oil capacity6.5 LReference
Coolant capacity14.6 LReference
Transmission
8-speedReference
16-speedReference
16-speed creeperReference
Gears8 forward and 4 reverseReference
TransmissionSynchronReference
Gears16 forward and 8 reverseReference
TypecreeperReference
PTO & Hydraulics
Rear TypeII/IReference
Rear PTO Type540Reference
Rear PTO Type540/1000Reference
Dimensions
2WD Wheelbase192 cmReference
4WD Wheelbase197 cmReference
Weight4200 to 4387 poundsReference
Front tire5.50-16Reference
2WD Rear tire12.4R28Reference
2WD Standard tires (ag)Front: 5.50-16. Rear: 12.4R28Reference
4WD Standard tires (ag)Front: 7.50-16. Rear: 12.4R28Reference
Length329 cmReference
Width133 cmReference
Height (ROPS)228 cmReference
2WD Shipping weight1905 kgReference
4WD Shipping weight1989 kgReference
2WD Ground clearance40 cmReference
4WD Ground clearance33 cmReference
Front tread107 to 165 cmReference
Rear tread101 to 161 cmReference
Electrical
Charging systemalternatorReference
Charging amps33Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
