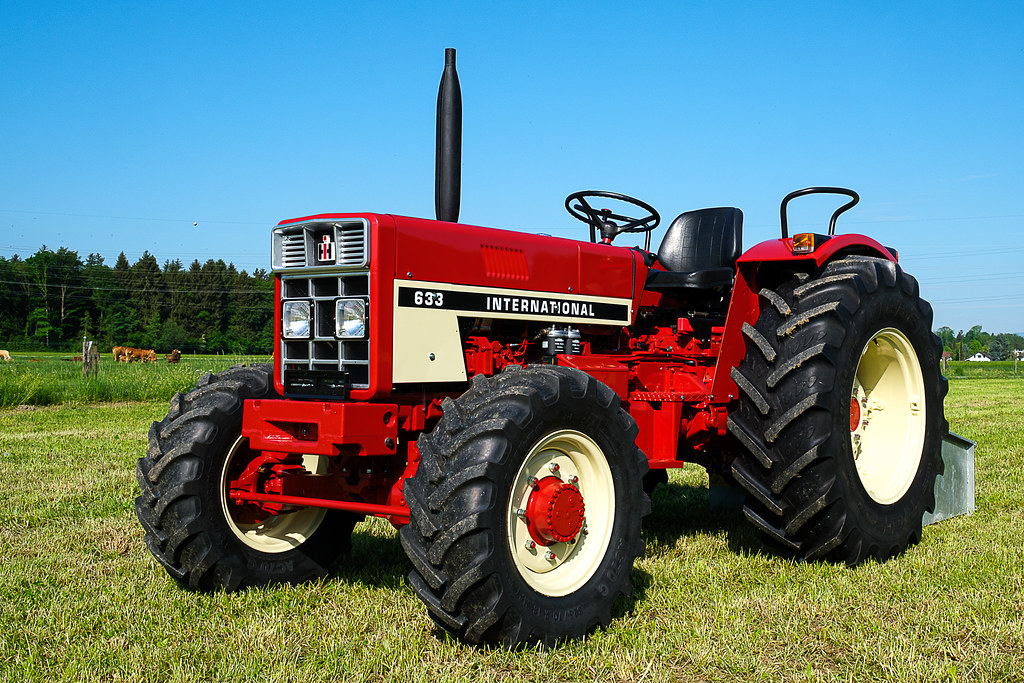

International Harvester 633 V
International Harvester 633 V — Orchard/Vineyard tractor · 52 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
52 hp
Weight
1809 kg
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
Orchard/Vineyard tractorReference
Two-wheel driveReference
Manual steeringReference
Two-post mid-mount foldable ROPS. Cab optional.Reference
Variants
633utilityReference
633EnarrowReference
633VvineyardReference
Engine
International Harvester 2.9L 3-cyl dieselReference
Fuel tank60.0 LReference
Engine38.8 kWReference
International Harvester D-179Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.9 LReference
Bore/Stroke98 x 129 mmReference
Power38.8 kWReference
Rated RPM2180Reference
Torque186.0 NmReference
Torque RPM1350Reference
StarterelectricReference
Starter volts12Reference
Oil capacity6.5 LReference
Coolant capacity14.6 LReference
Transmission
8-speedReference
16-speedReference
16-speed creeperReference
Gears8 forward and 4 reverseReference
TransmissionSynchronReference
Gears16 forward and 8 reverseReference
TypecreeperReference
PTO & Hydraulics
Rear TypeIReference
Rear PTO Type540Reference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase192 cmReference
Weight1809 kgReference
Front tire4.50-16Reference
Rear tire11.2R24Reference
Standard tires (ag)Front: 4.50-16. Rear: 11.2R24Reference
Length328 cmReference
Width116 cmReference
Height (ROPS)220 cmReference
Shipping weight1809 kgReference
Ground clearance33 cmReference
Front tread81 to 128 cmReference
Rear tread84 to 132 cmReference
Electrical
Charging systemalternatorReference
Charging amps33Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
