Tractor · 1965Unverified
International Harvester 656
International Harvester 656 — Utility tractor · 64 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
64 hp
Weight
5800 to 6100 pounds
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
Utility tractorReference
Original price was $7,400 in 1973Reference
Two-wheel driveReference
Power steeringReference
Disc brakesReference
Open operator station.Reference
Variants
IH 656utility tractorReference
2656industrial tractorReference
Farmall 656row-crop tractorReference
656HChigh-clearReference
Engine
International Harvester 4.3L 6-cyl gasolineReference
International Harvester 4.6L 6-cyl dieselReference
International Harvester 4.3L 6-cyl LP gasReference
Fuel tank87.1 LReference
Plows4-5Reference
International Harvester C263Reference
gasolineReference
6-cylinderReference
liquid-cooledReference
Displacement4.3 LReference
Bore/Stroke90 x 112 mmReference
Air cleanerdryReference
Rated RPM1800Reference
Idle RPM900-1800Reference
Oil capacity8.5 LReference
Coolant capacity16.1 LReference
International Harvester D282Reference
dieselReference
Displacement4.6 LReference
Bore/Stroke94 x 112 mmReference
Firing order1-5-3-6-2-4Reference
Coolant capacity18.5 LReference
International Harvester C-263Reference
LP gasReference
Bore/Stroke90 x 112 mmReference
Compression8.8:1Reference
Rated RPM1800 (early)Reference
Rated RPM2300 (late)Reference
Coolant capacity19.9 LReference
Transmission
5-speed sliding gearReference
10-speed two-speed power shiftReference
hydrostaticReference
Typesliding gearReference
Gears5 forward and 1 reverseReference
Clutch279.4mm cerametallic discReference
TransmissionTorque AmplifierReference
Typetwo-speed power shiftReference
Gears10 forward and 2 reverseReference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
PTO & Hydraulics
PTO (claimed)47.6 kWReference
Typeopen centerReference
Valves0 to 2Reference
Pump flow45.4 lpmReference
Rear TypeIIReference
Controllower-link draft sensingReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase203 cmReference
Weight5800 to 6100 poundsReference
Front tire7.50-16Reference
Rear tire16.9-38Reference
Ag front7.50-16Reference
Ag rear16.9-38Reference
Ag front6.00-16 (Hi-Clear)Reference
Ag rear15.5-38 (Hi-Clear)Reference
Length386 cmReference
Width187 cmReference
Height (steering wheel)157 cmReference
Height (hood)142 cmReference
Gas Shipping weight2630 kgReference
Diesel Shipping weight2766 kgReference
Clearance (front axle)48 cmReference
Bar rear axle69 mmReference
Front tread137 to 213 cmReference
Rear tread137 to 198 cmReference
International Harvester 656 attachments

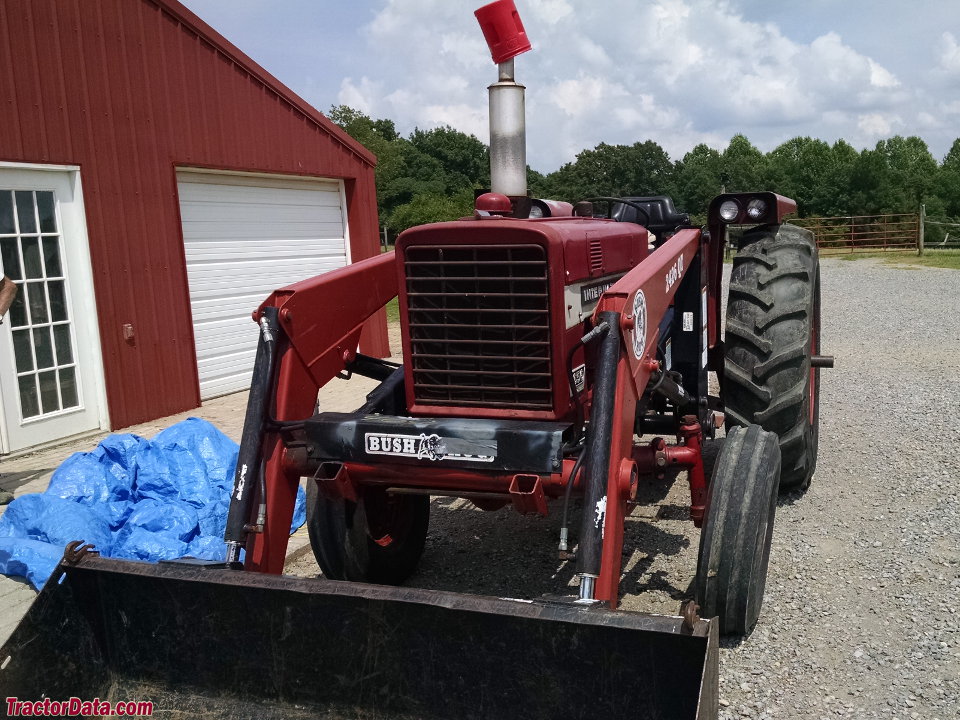

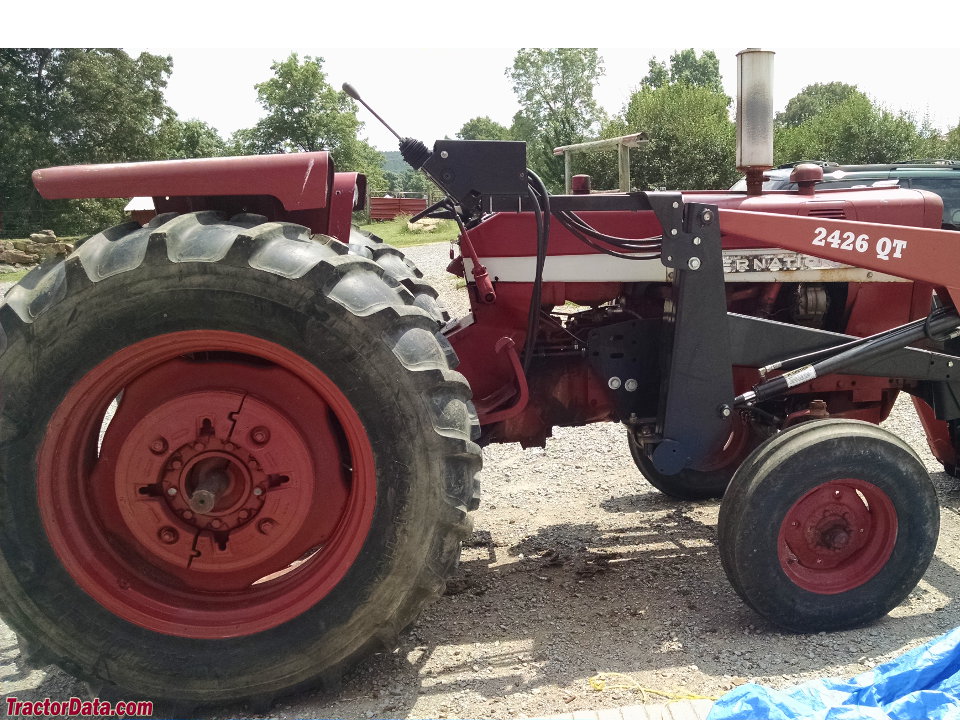

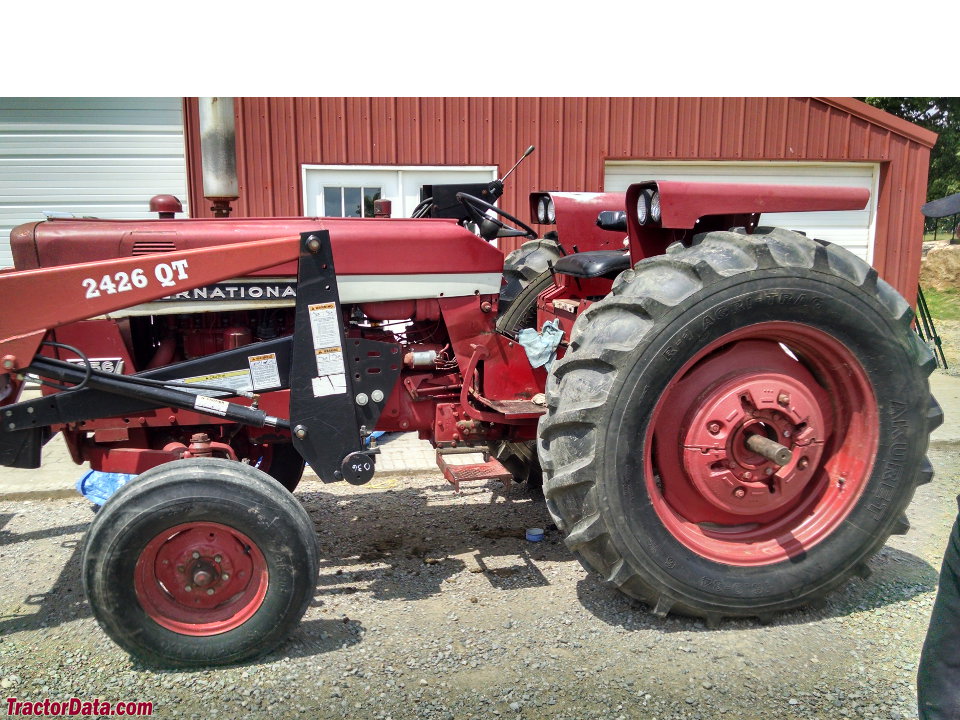

front-end loaderReference
656 Serial Numbers
Location:Clutch housing, right sideReference
19667501 (IH)Reference
19677842 (IH)Reference
19689929 (IH)Reference
196911802 (IH)Reference
197013353 (IH)Reference
197114194 (IH)Reference
197214952 (IH)Reference
197315746 (IH)Reference
FAQ: How to read a serial number table.Reference
Electrical
Charging systemalternatorReference
Charging amps55Reference
Attachment overview
International Harvester 1701 loaderReference
International Harvester 2000 loaderReference
Speeds
With 16.9-30 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
