Tractor · 1972Unverified

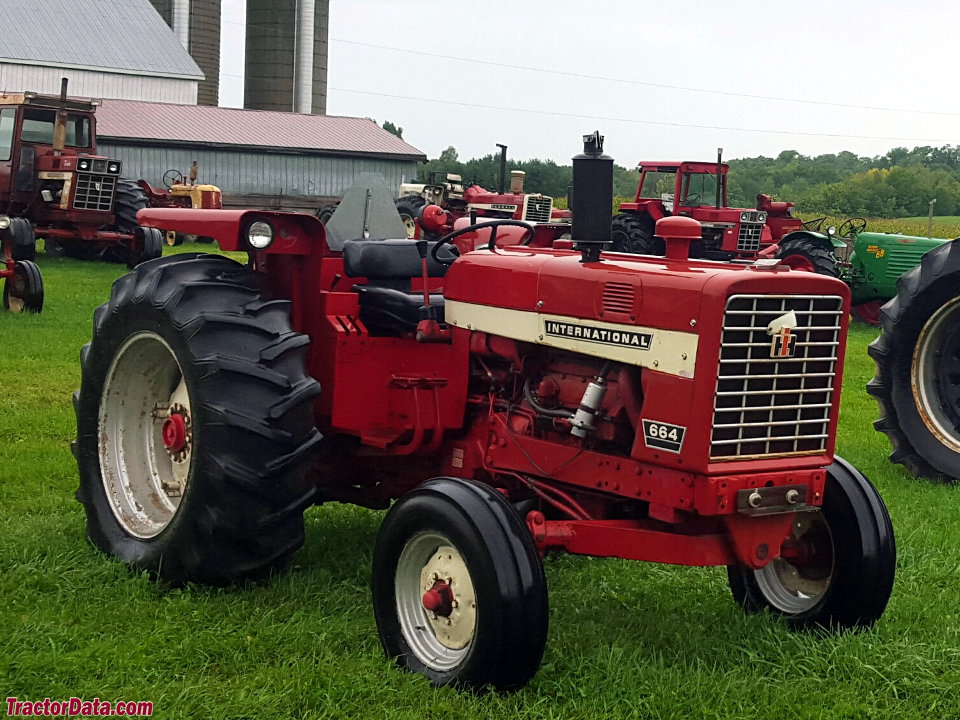

International Harvester 664
International Harvester 664 — Utility tractor · 62 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
62 hp
Weight
2698 kg
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
Utility tractorReference
Built in Rock Island, Illinois, USAReference
Original price was $7,500 in 1973Reference
Two-wheel driveReference
Final drivesbull gearReference
Power steeringReference
Mechanical disc brakesReference
Open operator station.Reference
Engine
International Harvester 3.9L 4-cyl dieselReference
Fuel tank66.2 LReference
Drawbar (claimed)40.3 kWReference
International Harvester D239Reference
naltural dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke98 x 129 mmReference
Fuel systemdirect inejctionReference
Air cleanerdryReference
Compression16:1Reference
Rated RPM2400Reference
Idle RPM900-2400Reference
StarterelectricReference
Starter volts12Reference
Oil capacity9.5 LReference
Coolant capacity16.1 LReference
Transmission
10-speed two-speed power shiftReference
5-speed gearReference
TransmissionTorque AmplifierReference
Typetwo-speed power shiftReference
Gears10 forward and 2 reverseReference
Clutch279mm dry discReference
TypegearReference
Gears5 forward and 1 reverseReference
PTO & Hydraulics
PTO (claimed)46.2 kWReference
Typeopen centerReference
Pump flow45.4 lpmReference
Rear TypeIIReference
Controldraft controlReference
Rear PTOindependentReference
Clutchhydrauilc discReference
Rear PTO Type540 (1.375)Reference
Rear PTO Type1000 (1.375)Reference
Engine RPM540@2000Reference
Engine RPM1000@2240Reference
Dimensions
Wheelbase187 cmReference
Weight2698 kgReference
Front tire6.50-16Reference
Rear tire14.9-30Reference
Ag front6.50-16Reference
Ag rear14.9-30Reference
Length353 cmReference
Width177 cmReference
Height (steering wheel)157 cmReference
Shipping weight2698 kgReference
Clearance (front axle)48 cmReference
Clearance (drawbar)25 cmReference
Front tread137 to 198 cmReference
Rear tread142 to 193 cmReference
664 Serial Numbers
19722501Reference
19733212Reference
FAQ: How to read a serial number table.Reference
Electrical
Charging systemalternatorReference
Charging amps32Reference
Batteries2Reference
Battery volts6Reference
Battery AH135Reference
Speeds
With 14.9-30 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
