Tractor · 1969Unverified

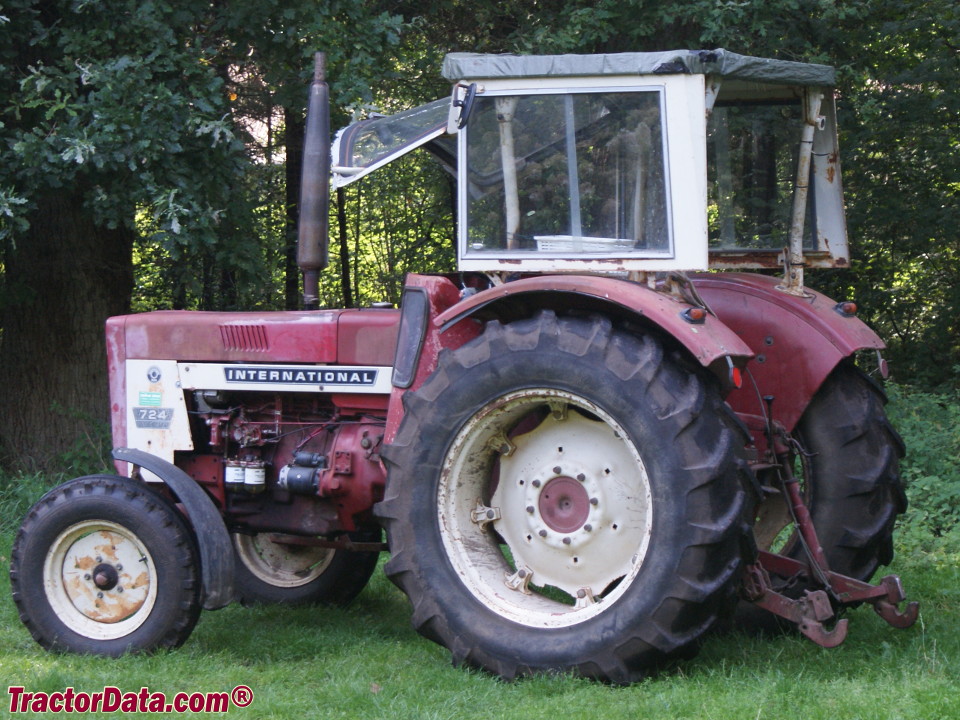

International Harvester 724
International Harvester 724 — Model year 1969-19721972-1974 · 67 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
67 hp
Weight
6262 to 6626 pounds
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
Utility tractorReference
FactoriesNeuss, GermanyReference
FactoriesSaint Dizier, FranceReference
Two- or four-wheel driveReference
Manual steeringReference
Dry disc brakesReference
Trailer brakespneumaticReference
Trailer brakeshydraulicReference
Open operator station.Reference
Engine
International Harvester 3.9L 4-cyl dieselReference
Fuel tank70.0 LReference
Engine50.0 kWReference
International Harvester D-239Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke98 x 129 mmReference
Power50.0 kWReference
Fuel systemdirect injectionReference
Compression16:1Reference
Rated RPM2200Reference
Idle RPM650-2420Reference
Torque223.7 NmReference
Torque RPM1600Reference
Firing order1-3-4-2Reference
Starter volts12Reference
Intake valve clearance0.254 mmReference
Exhaust valve clearance0.305 mmReference
Oil capacity7.9 LReference
Oil change200 hReference
Transmission
8-speedReference
12-speed partial power shiftReference
Transmissionpartially synchronizedReference
Gears8 forward and 4 reverseReference
Four gears (1-4) in high, low, and reverse ranges. Gear shifting is synchronized using the clutch. Tractor must be stopped to shift range.Reference
TransmissionAgriomatic SReference
Typepartial power shiftReference
Gears12 forward and 4 reverseReference
The Agriomatic S provides an additional four forward speeds selected by a right-hand power shift lever. Pushing the lever forward engages the Agriomatic range, while rearward uses the conventional range. The Agriomatic speeds are between high and low ranges, so this provides an undershift in high range and an overshift in low range. In reverse range it operates as a power shuttle.Reference
PTO & Hydraulics
Pump flow28.4 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift2050 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Dimensions
Wheelbase212 cmReference
Weight6262 to 6626 poundsReference
Front tire6.00-16Reference
Rear tire14-34Reference
Ag front6.00-16Reference
Ag rear14-34Reference
Ag front5.50-16Reference
Ag front7.50-16Reference
Ag front7.50-18Reference
Ag rear13-28Reference
Ag rear14-28Reference
Ag rear13-30Reference
Ag rear14-30Reference
Ag rear15-30Reference
Ag rear9-36Reference
Ag rear11-32Reference
Ag rear11-36Reference
Ag rear11-38Reference
Ag rear12-36Reference
Ag rear12-38Reference
Ag rear15.5-38Reference
Length318 cmReference
Width181 cmReference
Height156 cmReference
2WD Weight2840 kgReference
4WD Weight3005 kgReference
Ground clearance41 cmReference
Front tread132 to 172 cmReference
Rear tread146 to 186 cmReference
Electrical
GroundnegativeReference
Charging systemgeneratorReference
Batteries2Reference
Battery volts6Reference
Speeds
With 11-36 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
