Tractor · 1980Unverified

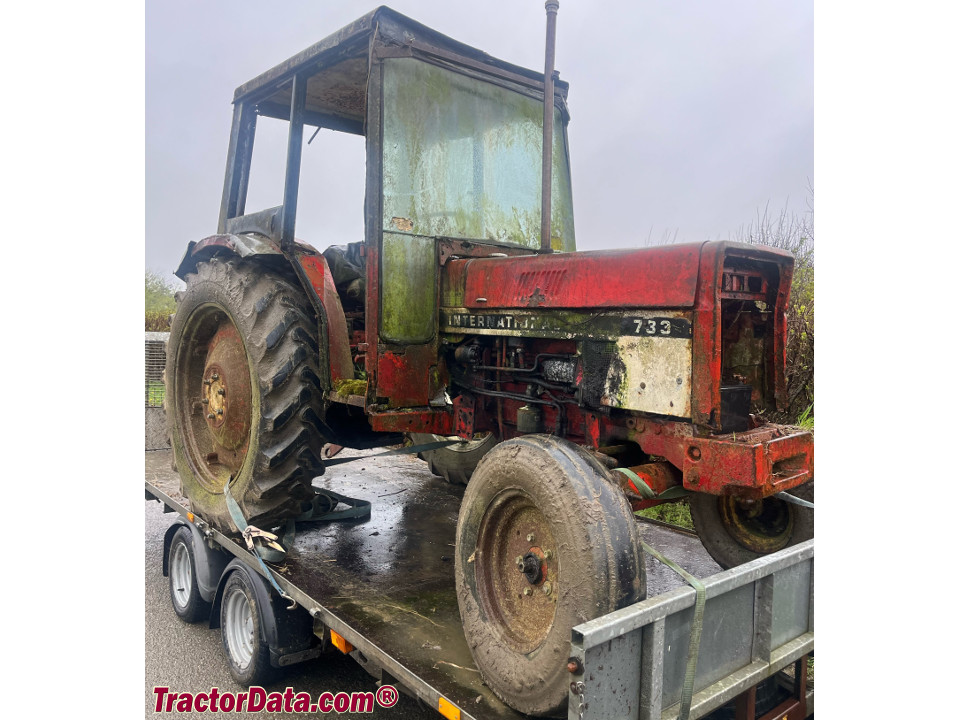

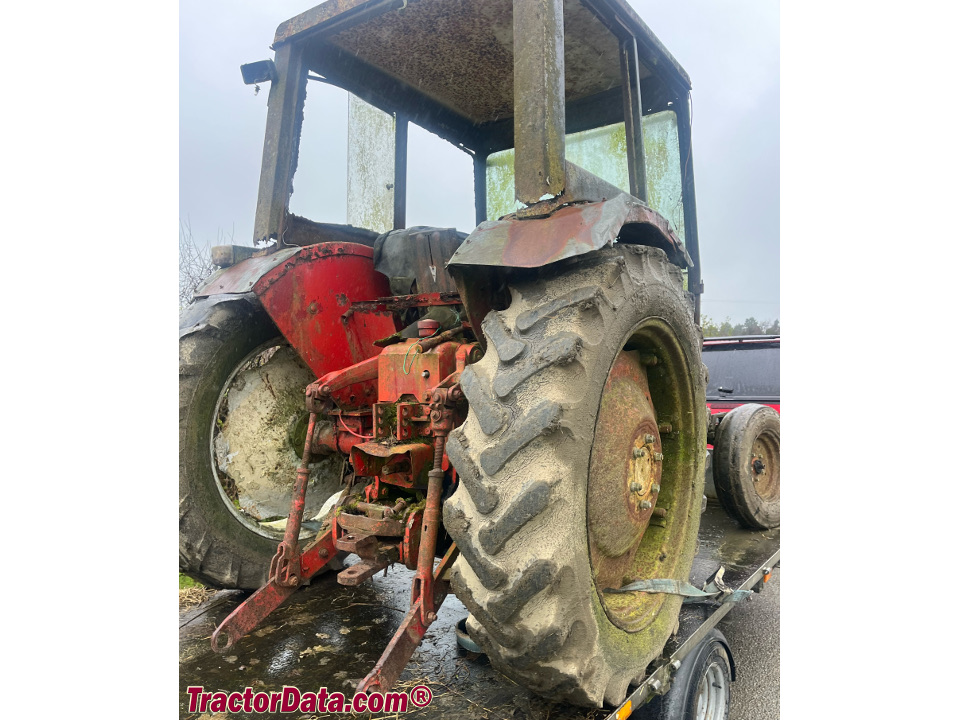

International Harvester 733
International Harvester 733 — 33 Series · 59 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
59 hp
Weight
5203 to 5952 pounds
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
Utility tractorReference
Built in Neuss, GermanyReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
2WD SteeringmanualReference
4WD SteeringpowerReference
Hydraulic disc brakesReference
Four-post ROPS. Cab optional with heat.Reference
Variants
733utilityReference
733EnarrowReference
Engine
International Harvester 3.4L 4-cyl dieselReference
Engine44.0 kWReference
International Harvester D-206Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.4 LReference
Bore/Stroke98 x 111 mmReference
Power44.0 kWReference
Fuel systemdirect injectionReference
Air cleanerdryReference
Rated RPM2180Reference
Torque208.8 NmReference
Torque RPM1600Reference
Starter volts12Reference
Oil capacity9.0 LReference
Coolant capacity17.5 LReference
Transmission
8-speedReference
16-speedReference
16-speed creeperReference
Gears8 forward and 4 reverseReference
Clutch280mm dry discReference
Four gears (1-4) in two ranges, plus reverse range.Reference
TransmissionSynchronReference
Gears16 forward and 8 reverseReference
TypecreeperReference
Capacities
Fuel60.0 LReference
PTO & Hydraulics
Hydraulic system12.1 LReference
Capacity12.1 LReference
Pump flow32.2 lpmReference
Rear TypeIIReference
Rear lift2100 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Dimensions
2WD Wheelbase218 cmReference
4WD Wheelbase214 cmReference
Weight5203 to 5952 poundsReference
Front tire7.50-16Reference
2WD Rear tire13.6/12x36Reference
2WD Standard tires (ag)Front: 7.50-16. Rear: 13.6/12x36Reference
4WD Standard tires (ag)Front: 10.5x20. Rear: 13.6/12x36Reference
Length359 cmReference
Width164 cmReference
2WD Height (steering wheel)152 cmReference
4WD Height (steering wheel)177 cmReference
Clearance (front axle)53 cmReference
2WD Front tread123 to 177 cmReference
4WD Front tread137 to 162 cmReference
2WD Rear tread142 to 189 cmReference
4WD Rear tread128 to 189 cmReference
2WD ROPS2360 kgReference
4WD ROPS2500 kgReference
2WD Cab2434 kgReference
4WD Cab2699 kgReference
Electrical
Charging systemalternatorReference
Charging amps33Reference
Charging volts14Reference
Battery volts12Reference
Battery AH88Reference
Speeds
With 13.6-36 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
