Tractor · 1982Unverified

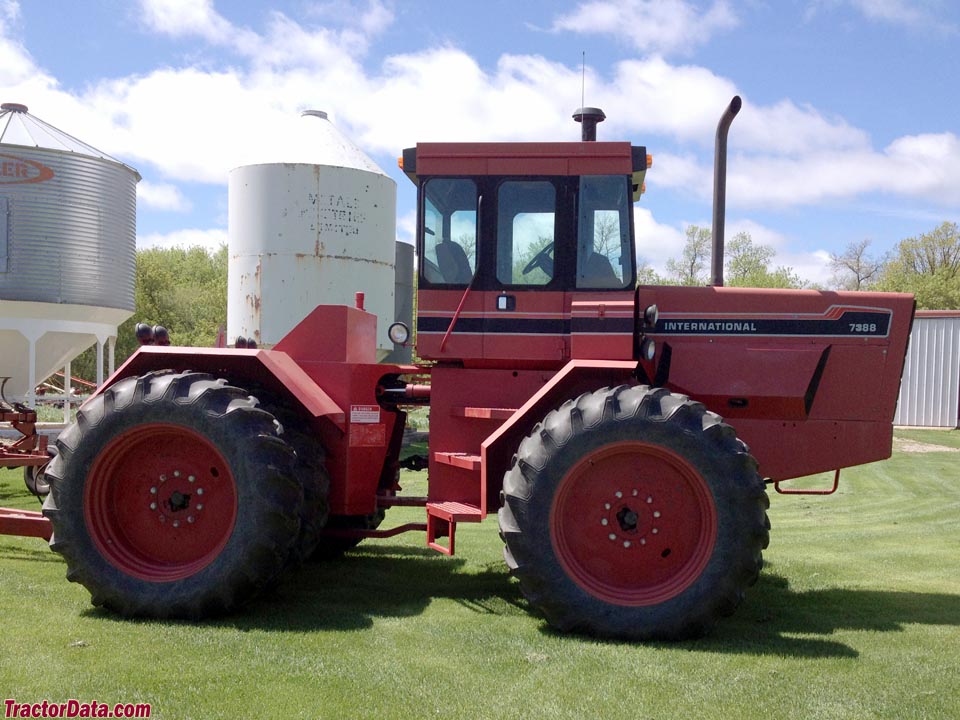

International Harvester 7388
International Harvester 7388 — 70 Series · 230 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
230 hp
Weight
8845 kg
Hover a source tag to verify
Overview
DistributorInternational HarvesterReference
ManufacturerSteigerReference
Four-wheel Drive (4WD) tractorReference
Built in Fargo, North Dakota, USAReference
Total built2Reference
Original price was $65,500 in 1984Reference
Four-wheel driveReference
Cab standard with air-conditioning.Reference
Engine
International Harvester 7.6L 6-cyl dieselReference
Fuel tank734.3 LReference
Engine171.5 kWReference
International Harvester DTI466BReference
intercooled turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement7.6 LReference
Bore/Stroke109 x 136 mmReference
Power171.5 kWReference
Rated RPM2400Reference
Oil capacity20.8 LReference
Coolant capacity43.5 LReference
Transmission
10-speedReference
Gears10 forward and 2 reverseReference
PTO & Hydraulics
Typeopen centerReference
Pump flow60.6 lpmReference
Rear TypeIIIReference
Dimensions
Wheelbase299 cmReference
Weight8845 kgReference
Front tire23.1-30Reference
Rear tire23.1-30Reference
Ag front23.1-30Reference
Ag rear23.1-30Reference
Length624 cmReference
Width294 cmReference
Ground clearance32 cmReference
International Harvester 7388 Height
Hood233 cmReference
Cab335 cmReference
Exhaust365 cmReference
Speeds
With 23.1-30 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
