Tractor · 1980Unverified

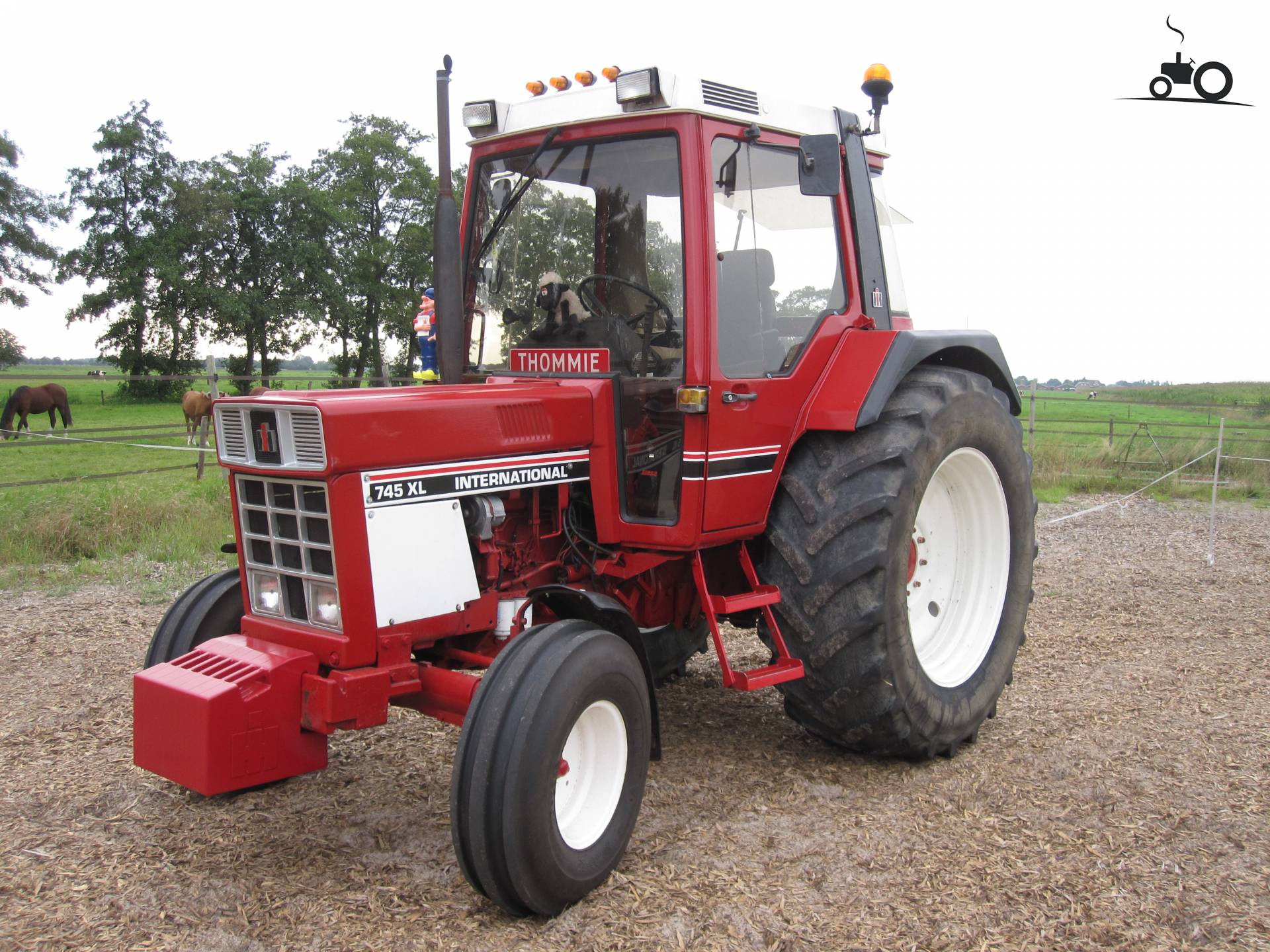

International Harvester 745
International Harvester 745 · 78 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
78 hp
Weight
6724 to 8422 pounds
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
Built in Neuss, GermanyReference
Two- or four-wheel driveReference
Final drivesplanetaryReference
Differential lockmechanical rearReference
Power steeringReference
Four-post ROPS. Cab with heat on 745 XL.Reference
Variants
745SROPSReference
745XLCabReference
Engine
International Harvester 3.9L 4-cyl dieselReference
Fuel tank106.0 LReference
Engine (gross)58.0 kWReference
Engine (net)53.5 kWReference
International Harvester D-239Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke98 x 129 mmReference
Rated Power (net)53.5 kWReference
Power (gross)58.0 kWReference
Rated RPM2300Reference
Torque251.0 NmReference
Torque RPM1600Reference
StarterelectricReference
Starter volts12Reference
Oil capacity9.0 LReference
Oil change200 hReference
Transmission
16-speed two-speed power shiftReference
8-speed gearReference
16-speed creeperReference
TransmissionIH SynchronReference
Typetwo-speed power shiftReference
Gears16 forward and 8 reverseReference
Four gears in two ranges, plus reverse range, with two-speed power shift.Reference
TypegearReference
Gears8 forward and 4 reverseReference
Four gears in two ranges, plus reverse range.Reference
TypecreeperReference
PTO & Hydraulics
PTO (claimed)49.7 kWReference
Pump flow29.9 lpmReference
Rear TypeIIReference
Controlposition and lower-link draft control.Reference
Rear lift3099 kgReference
Rear PTOliveReference
Rear PTO Type540Reference
Rear PTO Type540/1000Reference
Dimensions
2WD Wheelbase222 cmReference
4WD Wheelbase218 cmReference
Weight6724 to 8422 poundsReference
Front tire7.50-18Reference
2WD Rear tire16.9R34Reference
2WD Standard tires (ag)Front: 7.50-18. Rear: 16.9R34Reference
4WD Standard tires (ag)Front: 12.4R24. Rear: 16.9R34Reference
2WD Length376 cmReference
4WD Length381 cmReference
Width203 cmReference
Height (ROPS)254 cmReference
Height (cab)266 cmReference
2WD Ground clearance48 cmReference
4WD Ground clearance40 cmReference
2WD Front tread134 to 182 cmReference
4WD Front tread164 to 181 cmReference
Rear tread157 to 198 cmReference
2WD ROPS3050 kgReference
2WD Cab3430 kgReference
4WD ROPS3440 kgReference
4WD Cab3820 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps33Reference
Battery volts12Reference
Battery AH88Reference
Speeds
With 16.9R34 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
