Tractor · 1985Unverified

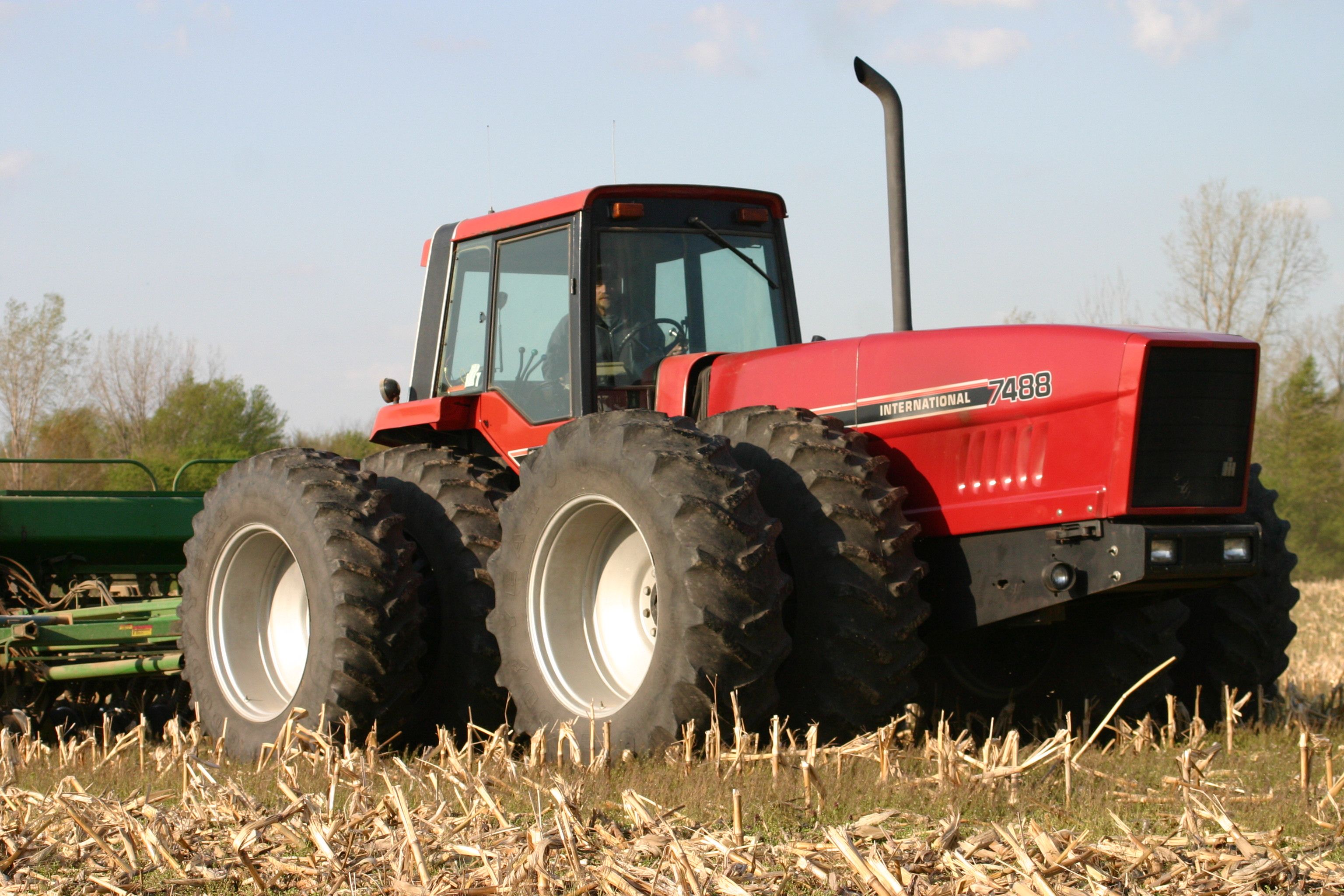

International Harvester 7488
International Harvester 7488 — 70 Series · 200 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
200 hp
Weight
9151 kg
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
Four-wheel Drive (4WD) tractorReference
Built in Rock Island, Illinois, USAReference
Total built16Reference
Four-wheel driveReference
Differential lockhydraulicReference
Articulated power steeringReference
Hydraulic wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
International Harvester 7.6L 6-cyl dieselReference
Engine175.2 kWReference
International Harvester DTI-466CReference
intercooled turbocharged dieselReference
6-cylinderReference
liquid-cooledReference
Displacement7.6 LReference
Bore/Stroke109 x 136 mmReference
Power175.2 kWReference
Air cleanerdual-stage dryReference
Pre-heatingether injectionReference
Rated RPM2400Reference
Idle RPM880-2640Reference
StarterelectricReference
Starter volts12Reference
Oil capacity18.9 LReference
Coolant capacity34.1 LReference
Transmission
18-speed partial power shiftReference
TransmissionTri-SixReference
Typepartial power shiftReference
Gears18 forward and 6 reverseReference
Clutchhydraulic wet discReference
Oil capacity162.8 LReference
The Synchro Tri-Six provides six gears with high, medium, low, and reverse ranges. A power shift exists with gear pairs (1/2, 3/4, 5/6) then the clutch needed to shift between pairs.Reference
PTO & Hydraulics
PTO (claimed)149.1 kWReference
Hydraulic system162.8 LReference
Typeclosed centerReference
Capacity162.8 LReference
Rear valves2 to 4Reference
Pump flow106.0 lpmReference
Total flow325.5 lpmReference
Steering flow45.4 lpmReference
Rear TypeIII/IIReference
Controlposition and draft controlReference
Rear lift4486 kgReference
Rear PTOindependentReference
Rear PTO Type1000Reference
Capacities
Fuel601.8 LReference
Dimensions
Wheelbase293 cmReference
Weight9151 kgReference
Front tire20.8-38Reference
Rear tire20.8-38Reference
Ag front20.8-38Reference
Ag rear20.8-38Reference
Length607 cmReference
Width289 cmReference
Height (exhaust)327 cmReference
Shipping weight9151 kgReference
Clearance (front axle)52 cmReference
Clearance (drawbar)44 cmReference
Front axle101 mmReference
Bar rear axle101 mmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
