Tractor · 1967Unverified

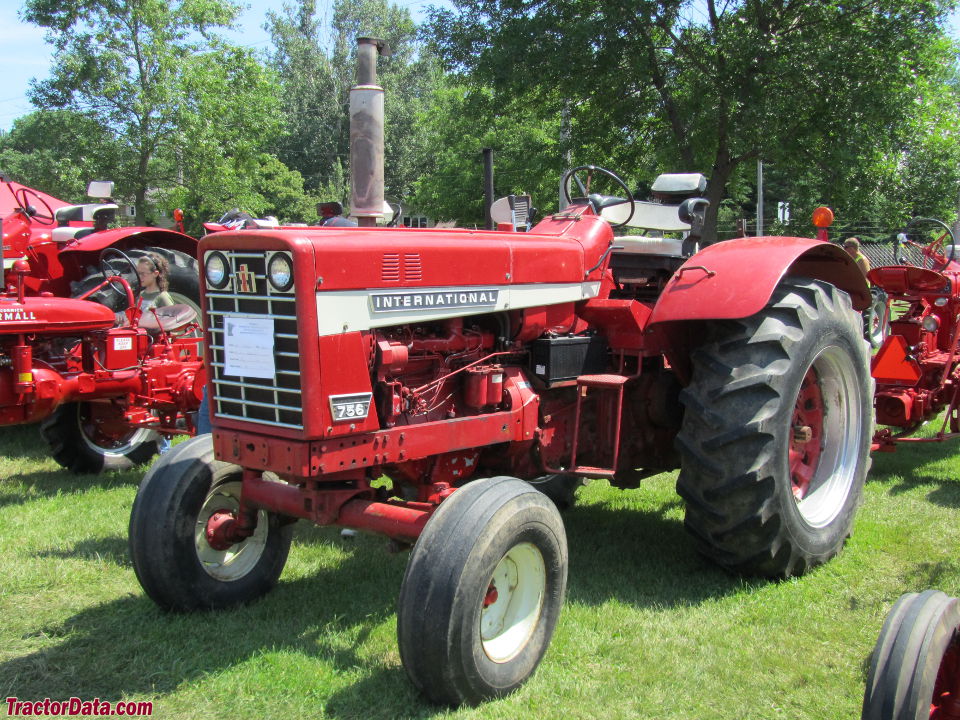

International Harvester 756
International Harvester 756 · 76 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
76 hp
Weight
3810 kg
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
FactoriesGeelong, AustraliaReference
FactoriesRock Island, Illinois, USAReference
Original price was $8,300 in 1971Reference
Two- or four-wheel driveReference
Power steeringReference
Hydraulic dry disc brakesReference
Open operator station. Cab optional.Reference
Variants
Farmall 756row-crop tractorReference
Engine
Interntional Harvester 5.1L 6-cyl dieselReference
International Harvester 4.8L 6-cyl gasolineReference
Fuel tank124.9 LReference
Engine75.3 kWReference
Drawbar (claimed)51.5 kWReference
Interntional Harvester D-310Reference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.1 LReference
Bore/Stroke98 x 111 mmReference
Power75.3 kWReference
Rated RPM2300Reference
Starter volts12Reference
Oil capacity11.4 LReference
Coolant capacity22.2 LReference
International Harvester C-291Reference
gasolineReference
Displacement4.8 LReference
Bore/Stroke95 x 112 mmReference
Oil capacity8.5 LReference
Coolant capacity19.4 LReference
Transmission
16-speed two-speed power shiftReference
TransmissionTorque AmplifierReference
Typetwo-speed power shiftReference
Gears16 forward and 8 reverseReference
Four gears in two ranges, plus reverse range, with two-speed power shift.Reference
PTO & Hydraulics
PTO (claimed)56.7 kWReference
Typeopen centerReference
Pump flow45.4 lpmReference
Rear TypeIIReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2100Reference
Engine RPM1000@2100Reference
Dimensions
Wheelbase256 cmReference
Weight3810 kgReference
Front tire7.50-18Reference
Rear tire18.4-30Reference
Ag front7.50-18Reference
Ag rear18.4-30Reference
Length416 cmReference
Width203 cmReference
Height (steering wheel)208 cmReference
Shipping weight3810 kgReference
Bar rear axle82 by 2032 mmReference
756 Serial Number Location
Clutch housing, left side.Reference
756 Serial Numbers
1967 (Farmall)7501Reference
1968 (Farmall)9904Reference
1969 (Farmall)14125Reference
1970 (Farmall)17832Reference
1971 (Farmall)18374Reference
1967 (IH)7501Reference
1968 (IH)7672Reference
1969 (IH)8164Reference
1970 (IH)8284Reference
1971 (IH)8427Reference
FAQ: How to read a serial number table.Reference
Electrical
Charging systemalternatorReference
Charging amps55Reference
Diesel Batteries2Reference
Gas Batteries1Reference
Diesel Battery volts6Reference
Gas Battery volts12Reference
Diesel Battery AH130Reference
Gas Battery AH60Reference
Speeds
With 18.4-30 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
