Tractor · 1982Unverified

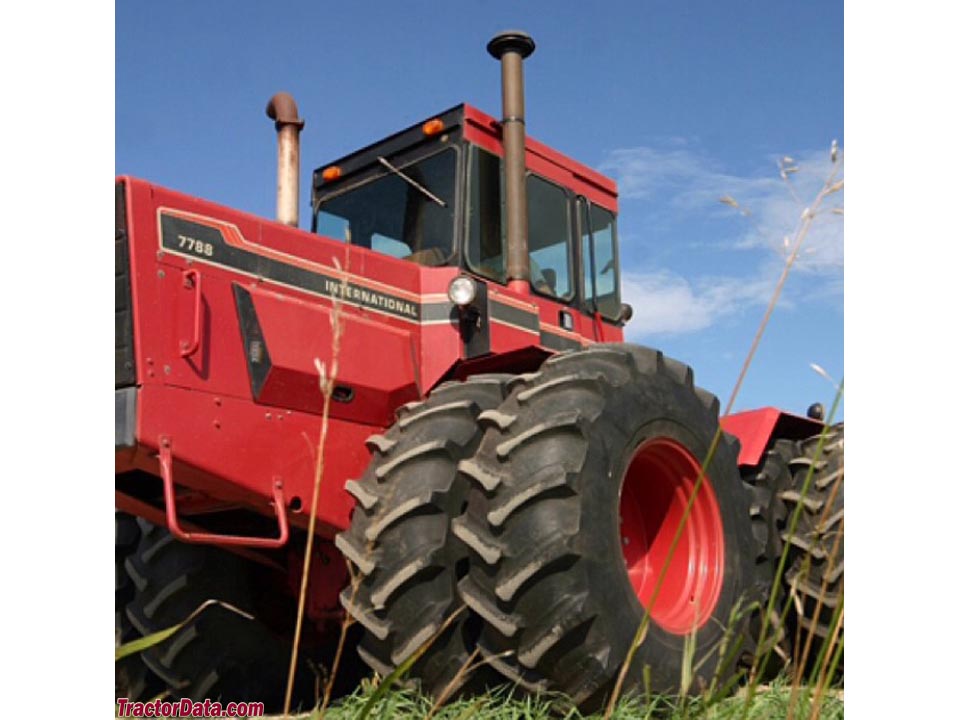

International Harvester 7788
International Harvester 7788 — 70 Series · 265 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
265 hp
Weight
9775 kg
Hover a source tag to verify
Overview
DistributorInternational HarvesterReference
ManufacturerSteigerReference
Four-wheel Drive (4WD) tractorReference
Built in Fargo, North Dakota, USAReference
Total built2Reference
Original price was $93,300 in 1984Reference
Four-wheel driveReference
Cab standard with air-conditioning.Reference
Engine
International Harvester 13.1L 8-cyl dieselReference
Fuel tank734.3 LReference
Engine246.1 kWReference
International Harvester DV-800Reference
turbocharged dieselReference
8-cylinderReference
liquid-cooled V8Reference
Displacement13.1 LReference
Bore/Stroke135 x 114 mmReference
Power246.1 kWReference
Rated RPM2400Reference
Torque983.1 NmReference
Torque RPM1800Reference
Oil capacity28.4 LReference
Coolant capacity65.3 LReference
Transmission
20-speedReference
Gears20 forward and 4 reverseReference
PTO & Hydraulics
PTO (claimed)197.6 kWReference
Typeopen centerReference
Pump flow71.9 lpmReference
Rear TypeIIIReference
Dimensions
Wheelbase299 cmReference
Weight9775 kgReference
Front tire24.5-32Reference
Rear tire24.5-32Reference
Ag front24.5-32Reference
Ag rear24.5-32Reference
Length624 cmReference
Width297 cmReference
Ground clearance39 cmReference
International Harvester 7788 Height
Hood238 cmReference
Cab340 cmReference
Exhaust373 cmReference
Speeds
With 24.5-32 tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
