Tractor · 1981Unverified

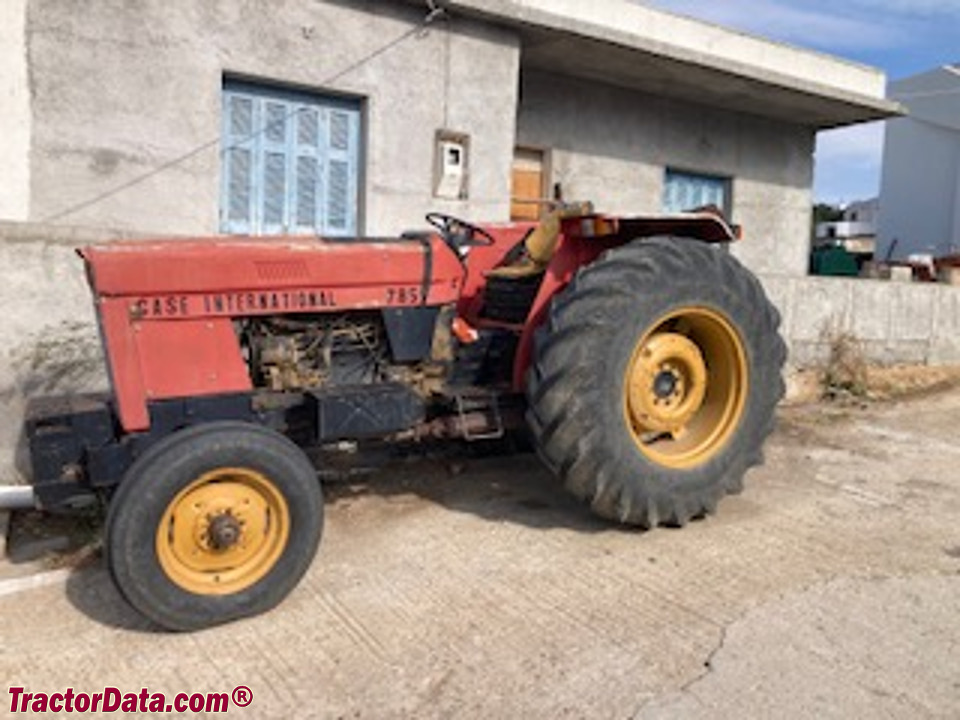

International Harvester 785
International Harvester 785 — 85 Series · 80 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
80 hp
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
Utility tractorReference
Built in Doncaster, EnglandReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard. Economy and Deluxe cabs available.Reference
Engine
International Harvester 4.0L 4-cyl dieselReference
Fuel tank112.0 LReference
Engine (gross)59.7 kWReference
Engine (net)57.7 kWReference
International Harvester D-246Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.0 LReference
Bore/Stroke100 x 129 mmReference
Power (net)57.7 kWReference
Power (gross)59.7 kWReference
Fuel systemdirect injectionReference
Rated RPM2300Reference
Torque356.6 NmReference
Torque RPM1600Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed synchromeshReference
16-speed two-speed power shiftReference
TypesynchromeshReference
Gears8 forward and 4 reverseReference
Four gears (1-4) in two ranges (low/high) plus reverse range.Reference
TransmissionTorque AmplifierReference
Typetwo-speed power shiftReference
Gears16 forward and 8 reverseReference
PTO & Hydraulics
PTO (claimed)50.9 kWReference
Pump flow46.9 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift1995 kgReference
Rear lift2381 kgReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase224 cmReference
Front tire10.00-16Reference
Rear tire16.9-34Reference
2WD Ag front10.00-16Reference
4WD Ag front12.4-24Reference
Ag rear16.9-34Reference
Length374 cmReference
Height264 cmReference
785 Serial Numbers
Location:Serial number plate on right front of tractor frame, above the front axle.Reference
Electrical
GroundnegativeReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
