Tractor · 1980Unverified

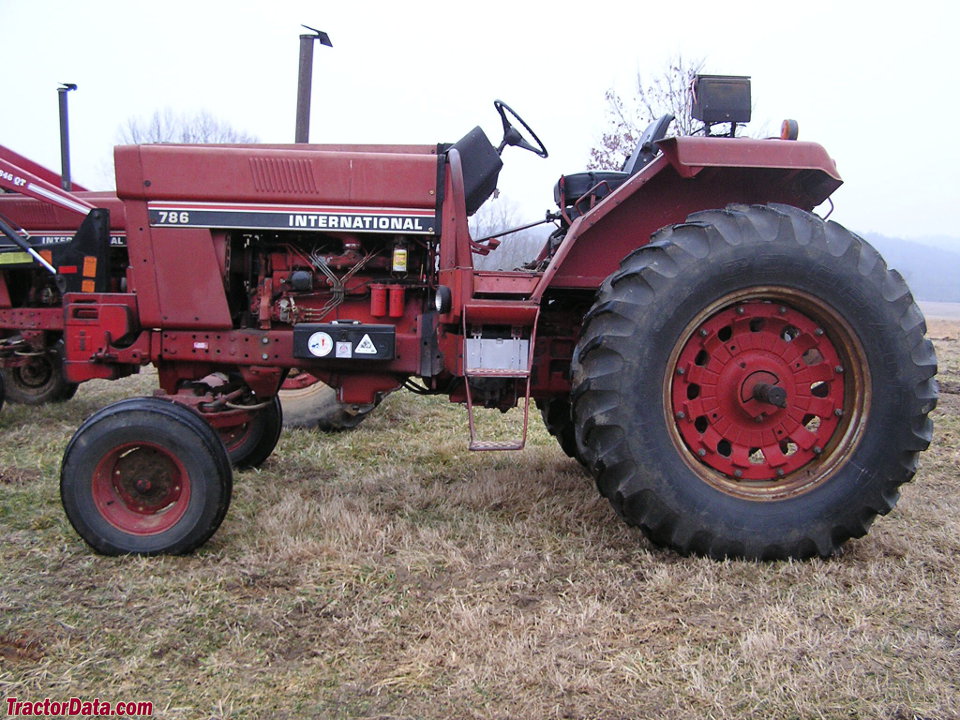

International Harvester 786
International Harvester 786 — 86 Series · 80 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
80 hp
Max power
51.5 kW
Weight
10600 to 11590 pounds
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
Row-Crop tractorReference
Built in Rock Island, Illinois, USAReference
Total built1,844Reference
Two-wheel driveReference
Final drivesbull gearReference
Steeringpower assistReference
Hydraulic disc brakesReference
Open operator station. Cab optional.Reference
Engine
International Harvester 5.9L 6-cyl dieselReference
Drawbar (tested)51.5 kWReference
International Harvester D-358Reference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.9 LReference
Bore/Stroke98 x 129 mmReference
Air cleanerdual dry elementReference
Rated RPM2400Reference
Coolant capacity22.7 LReference
Oil capacity11.4 LReference
Power at rated engine speed59.8 kWReference
Max power51.5 kWReference
Transmission
16-speed two-speed power shiftReference
TransmissionTorque AmplifierReference
Typetwo-speed power shiftReference
Gears16 forward and 8 reverseReference
Oil capacity85.2 LReference
Oil typeIH Hy-Tran/B-6Reference
The tractor must be stopped to shift the transmission (except the TA). The right-most console lever selects range (high, low, or reverse) and the left lever selects one of four gears. The Torque Amplifier (TA) is on the left side of the instrument panel and may be shifted without the clutch. Pulling back engages the TA, reducing the ground speed. Pushing the lever forward puts the transmission in direct drive (DD) mode.Reference
PTO & Hydraulics
PTO (tested)59.8 kWReference
Hydraulic system85.2 LReference
Typeopen centerReference
Capacity85.2 LReference
Rear TypeII/IReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Power at rated PTO speed57.7 kWReference
Capacities
Fuel189.2 LReference
Fuel83.3 LReference
Dimensions
Wheelbase256 cmReference
Weight10600 to 11590 poundsReference
Front tire9.5L-15Reference
Rear tire18.4-34Reference
Ag front9.5L-15Reference
Ag rear18.4-34Reference
Length419 cmReference
Width259 cmReference
Height (ROPS)284 cmReference
Shipping weight4808 kgReference
Operating weight5257 kgReference
Ground clearance33 cmReference
Bar rear axle82 mmReference
786 Serial Numbers
Location:Serial number plate on the right-frame of the tractor frame.Reference
19806601Reference
19818936Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps42Reference
Charging amps61 (with cab)Reference
Batteries2Reference
Battery CCA470Reference
Battery volts12Reference
Test results
Diesel Torque Amplifier 2WDApril 30 - May 11, 1981Link: Nebraska Tractor Test 1388 fileReference
PTO performanceReference
Fuel use20.4 l/hourReference
Fuel use18.5 l/hourReference
Drawbar performanceReference
Gear 1H-TA used for power test.Reference
Max pull4521 kgReference
Gear 2L-DD used for pull test.Reference
Speeds
18.4-34 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
