Tractor · 1969Unverified

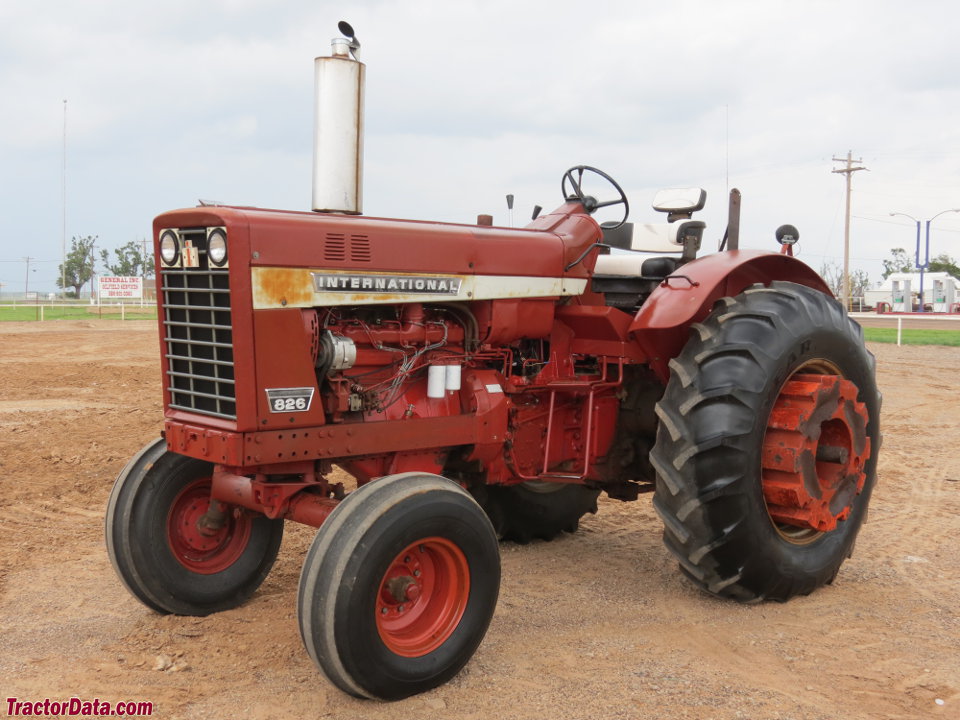

International Harvester 826
International Harvester 826 — Standard-tread tractor · 92 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
92 hp
Max power
58.9 kW
Weight
4472 kg
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
Standard-tread tractorReference
Built in Rock Island, Illinois, USAReference
Total built316Reference
Original price was $9,600 in 1971Reference
Two- or four-wheel driveReference
Final drivesbull gearReference
Differential lockmechanical rearReference
Power steeringReference
Hydraulic dry disc brakesReference
Open operator station. Cab optional.Reference
Variants
International 826standardReference
Farmall 826row-cropReference
International 2826industrialReference
Engine
International Harvester 5.9L 6-cyl dieselReference
International Harvester 4.9L 6-cyl gasolineReference
International Harvester 4.9L 6-cyl LP-gasReference
Fuel tank140.0 LReference
Hydro Drawbar (claimed)45.5 kWReference
Drawbar (tested)58.9 kWReference
International Harvester D-358Reference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.9 LReference
Bore/Stroke98 x 129 mmReference
Air cleanerdual stage dryReference
Compression16:1Reference
Rated RPM2400Reference
StarterelectricReference
Starter volts12Reference
International Harvester C-301Reference
gasolineReference
Displacement4.9 LReference
Bore/Stroke97 x 112 mmReference
LP-gasReference
Coolant capacity35.0 LReference
Power at rated engine speed68.7 kWReference
Max power58.9 kWReference
Power at rated engine speed63.1 kWReference
Max power45.8 kWReference
Transmission
16-speed two-speed power shiftReference
hydrostaticReference
Gear Drawbar (claimed)58.9 kWReference
Gear Operating weight4472 kgReference
TransmissionInternational Harvester Torque AmplifierReference
Typetwo-speed power shiftReference
Gears16 forward and 8 reverseReference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
PTO & Hydraulics
Gear PTO (claimed)68.6 kWReference
Hydro PTO (claimed)62.6 kWReference
PTO (tested)68.7 kWReference
Typeopen centerReference
Rear TypeIIReference
Rear PTOindependentReference
Rear PTO Type1000Reference
Rear PTO Type540/1000Reference
Engine RPM540@2100Reference
Engine RPM1000@2100Reference
Power at rated PTO speed63.6 kWReference
Power at rated PTO speed58.9 kWReference
Dimensions
Wheelbase266 cmReference
Weight4472 kgReference
Front tire9.5L-15Reference
Rear tire18.4-34Reference
Ag front9.5L-15Reference
Ag rear18.4-34Reference
Ballasted weight6277 kgReference
Bar rear axle82 mmReference
826 Serial Number Location
Clutch housing, left sideReference
826 Serial Numbers
19697501 (Farmall)Reference
19708153 (Farmall)Reference
197116352 (Farmall)Reference
19697501 (IH)Reference
19707518 (IH)Reference
19717719 (IH)Reference
FAQ: How to read a serial number table.Reference
Electrical
Charging systemalternatorReference
Batteries2 (diesel)Reference
Batteries1 (gas/LP)Reference
Battery volts6 (diesel)Reference
Battery volts1 (gas/LP)Reference
Test results
NTTL 1045: D358 diesel Torque Amplifier 2WDReference
NTTL 1046: D358 diesel hydrostatic 2WDReference
D358 diesel Torque Amplifier 2WDJune 3 - 27, 1970Link: Nebraska Tractor Test 1045 fileReference
PTO performanceReference
Fuel use23.5 l/hourReference
Fuel use3.8 l/hourReference
Drawbar performanceReference
Gear 1-Hi-TA used for power test.Reference
Max pull4368 kgReference
Gear 3-Lo-TA used for pull test.Reference
D358 diesel hydrostatic 2WDJune 6 - 27, 1970Link: Nebraska Tractor Test 1046 fileReference
Fuel use23.8 l/hourReference
Fuel use21.2 l/hourReference
Fuel use23.1 l/hourReference
Max pull3982 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
