International Harvester 833 E

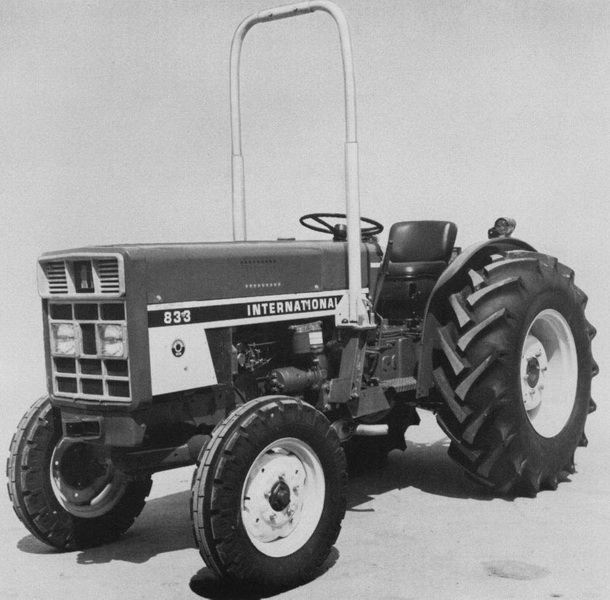

International Harvester 833 E — Orchard/Vineyard tractor · 67 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
67 hp
Weight
4464 to 4674 pounds
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
Orchard/Vineyard tractorReference
Two- or four-wheel driveReference
2WD SteeringmanualReference
4WD SteeringpowerReference
Two-post mid-mount foldable ROPS. Cab optional.Reference
Variants
833utilityReference
833EnarrowReference
Engine
International Harvester 3.9L 4-cyl dieselReference
Fuel tank60.0 LReference
Engine50.0 kWReference
International Harvester D-239Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke98 x 129 mmReference
Power50.0 kWReference
Rated RPM2180Reference
Torque235.0 NmReference
Torque RPM1500Reference
StarterelectricReference
Starter volts12Reference
Oil capacity9.0 LReference
Coolant capacity16.1 LReference
Transmission
8-speedReference
16-speedReference
16-speed creeperReference
Gears8 forward and 4 reverseReference
TransmissionSynchronReference
Gears16 forward and 8 reverseReference
TypecreeperReference
PTO & Hydraulics
Rear TypeII/IReference
Rear PTO Type540Reference
Rear PTO Type540/1000Reference
Dimensions
2WD Wheelbase203 cmReference
4WD Wheelbase209 cmReference
Weight4464 to 4674 poundsReference
Front tire5.50-16Reference
2WD Rear tire13.6R28Reference
2WD Standard tires (ag)Front: 5.50-16. Rear: 13.6R28Reference
4WD Standard tires (ag)Front: 7.50-18. Rear: 13.6R28Reference
Length342 cmReference
Width133 cmReference
Height (ROPS)246 cmReference
2WD Shipping weight2024 kgReference
4WD Shipping weight2120 kgReference
2WD Ground clearance40 cmReference
4WD Ground clearance35 cmReference
Front tread107 to 165 cmReference
Rear tread101 to 162 cmReference
Electrical
Charging systemalternatorReference
Charging amps33Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
