Tractor · 1974Unverified

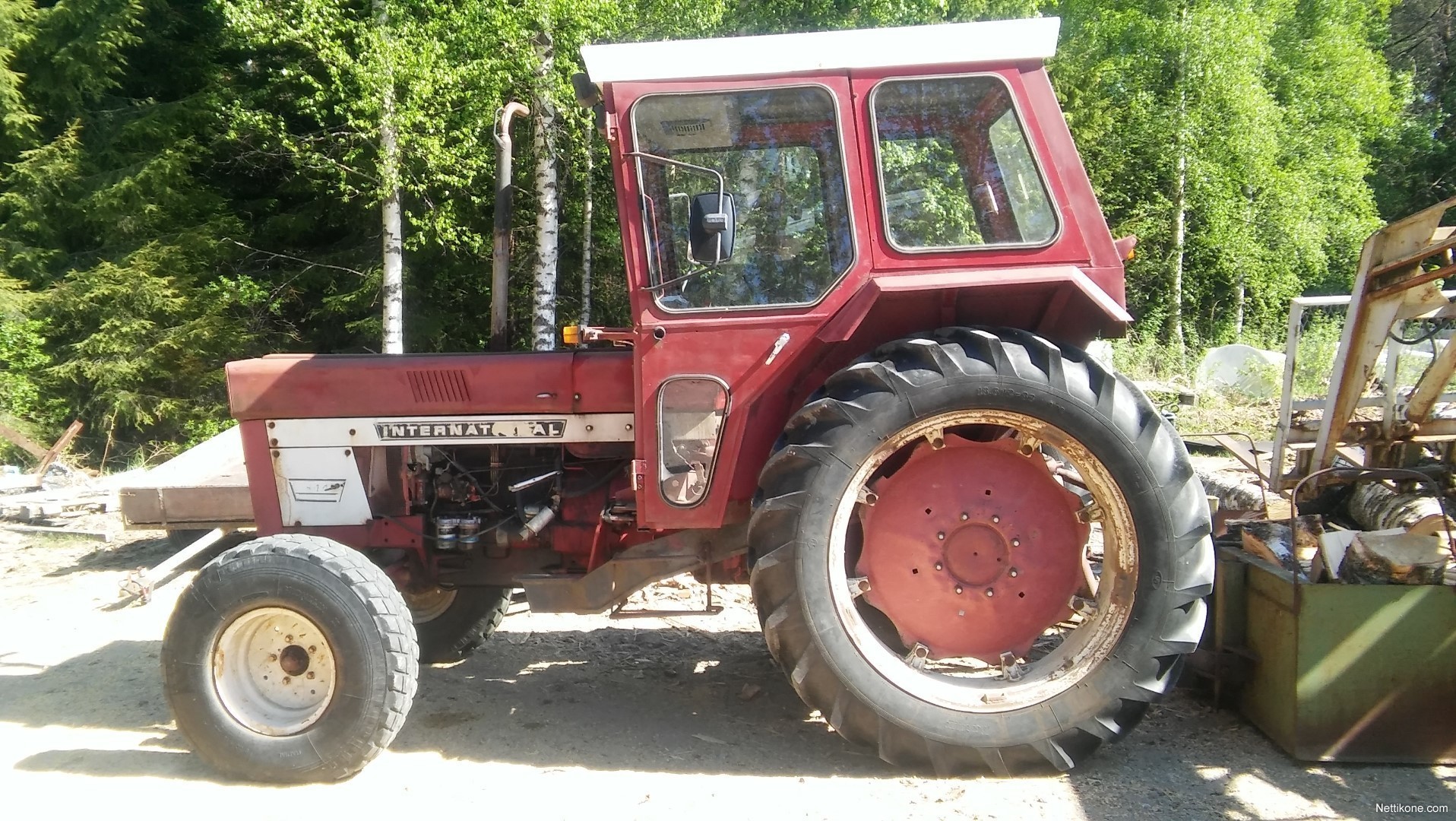

International Harvester 844
International Harvester 844 — Row-Crop tractor · 60 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
60 hp
Weight
2859 kg
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
Row-Crop tractorReference
Built in Neuss, GermanyReference
Two- or four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Open operator station. ROPS optional.Reference
Engine
International Harvester 4.0L 4-cyl dieselReference
Engine55.0 kWReference
International Harvester D-246Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.0 LReference
Bore/Stroke100 x 129 mmReference
Power55.0 kWReference
Rated RPM2300Reference
Torque257.9 NmReference
Torque RPM1500Reference
Starter volts12Reference
Starter power3.0 kWReference
Oil capacity9.1 LReference
Coolant capacity19.3 LReference
Transmission
8-speedReference
12-speed partial power shiftReference
16-speedReference
Gears8 forward and 4 reverseReference
Oil capacity42.0 LReference
TransmissionAgriomatic SReference
Typepartial power shiftReference
Gears12 forward and 4 reverseReference
Oil capacity35.2 LReference
Gears16 forward and 8 reverseReference
PTO & Hydraulics
PTO (claimed)44.7 kWReference
Hydraulic system18.2 LReference
Capacity18.2 LReference
Pump flow29.9 lpmReference
Rear TypeIIReference
Rear lift3150 kgReference
Rear PTO Type540Reference
Rear PTO Type540/1000Reference
Engine RPM540@1920Reference
Capacities
Fuel102.2 LReference
Dimensions
Wheelbase239 cmReference
Weight2859 kgReference
Front tire7.50x16Reference
Rear tire16.9/14x30Reference
Ag front7.50x16Reference
Ag rear16.9/14x30Reference
Ag front7.50x18Reference
Ag rear13.6/12x38Reference
Ag rear15.5x38Reference
Ag rear16.9/14x34Reference
Ag rear18.4/15x34Reference
Ag rear18.4/15x30Reference
Length392 cmReference
Width203 cmReference
Height (steering wheel)182 cmReference
Ground clearance50 cmReference
Electrical
Charging systemalternatorReference
Charging amps28Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
