Tractor · 1978Unverified

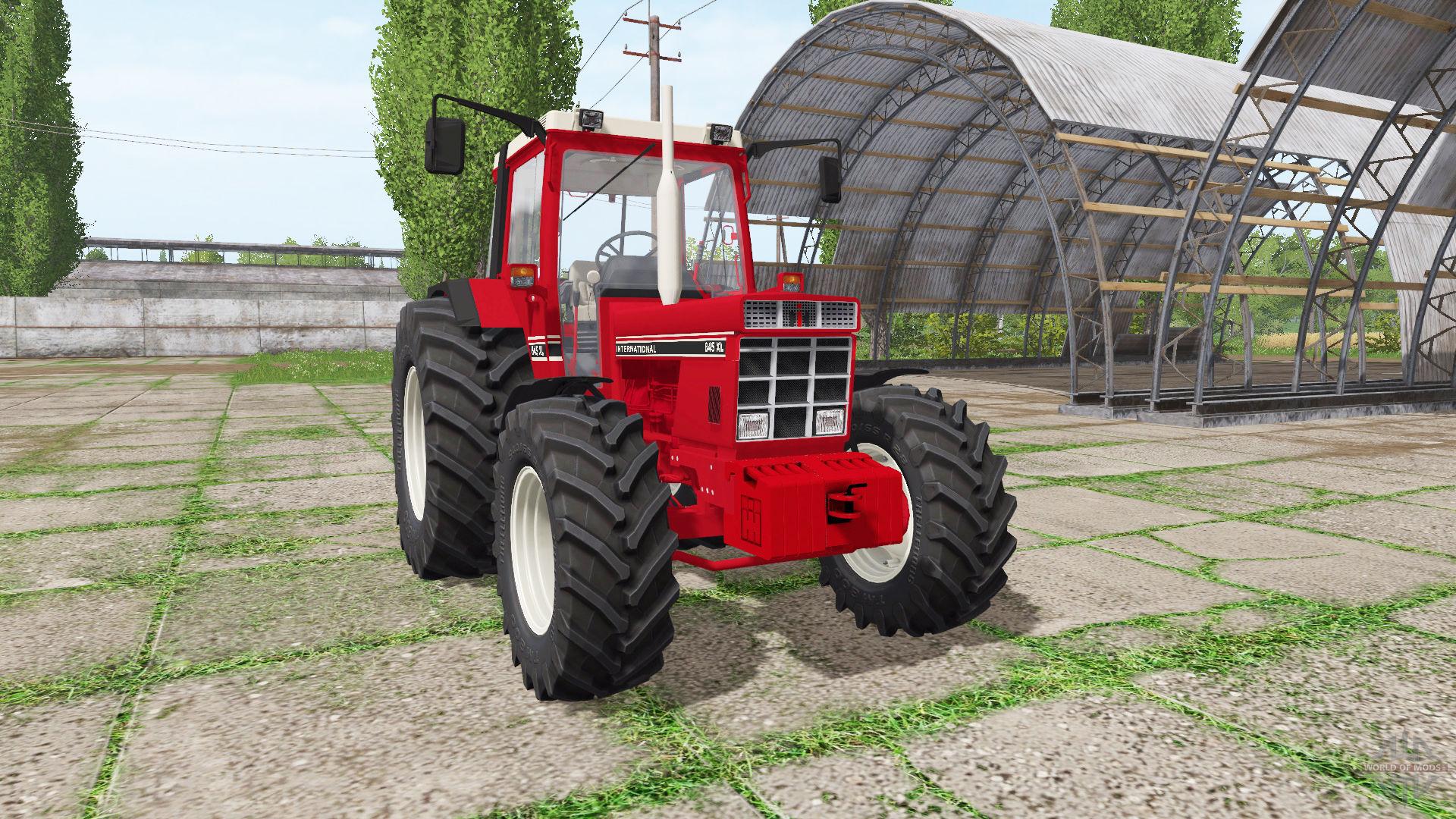

International Harvester 845
International Harvester 845 — Row-Crop tractor · 86 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
86 hp
Weight
6923 to 7828 pounds
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
Row-Crop tractorReference
Built in Saint Dizier, FranceReference
Two- or four-wheel driveReference
Final drivesplanetaryReference
Differential lockmechanical rearReference
Power steeringReference
Engine
International Harvester 4.4L 4-cyl dieselReference
Engine (gross)64.1 kWReference
Engine (net)58.9 kWReference
International Harvester D-268Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke100 x 140 mmReference
Rated Power (net)58.9 kWReference
Power (gross)64.1 kWReference
Rated RPM2300Reference
Idle RPM650-2490Reference
Torque294.3 NmReference
Torque RPM1400Reference
Firing order1-3-4-2Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed partially synchronizedReference
12-speed partial power shiftReference
16-speed partially synchronizedReference
16-speed creeperReference
TransmissionSynchronReference
Typepartially synchronizedReference
Gears8 forward and 4 reverseReference
Clutch280mm dry discReference
Oil capacity34.8 LReference
Four gears (1-4) in each of two ranges (L-H), plus reverse (R) range. Older tractors have two low range positions while newer models only have one.Reference
TransmissionAgriomatic SReference
Typepartial power shiftReference
Gears12 forward and 4 reverseReference
Oil capacity29.1 LReference
Four gears in two ranges with the Agriomatic power shift.Reference
Gears16 forward and 8 reverseReference
Four gears in two ranges, plus reverse, with an additional two-range shift.Reference
TypecreeperReference
PTO & Hydraulics
PTO (claimed)54.0 kWReference
Pump flow29.9 lpmReference
Rear TypeIIReference
Rear lift3099 kgReference
Rear PTO Type540/1000 (1.375)Reference
Dimensions
2WD Wheelbase237 cmReference
4WD Wheelbase233 cmReference
Weight6923 to 7828 poundsReference
Front tire7.50-18Reference
2WD Rear tire16.9/14-34Reference
2WD Standard tires (ag)Front: 7.50-18. Rear: 16.9/14-34Reference
4WD Standard tires (ag)Front: 12.4-24. Rear: 16.9/14-34Reference
2WD Length363 cmReference
4WD Length369 cmReference
Width199 cmReference
Height (cab)258 cmReference
Height (exhaust)183 cmReference
2WD Shipping weight3140 kgReference
4WD Shipping weight3550 kgReference
2WD Ground clearance46 cmReference
4WD Ground clearance36 cmReference
2WD Front tread135 to 178 cmReference
4WD Front tread150 to 180 cmReference
Rear tread137 to 198 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps33Reference
Battery volts12Reference
Battery AH110Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
