Tractor · 1981Unverified

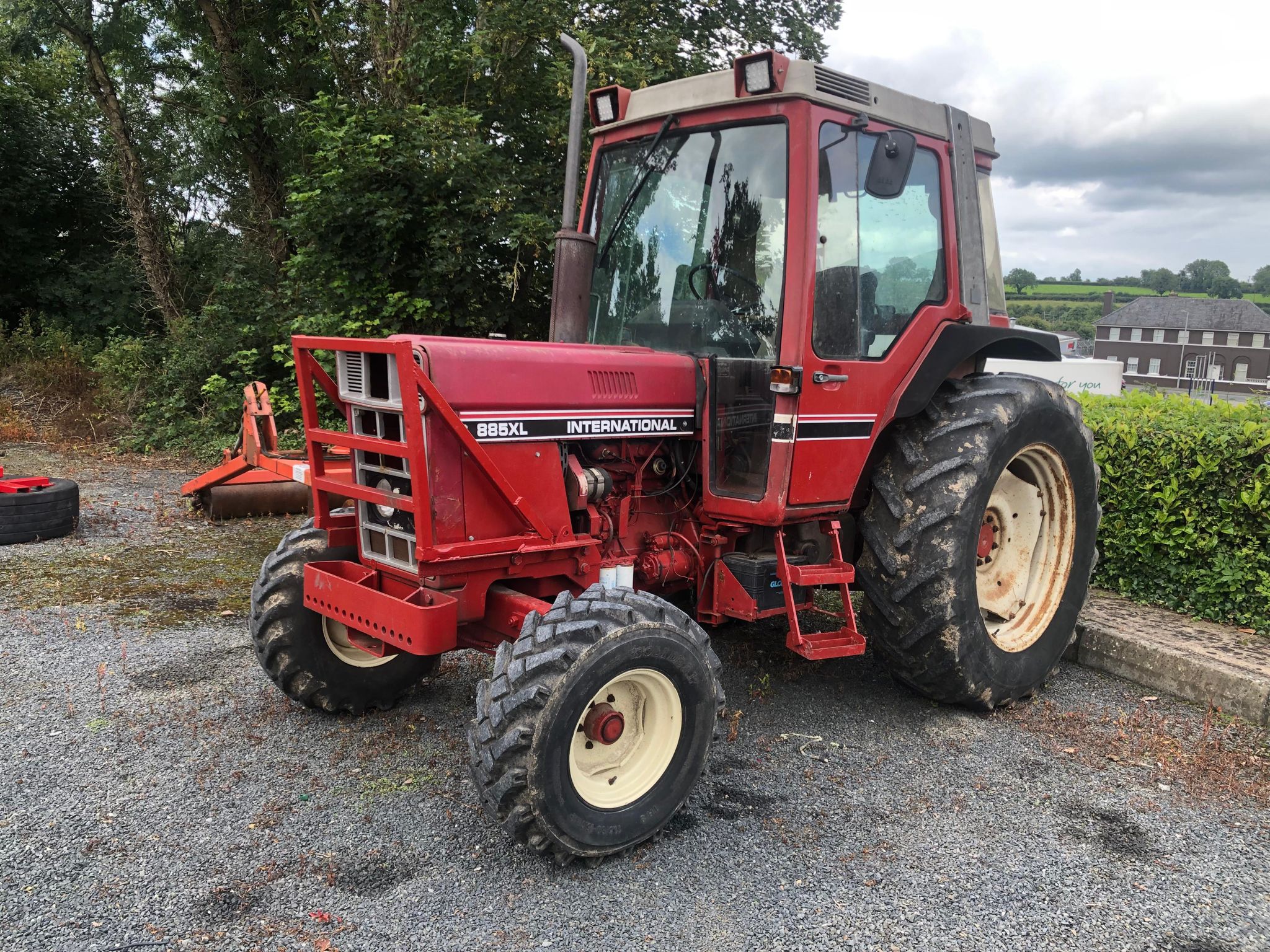

International Harvester 885
International Harvester 885 — 85 Series · 85 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
85 hp
Weight
7364 to 7849 pounds
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
Utility tractorReference
Built in Doncaster, EnglandReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Cab standard. Economy and Deluxe cabs available.Reference
Engine
International Harvester 4.4L 4-cyl dieselReference
Fuel tank112.0 LReference
Engine (gross)63.4 kWReference
Engine (net)61.2 kWReference
International Harvester D-268Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke100 x 140 mmReference
Power (net)61.2 kWReference
Power (gross)63.4 kWReference
Fuel systemdirect injectionReference
Rated RPM2400Reference
Torque287.5 NmReference
Torque RPM1600Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed synchromeshReference
16-speed two-speed power shiftReference
TypesynchromeshReference
Gears8 forward and 4 reverseReference
Four gears (1-4) in two ranges (low/high) plus reverse range.Reference
TransmissionTorque AmplifierReference
Typetwo-speed power shiftReference
Gears16 forward and 8 reverseReference
PTO & Hydraulics
PTO (claimed)53.7 kWReference
Pump flow46.9 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift2381 kgReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase216 cmReference
Weight7364 to 7849 poundsReference
Front tire10.00-16Reference
Rear tire16.9-34Reference
2WD Ag front10.00-16Reference
4WD Ag front12.4-24Reference
Ag rear16.9-34Reference
Length374 cmReference
Height264 cmReference
2WD Weight3340 kgReference
4WD Weight3560 kgReference
Bar rear axle69 mmReference
885 Serial Numbers
Location:Serial number plate on right front of tractor frame, above the front axle.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
