Tractor · 1976Unverified

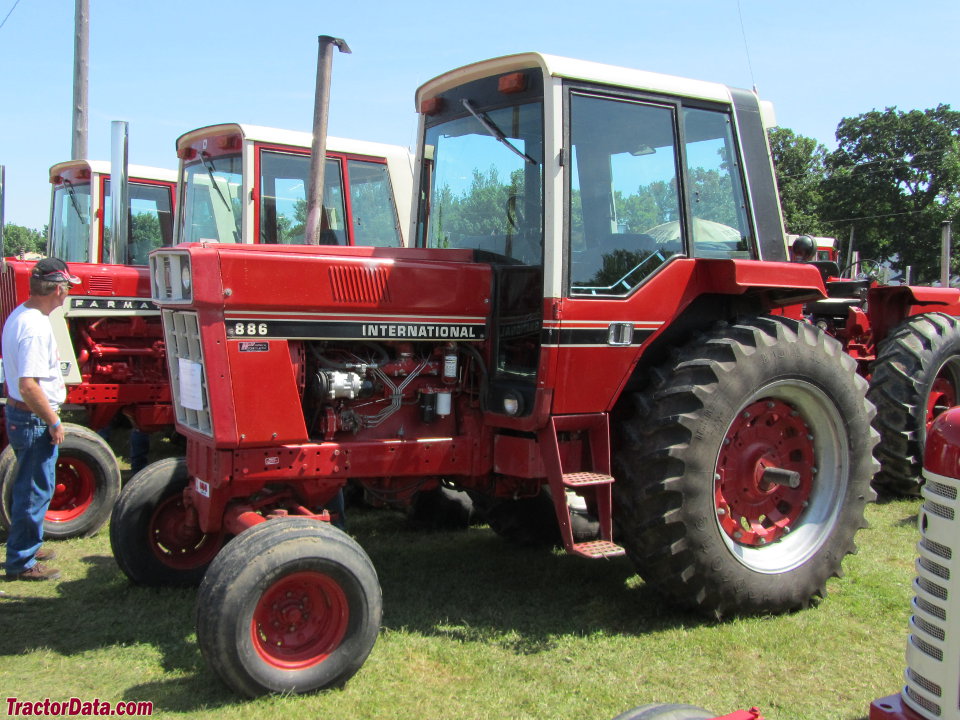

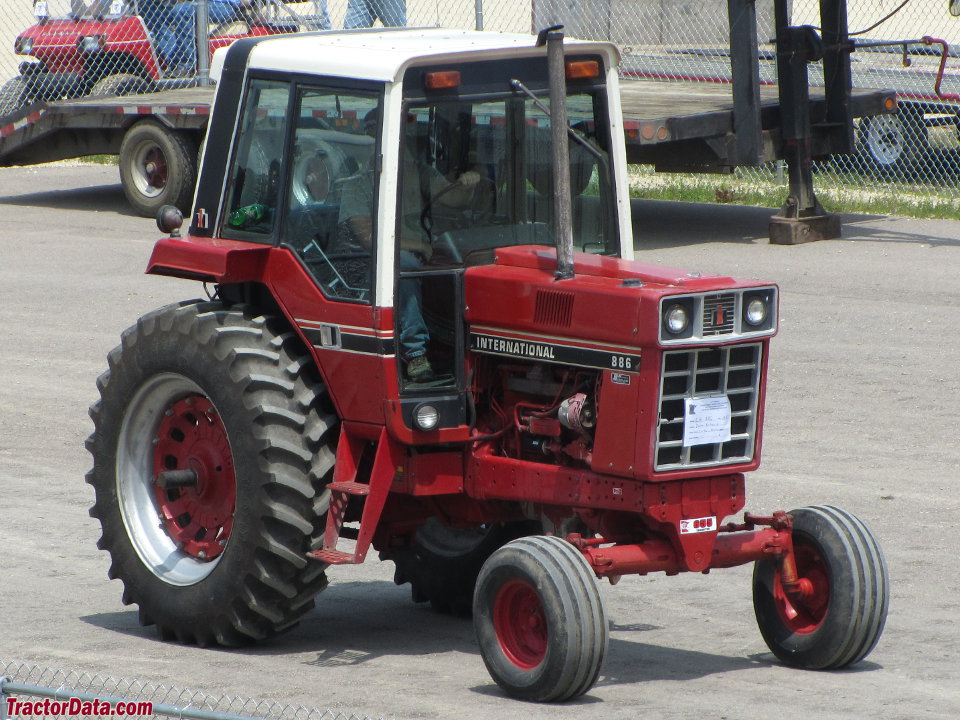

International Harvester 886
International Harvester 886 — 86 Series · 86 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
86 hp
Max power
54.5 kW
Weight
4989 kg
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
Row-Crop tractorReference
Built in Rock Island, Illinois, USAReference
Total built9,578Reference
Original price was $27,500 in 1981Reference
Two- or four-wheel driveReference
Final drivesbull gearReference
Steeringpower assistReference
Hydraulic wet disc brakesReference
Cab standard with air-conditioning. Open operator station and four-post ROPS available.Reference
Engine
International Harvester 5.9L 6-cyl dieselReference
Drawbar (claimed)55.2 kWReference
Drawbar (tested)58.0 kWReference
International Harvester D-360Reference
dieselReference
6-cylinderReference
liquid-cooledReference
The D360 engine was used in the 886 until 1979, serial number 14471.Reference
Displacement5.9 LReference
Bore/Stroke98 x 129 mmReference
Air cleanerdual dry elementReference
Rated RPM2400Reference
Starter volts12Reference
Coolant capacity22.7 LReference
Oil capacity11.4 LReference
International Harvester D-358Reference
The IH 886 tractor switched to the D-358 engine in 1979, serial number 14472.Reference
Displacement5.9 LReference
Bore/Stroke98 x 129 mmReference
Compression14.8:1Reference
Power at rated engine speed64.2 kWReference
Max power54.5 kWReference
Power at rated engine speed64.6 kWReference
Max power56.0 kWReference
Power at rated engine speed67.5 kWReference
Max power58.0 kWReference
Transmission
16-speed two-speed power shiftReference
TransmissionTorque AmplifierReference
Typetwo-speed power shiftReference
Gears16 forward and 8 reverseReference
Oil capacity85.2 LReference
Oil typeIH Hy-Tran/B-6Reference
The transmission features three ranges (low, high, and reverse) with four gears (1-4) in each range. The Torque Amplifier (TA) provides an additional high/low selection for each speed. The range and gear can be shifted only when the tractor is stopped. The TA can be shifted while the tractor is in motion.Reference
PTO & Hydraulics
PTO (claimed)63.4 kWReference
PTO (tested)67.5 kWReference
Hydraulic system85.2 LReference
Typeopen centerReference
Capacity85.2 LReference
Rear TypeIIReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Power at rated PTO speed62.0 kWReference
Power at rated PTO speed62.6 kWReference
Power at rated PTO speed65.8 kWReference
Capacities
Fuel189.2 LReference
Fuel83.3 LReference
Dimensions
Wheelbase266 cmReference
Wheelbase256 cmReference
Wheelbase251 cmReference
Weight4989 kgReference
Front tire10.00-16Reference
Rear tire18.4-38Reference
Ag front10.00-16Reference
Ag rear18.4-38Reference
Length419 cmReference
Length414 cmReference
Width259 cmReference
Height (cab)284 cmReference
Shipping weight4989 kgReference
Ground clearance33 cmReference
Bar rear axle82 mmReference
886 Serial Numbers
Location:Rear frame on right sideReference
19768601Reference
197710010Reference
197812455Reference
197914414Reference
198015985Reference
198117406Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps42Reference
Charging amps61 (with cab)Reference
Batteries2Reference
Battery CCA470Reference
Battery volts12Reference
Test results
NTTL 1254: 360 diesel Torque Amplifier 2WDReference
NTTL 1338: 358 diesel Torque Amplifier 2WDReference
NTTL 1339: 358 diesel Torque Amplifier 2WDReference
360 diesel Torque Amplifier 2WDSeptember 15 - 23, 1977Link: Nebraska Tractor Test 1254 fileReference
PTO performanceReference
Fuel use23.8 l/hourReference
Fuel use22.0 l/hourReference
Drawbar performanceReference
Fuel use23.5 l/hourReference
Gear 4-Low-Direct used for power test.Reference
Max pull4755 kgReference
Gear 2-Low-Direct used for pull test.Reference
358 diesel Torque Amplifier 2WDMarch 26 - April 10, 1980Link: Nebraska Tractor Test 1338 fileReference
Fuel use19.7 l/hourReference
Gear 1-Hi-TA used for power test.Reference
Max pull4902 kgReference
358 diesel Torque Amplifier 2WDApril 10 - 18, 1980Link: Nebraska Tractor Test 1339 fileReference
Fuel use23.1 l/hourReference
Fuel use21.2 l/hourReference
Max pull4957 kgReference
Speeds
18.4-34 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
