Tractor · 1981Unverified

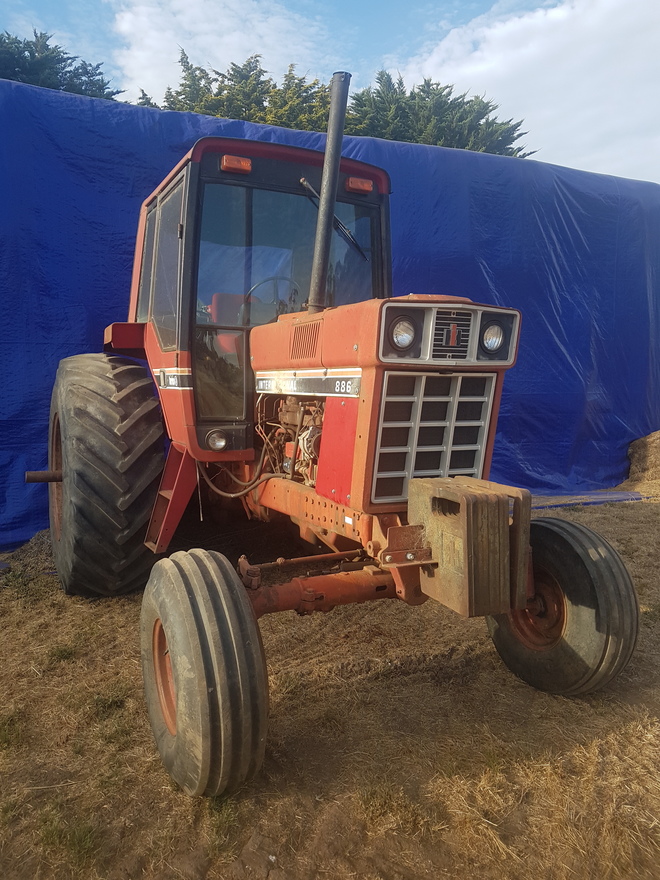

International Harvester 886B
International Harvester 886B — 86B Series · 96 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
96 hp
Weight
5469 kg
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
Row-Crop tractorReference
Built in Geelong, AustraliaReference
Total built432Reference
Two-wheel driveReference
Cab standard.Reference
Engine
International Harvester 5.9L 6-cyl dieselReference
Engine90.2 kWReference
Drawbar (claimed)64.1 kWReference
International Harvester D-358Reference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.9 LReference
Bore/Stroke98 x 129 mmReference
Power90.2 kWReference
Fuel systemdirect injectionReference
Rated RPM2500Reference
Torque350.1 NmReference
Torque RPM1600Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed two-speed power shiftReference
TransmissionInternational Harvester Torque AmplifierReference
Typetwo-speed power shiftReference
Gears16 forward and 8 reverseReference
PTO & Hydraulics
PTO (claimed)71.6 kWReference
Hydraulic system85.2 LReference
Capacity85.2 LReference
Rear valves2Reference
Rear TypeIIIReference
Rear lift (at ends)2844 kgReference
Rear PTO Type540/1000Reference
Dimensions
Weight5469 kgReference
Front tire11.00-16Reference
Rear tire23.1-34Reference
Standard tires (ag)Front: 11.00-16. Rear: 23.1-34Reference
Length405 cmReference
Width258 cmReference
Shipping weight5469 kgReference
Ground clearance53 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
