Tractor · 1971Unverified

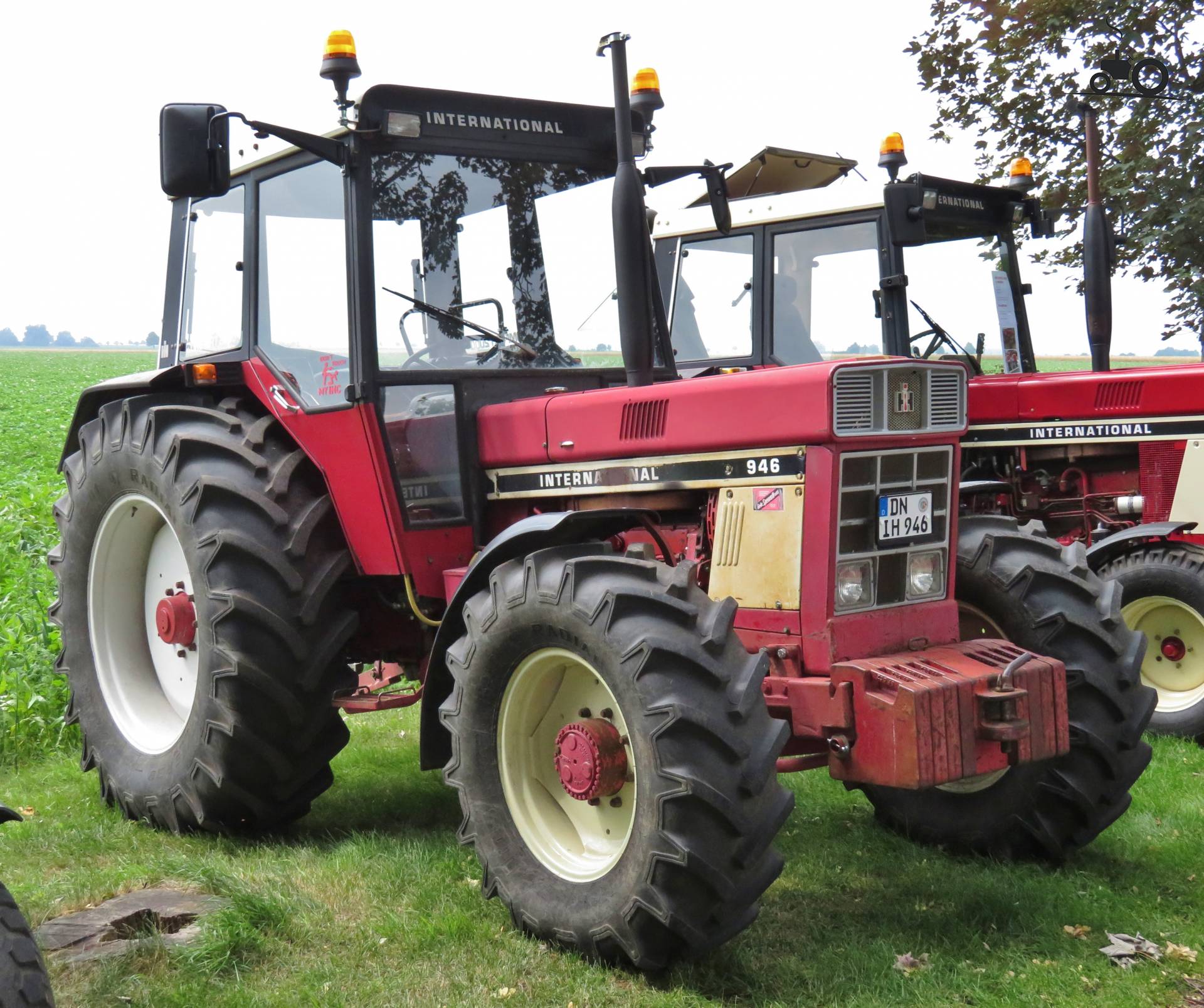

International Harvester 946
International Harvester 946 · 85 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
85 hp
Weight
3850 kg
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
Built in Neuss, GermanyReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD optionalReference
Engine
International Harvester 5.1L 6-cyl dieselReference
Fuel tank110.1 LReference
Engine63.4 kWReference
International HarvesterReference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.1 LReference
Bore/Stroke98 x 111 mmReference
Power63.4 kWReference
Rated RPM2100Reference
Transmission
12-speedReference
16-speedReference
Gears12 forward and 5 reverseReference
Gears16 forward and 7 reverseReference
PTO & Hydraulics
Pump flow37.9 lpmReference
Rear lift3000 kgReference
Rear PTO Type540, 1000Reference
Dimensions
Wheelbase265 cmReference
Weight3850 kgReference
Front tire7.50-18Reference
Rear tire16.9-34Reference
Ag front7.50-18Reference
Ag front11.2-24 (MFWD)Reference
Ag rear16.9-34Reference
Length399 cmReference
Height265 cmReference
Weight3850 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
