Tractor · 1982Unverified

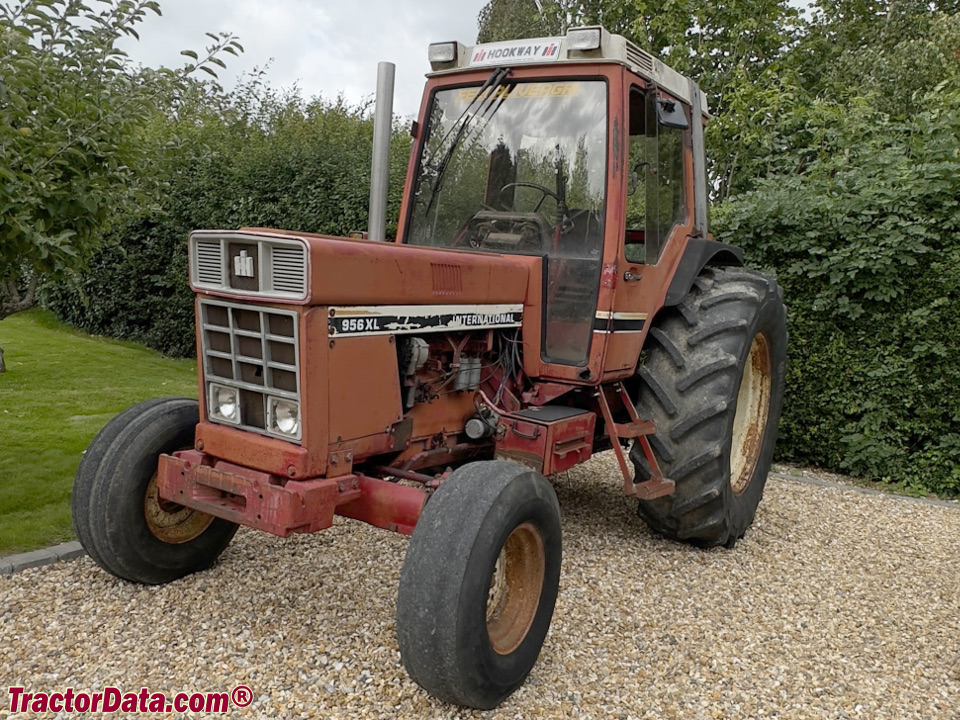

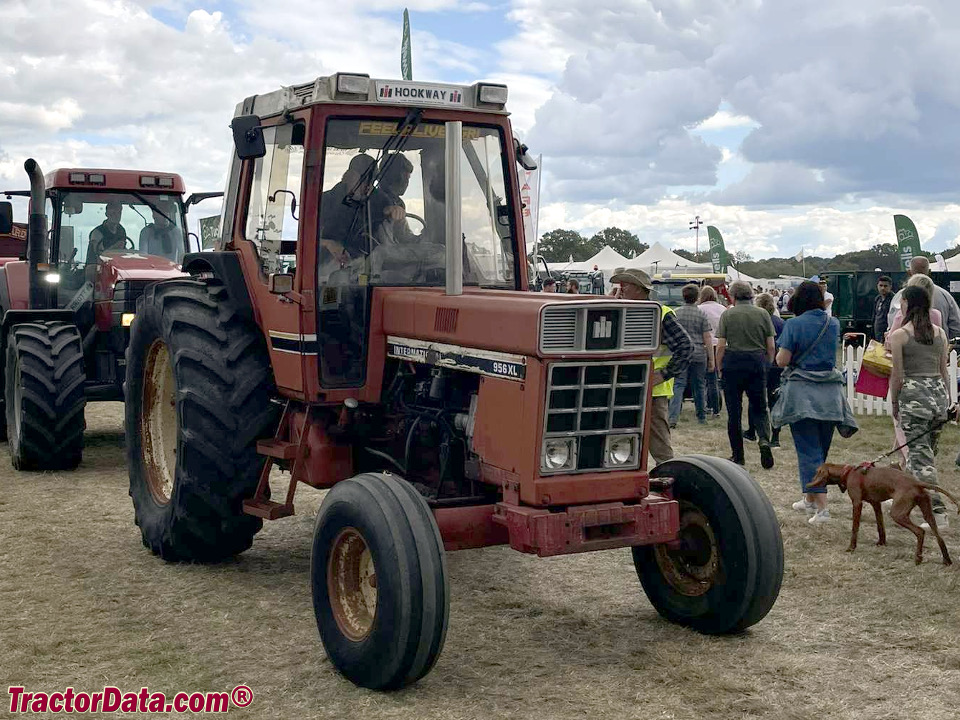

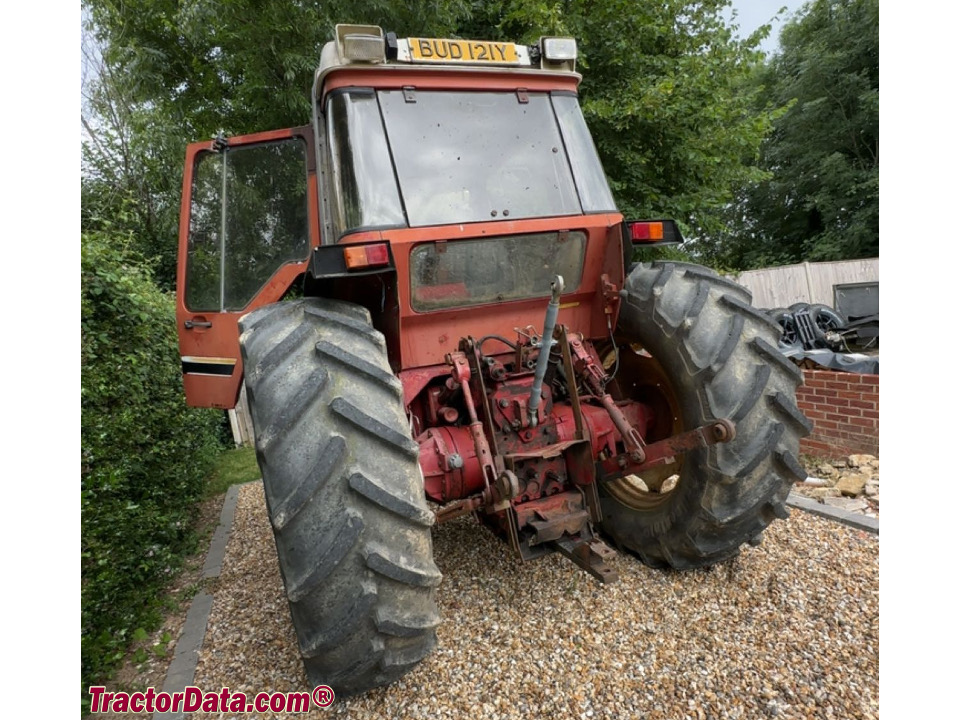

International Harvester 956
International Harvester 956 — 56XL Series · 95 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
95 hp
Weight
9458 to 10538 pounds
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
Row-Crop tractorReference
Built in Neuss, GermanyReference
Two- or four-wheel driveReference
Final drivesplanetaryReference
Differential lockmechanical rearReference
Power steeringReference
Four-post ROPS. Standard cab and deluxe XL cab optional.Reference
Variants
956XLdeluxe cabReference
Engine
International Harvester 5.9L 6-cyl dieselReference
Engine (net)70.8 kWReference
International Harvester D-358Reference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.9 LReference
Bore/Stroke98 x 129 mmReference
Power (net)70.8 kWReference
Fuel systemdirect injectionReference
Air cleanerdryReference
Rated RPM2200Reference
Torque339.0 NmReference
Torque RPM1400Reference
Starter volts12Reference
Oil capacity12.0 LReference
Coolant capacity24.0 LReference
Transmission
16-speed two-speed power shiftReference
Typetwo-speed power shiftReference
Gears16 forward and 8 reverseReference
Clutch310mm cerametallic discReference
PTO & Hydraulics
PTO (claimed)67.9 kWReference
Hydraulic system46.2 LReference
Typeopen centerReference
Capacity46.2 LReference
Pressure161.8 barReference
Pump flow42.0 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift (at ends)4159 kgReference
Rear lift (at ends)5000 kgReference
Rear PTOindependentReference
Clutch310mm dry discReference
Rear PTO Type540/1000Reference
Engine RPM540@1920Reference
Engine RPM1000@2000Reference
Capacities
Fuel140.0 LReference
Dimensions
2WD Wheelbase262 cmReference
4WD Wheelbase258 cmReference
Weight9458 to 10538 poundsReference
Front tire10.00-16Reference
2WD Rear tire16.9R38Reference
2WD Standard tires (ag)Front: 10.00-16. Rear: 16.9R38Reference
4WD Standard tires (ag)Front: 12.4R28. Rear: 16.9R38Reference
2WD Length419 cmReference
4WD Length422 cmReference
Width231 cmReference
Height (cab)274 cmReference
2WD Cab Weight4290 kgReference
4WD Cab Weight4780 kgReference
4WD Clearance (front axle)38 cmReference
2WD Front tread149 to 180 cmReference
4WD Front tread162 to 190 cmReference
Rear tread170 to 220 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps55Reference
Battery volts12Reference
Battery AH110Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
