Tractor · 1979Unverified

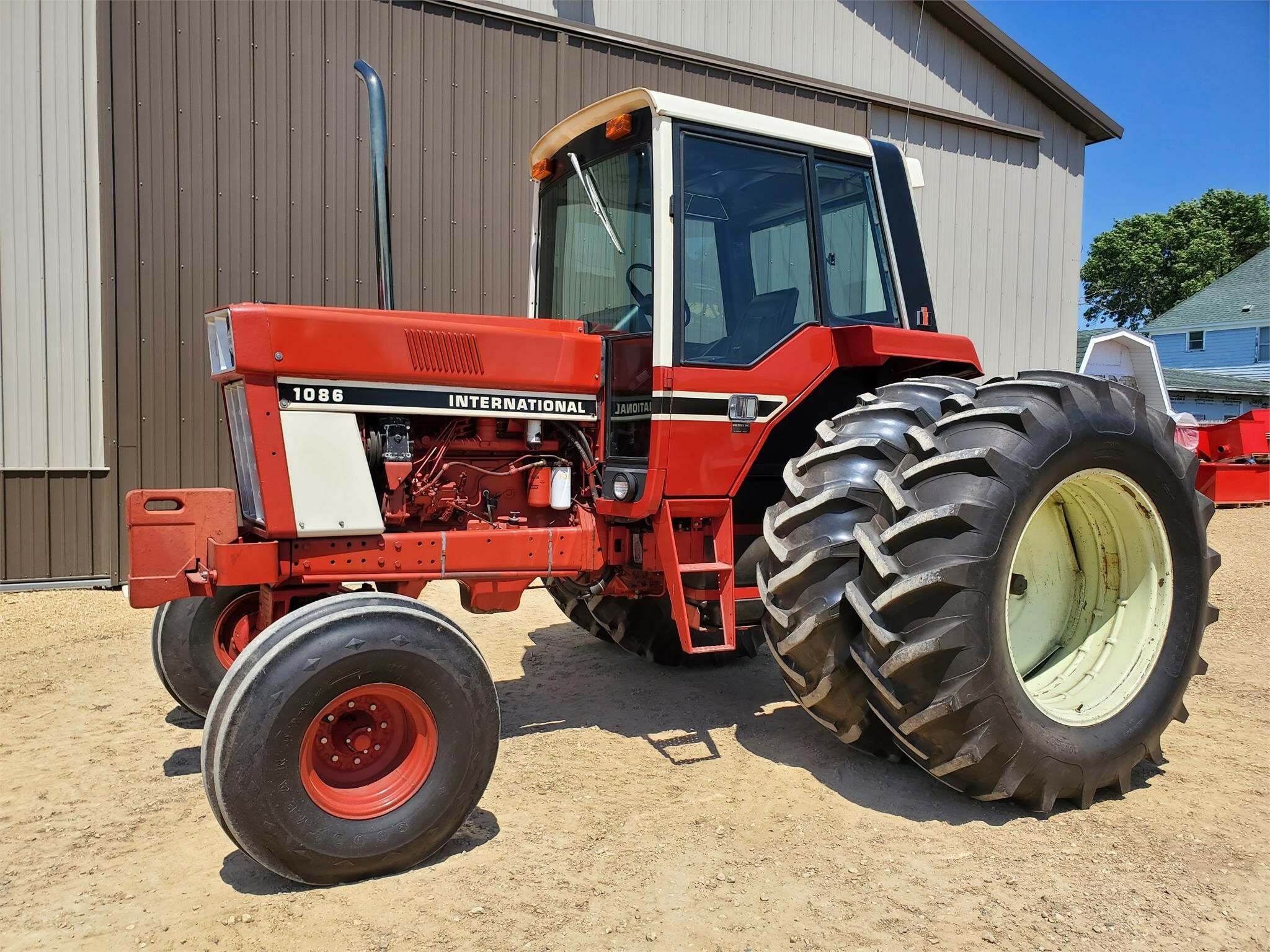

International Harvester A-1086
International Harvester A-1086 — 86A Series · 132 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
132 hp
Weight
5937 kg
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
Row-Crop tractorReference
Built in Geelong, AustraliaReference
Total built296Reference
Two-wheel driveReference
Final drivesbull gearReference
Differential lockelectro-hydraulic rearReference
Power steeringReference
Hydraulic disc brakesReference
Cab standard with air-conditioning.Reference
Engine
International Harvester 6.8L 6-cyl dieselReference
Engine110.4 kWReference
Drawbar (claimed)85.0 kWReference
International Harvester DT-414Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement6.8 LReference
Bore/Stroke109 x 121 mmReference
Power110.4 kWReference
Rated RPM2400Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed two-speed power shiftReference
TransmissionTorque AmplifierReference
Typetwo-speed power shiftReference
Gears16 forward and 8 reverseReference
Clutch356mm cerametallic discReference
PTO & Hydraulics
PTO (claimed)98.4 kWReference
Dimensions
Wheelbase266 cmReference
Weight5937 kgReference
Length426 cmReference
Width259 cmReference
Height (cab)289 cmReference
Shipping weight5937 kgReference
Ground clearance38 cmReference
Electrical
GroundnegativeReference
Batteries2Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
