Tractor · 1979Unverified

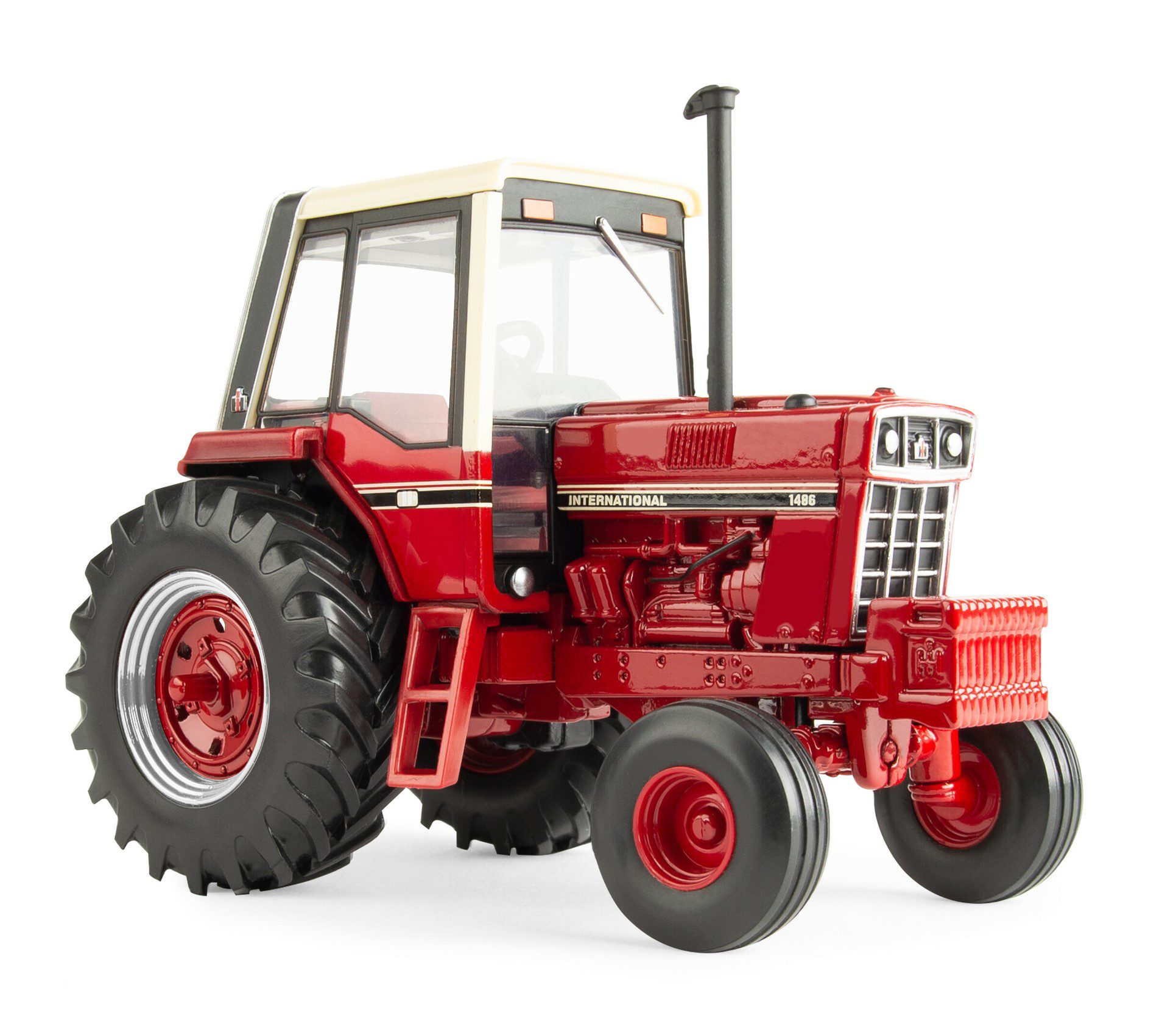

International Harvester A-1486
International Harvester A-1486 — 86A Series · 145 hp. Reference specifications; pending source verification.
The International Harvester A-1486 is a tractor with a rated output of 145 hp, categorising it among the higher-powered machines in its class. It was manufactured from 1979 to 1980. The tractor features a 6-cylinder turbocharged diesel liquid-cooled engine, which is connected to a powershift transmission for two-wheel drive. Its listed weight is 6051 kg, making it suitable for tasks covering approximately 200-800 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
145 hp
Weight
6051 kg
Catalogue coverage
Variants represented
2
Richest spec table
38 rows
Recorded power
145 hp
Recorded weight
6051 kg
Transmissions
16-speed two-speed power shift
Production years
1979-1980
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
Row-Crop tractorReference
Built in Geelong, AustraliaReference
Total built70Reference
Two-wheel driveReference
Final drivesbull gearReference
Differential lockelectro-hydraulic rearReference
Power steeringReference
Hydraulic disc brakesReference
Cab standard with air-conditioning.Reference
Engine
International Harvester 7.1L 6-cyl dieselReference
Engine124.5 kWReference
International Harvester DT-436Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement7.1 LReference
Bore/Stroke109 x 127 mmReference
Power124.5 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed two-speed power shiftReference
TransmissionTorque AmplifierReference
Typetwo-speed power shiftReference
Gears16 forward and 8 reverseReference
Clutch356mm cerametallic discReference
PTO & Hydraulics
PTO (claimed)108.1 kWReference
Dimensions
Wheelbase266 cmReference
Weight6051 kgReference
Length426 cmReference
Width259 cmReference
Height (cab)289 cmReference
Shipping weight6051 kgReference
Ground clearance38 cmReference
Electrical
GroundnegativeReference
Batteries2Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
