Tractor · 1966Unverified

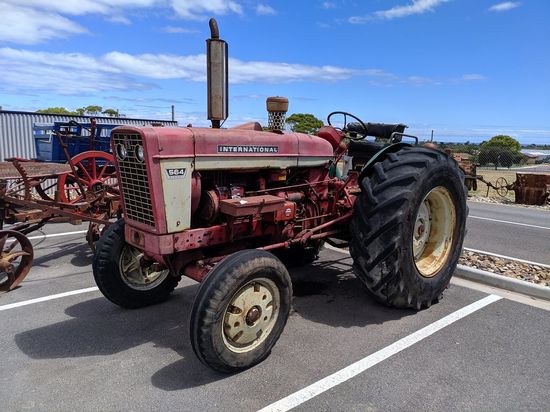

International Harvester A-564
International Harvester A-564 — Row-Crop tractor · 61 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
61 hp
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
Row-Crop tractorReference
Built in Geelong, AustraliaReference
Two-wheel driveReference
Open operator station.Reference
Variants
Farmall A564row-cropReference
McCormick A564standardReference
Engine
International Harvester 4.3L 4-cyl dieselReference
Engine45.5 kWReference
International Harvester AD-264Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.3 LReference
Bore/Stroke102 x 133 mmReference
Power45.5 kWReference
Rated RPM1800Reference
Transmission
5-speed gearReference
TypegearReference
Gears5 forward and 1 reverseReference
PTO & Hydraulics
Rear PTO Type540 (1.375)Reference
Dimensions
Front tire7.50-18Reference
Rear tire18.4-30Reference
Ag front7.50-18Reference
Ag rear18.4-30Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
