Tractor · 1972Unverified

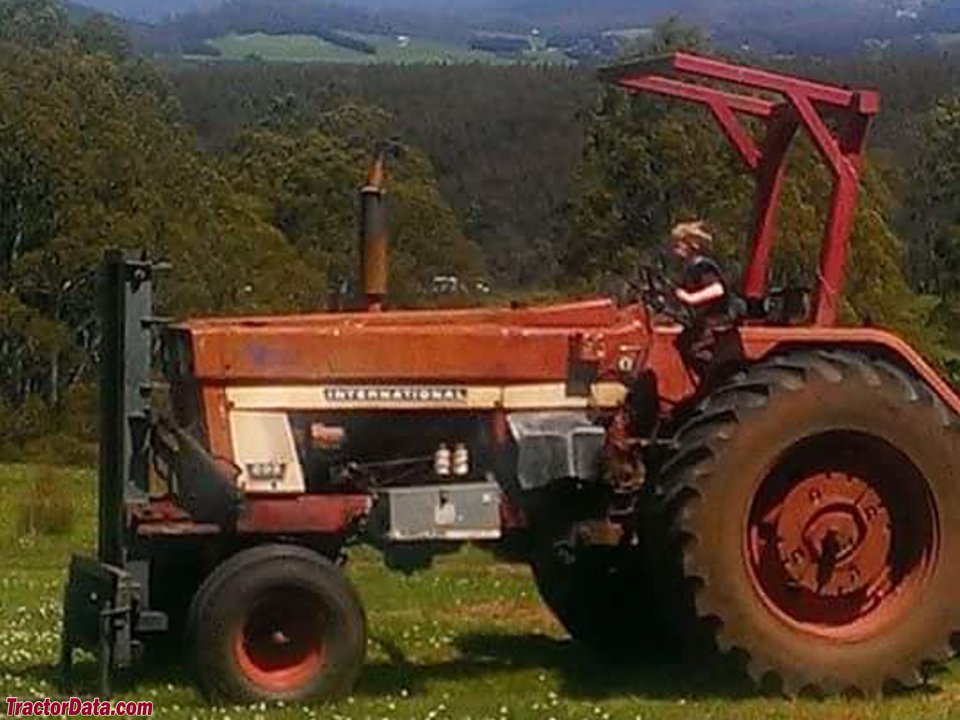

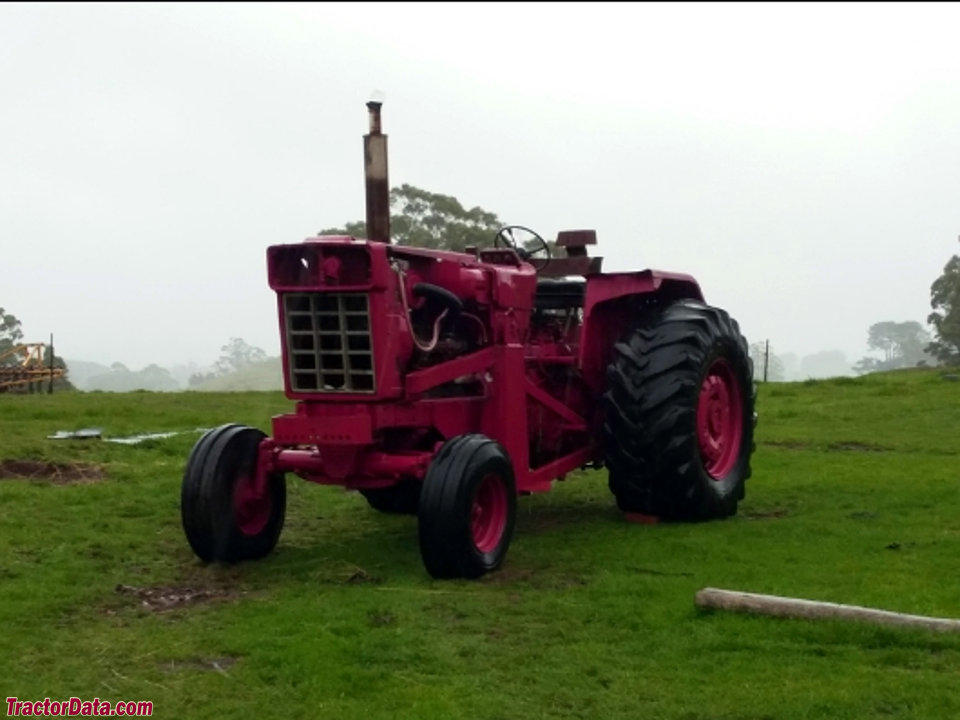

International Harvester A-696
International Harvester A-696 — 66A Series · 90 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
90 hp
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
Row-Crop tractorReference
Built in Geelong, AustraliaReference
Two-wheel driveReference
Final drivesspur gearReference
Power steeringReference
Hydraulic disc brakesReference
Open operator station.Reference
Engine
International Harvester 5.1L 6-cyl dieselReference
Engine (gross)67.1 kWReference
Drawbar (claimed)47.0 kWReference
International Harvester D-310Reference
dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement5.1 LReference
Bore/Stroke98 x 111 mmReference
Power (gross)67.1 kWReference
Fuel systemdirect injectionReference
Air cleanerdual stage dryReference
Rated RPM2300Reference
Torque307.8 NmReference
Torque RPM1600Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed gearReference
TransmissionInternational HarvesterReference
TypegearReference
Gears8 forward and 4 reverseReference
PTO & Hydraulics
PTO (claimed)52.2 kWReference
Typeopen centerReference
Pump flow45.4 lpmReference
Rear TypeIIReference
Rear lift (at ends)3084 kgReference
Dimensions
Wheelbase266 cmReference
Front tire7.50-20Reference
Rear tire18.4-34Reference
Ag front7.50-20Reference
Ag rear18.4-34Reference
Length393 cmReference
Electrical
GroundnegativeReference
Batteries2Reference
Battery volts6Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
