Tractor · 1976Unverified

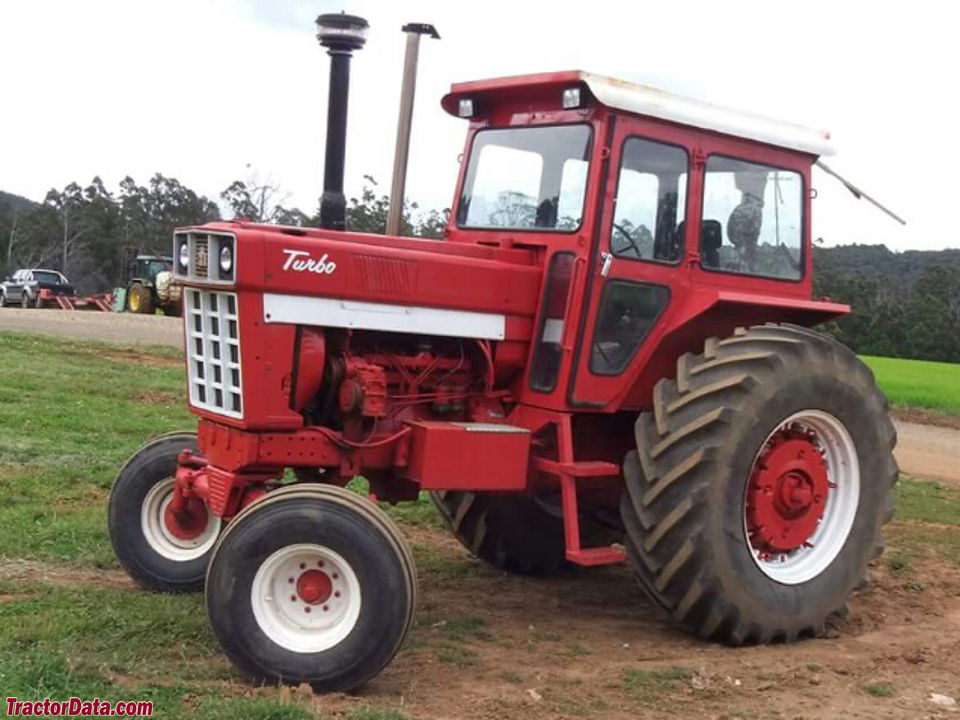

International Harvester A-976

International Harvester A-976 — 66A Series · 112 hp. Reference specifications; pending source verification.

The International Harvester A-976 is a tractor with a rated output of approximately 112 horsepower, placing it in the mid-range category for its class. Produced between 1976 and 1978, the A-976 is equipped with a 6-cylinder turbocharged diesel liquid-cooled engine, paired with two-wheel drive and a powershift transmission. It has a listed operating weight of 4989 kg and is suitable for operations covering areas of 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power
112 hp
Weight
4989 kg

Catalogue coverage

Variants represented
2
Richest spec table
38 rows
Recorded power
112 hp
Recorded weight
4989 kg
Transmissions
16-speed two-speed power shift
Production years
1976-1978
Verified variants
0

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerInternational HarvesterReference
Row-Crop tractorReference
Built in Geelong, AustraliaReference
Two-wheel driveReference
Final drivesbull gearReference
Power steeringReference
Open operator station. Cab optional.Reference

Engine

International Harvester 5.9L 6-cyl dieselReference
Engine99.9 kWReference
International Harvester DT-358Reference
turbocharged dieselReference
6-cylinderReference
liquid-cooled inlineReference
Displacement5.9 LReference
Bore/Stroke98 x 129 mmReference
Power99.9 kWReference
Rated RPM2500Reference
Torque443.4 NmReference
Torque RPM1600Reference
StarterelectricReference
Starter volts12Reference

Transmission

16-speed two-speed power shiftReference
TransmissionInternational Harvester Torque AmplifierReference
Typetwo-speed power shiftReference
Gears16 forward and 8 reverseReference
Clutch356mm dry discReference

PTO & Hydraulics

PTO (claimed)83.5 kWReference
Rear TypeIIReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference

Dimensions

Wheelbase266 cmReference
Weight4989 kgReference
Length404 cmReference
Width247 cmReference
Height (steering wheel)218 cmReference
Shipping weight4989 kgReference

Electrical

GroundnegativeReference
Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
