Tractor · 1961Unverified

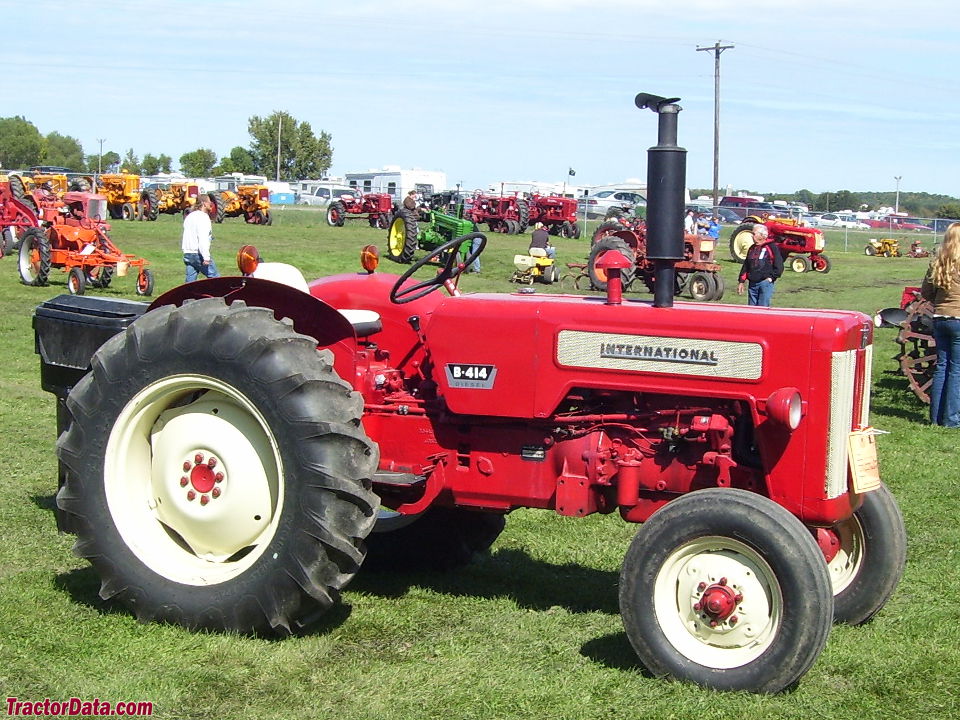

International Harvester B-414
International Harvester B-414 — Utility tractor · 36 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
36 hp
Max power
23.0 kW
Weight
3600 to 4050 pounds
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
Utility tractorReference
Built in Bradford, EnglandReference
Original price was $2,900 in 1967Reference
Two-wheel driveReference
SteeringmanualReference
Steeringpower optionalReference
Independent mechanical disc brakesReference
Open operator station.Reference
Engine
International Harvester 2.3L 4-cyl gasolineReference
International Harvester 2.5L 4-cyl dieselReference
Engine32.4 kWReference
Drawbar (claimed)23.1 kWReference
Drawbar (tested)23.7 kWReference
International Harvester BC-144Reference
gasolineReference
4-cylinderReference
liquid-cooledReference
Displacement2.3 LReference
Bore/Stroke86 x 102 mmReference
Power32.4 kWReference
Air cleaneroil bathReference
Compression6.3:1Reference
Rated RPM2000Reference
Torque157.3 NmReference
Torque RPM1300Reference
Firing order1-3-4-2Reference
Starter volts12Reference
Oil capacity4.7 LReference
Coolant capacity9.5 LReference
International Harvester BD-154Reference
dieselReference
Displacement2.5 LReference
Bore/Stroke89 x 102 mmReference
Compression22.6:1Reference
Torque153.2 NmReference
Torque RPM1400Reference
Power at rated engine speed27.2 kWReference
Max power23.0 kWReference
Power at rated engine speed26.8 kWReference
Max power23.7 kWReference
Transmission
8-speedReference
Transmissionsliding gearReference
Gears8 forward and 2 reverseReference
Clutchdry discReference
Oil capacity18.9 LReference
Four forward gears plus reverse with high and low ranges.Reference
TransmissionReverserReference
Gears8 forward and reverseReference
Four gears with high and low ranges plus reverser.Reference
PTO & Hydraulics
PTO (claimed)26.1 kWReference
PTO (tested)27.2 kWReference
Hydraulic system11.4 LReference
Capacity11.4 LReference
Total flow26.1 lpmReference
Total flow34.4 lpmReference
Rear Type1Reference
Rear PTOliveReference
Rear PTO Type540Reference
Capacities
Fuel48.1 LReference
Dimensions
Wheelbase194 cmReference
Weight3600 to 4050 poundsReference
Front tire6.00-16Reference
Rear tire13.6-28Reference
Ag front6.00-16Reference
Ag rear13.6-28Reference
Ag rear14.9-24Reference
Length297 cmReference
Width162 cmReference
Width228 cmReference
Height (steering wheel)153 cmReference
Clearance (front axle)47 cmReference
Clearance (rear axle)42 cmReference
Shipping1632 kgReference
Operating1837 kgReference
Ballasted3045 kgReference

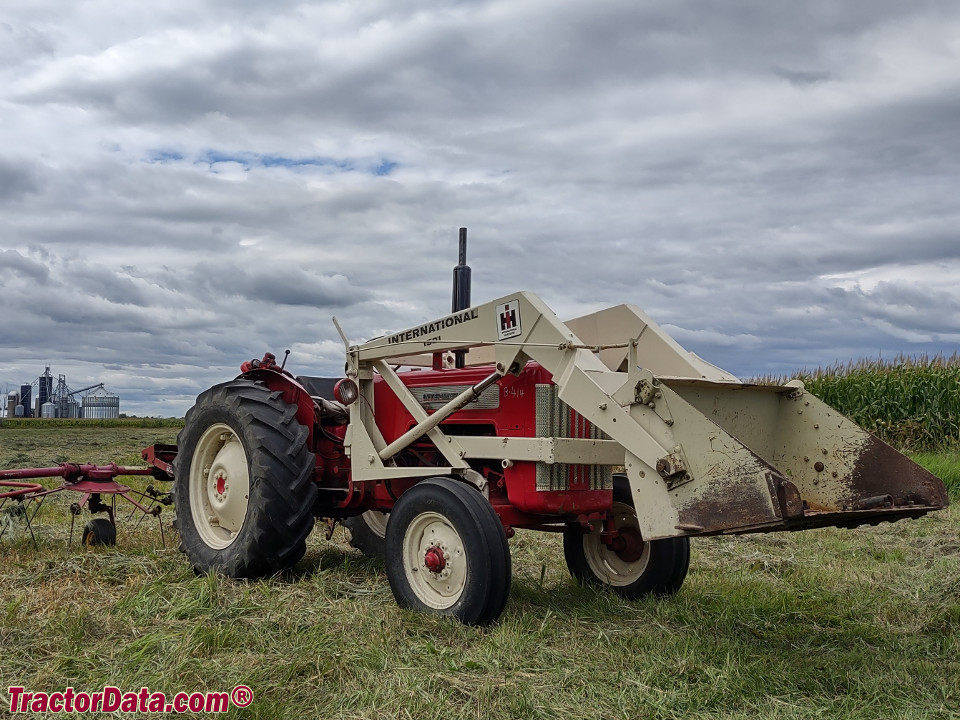

International Harvester B-414 attachments
front-end loaderReference
B-414 Serial Number Location
Right side of clutch/transmission housingReference
B-414 Serial Numbers
1961501 (diesel)Reference
19622575 (diesel)Reference
196314838 (diesel)Reference
196429647 (diesel)Reference
196542135 (diesel)Reference
196651664 (diesel)Reference
1962501 (gasoline)Reference
19632159 (gasoline)Reference
19643995 (gasoline)Reference
19655699 (gasoline)Reference
19666345 (gasoline)Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundpositiveReference
Charging systemgeneratorReference
Charging amps17Reference
Batteries1 (gas)Reference
Batteries2 (diesel)Reference
Battery volts12 (gas)Reference
Battery volts6 (diesel)Reference
Attachment overview
International Harvester 1501 loaderReference
International Harvester 2001 loaderReference
Test results
NTTL 817: gasoline 8-speed 2WDReference
NTTL 827: diesel 8-speed 2WDReference
Gasoline 8-speed 2WDMay 3 - 18, 1962Link: Nebraska Tractor Test 817 fileReference
PTO performanceReference
Fuel use11.4 l/hourReference
Drawbar performanceReference
Gear 4L used for power test.Reference
Max pull2260 kgReference
Gear 2L used for pull test.Reference
Diesel 8-speed 2WDSeptember 27 - October 12, 1962Link: Nebraska Tractor Test 827 fileReference
Fuel use9.5 l/hourReference
Fuel use9.8 l/hourReference
Max pull2308 kgReference
Speeds
With 13.6-28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
