Tractor · 1963Unverified

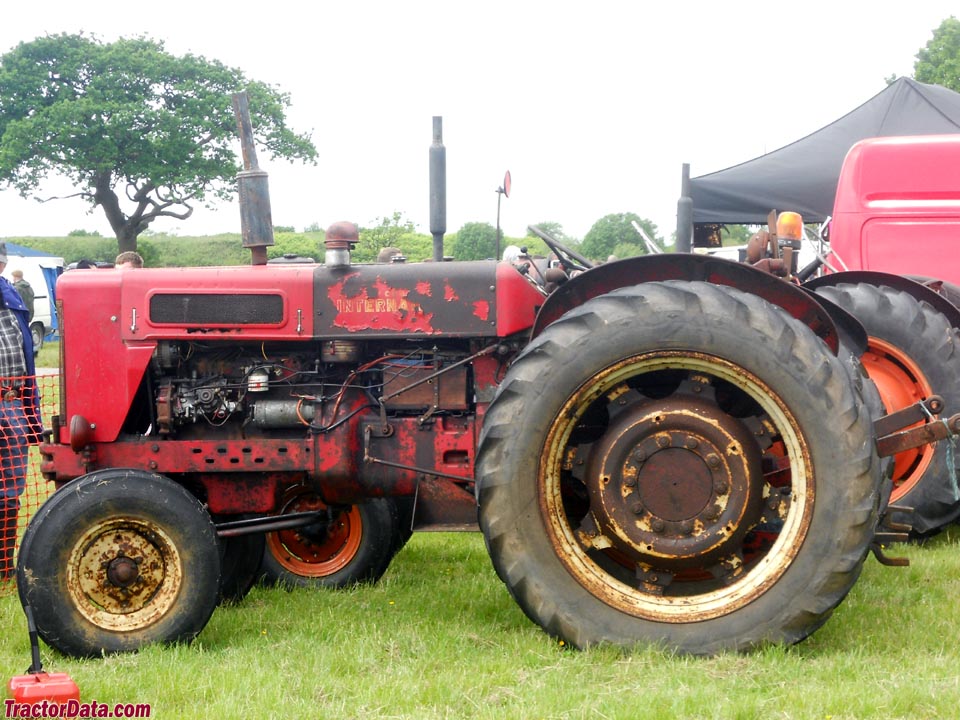

International Harvester B-614
International Harvester B-614 — Standard-tread tractor · 55 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
55 hp
Weight
2806 kg
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
Standard-tread tractorReference
Built in Doncaster, EnglandReference
Total built3,947Reference
Two- or four-wheel driveReference
Manual steeringReference
Disc brakesReference
Open operator station.Reference
Engine
International Harvester 4.6L 4-cyl dieselReference
Engine46.6 kWReference
Drawbar (claimed)38.8 kWReference
International Harvester BD-281Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.6 LReference
Bore/Stroke105 x 133 mmReference
Power46.6 kWReference
Rated RPM1600Reference
Torque305.1 NmReference
Torque RPM1200Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed gearReference
TypegearReference
Gears8 forward and 2 reverseReference
Clutchdry discReference
PTO & Hydraulics
PTO (claimed)41.0 kWReference
Hydraulic system15.9 LReference
Typeopen centerReference
Capacity15.9 LReference
Pressure137.9 barReference
Pump flow27.3 lpmReference
Rear TypeIIReference
Rear lift (at ends)1678 kgReference
Rear PTOtransmissionReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@1150Reference
Capacities
Fuel77.2 LReference
Dimensions
Weight2806 kgReference
Front tire7.50-16Reference
Rear tire12-38Reference
Ag front7.50-16Reference
Ag rear12-38Reference
Ag front6-16Reference
Ag front6-19Reference
Ag rear11-38Reference
Ag rear14-30Reference
Ag rear15-30Reference
Length353 cmReference
Height (steering wheel)172 cmReference
Operating weight2806 kgReference
Ground clearance42 cmReference
Front tread131 to 154 cmReference
Front tread132 to 193 cmReference
Rear tread132 to 182 cmReference
Rear tread132 to 223 cmReference
B-614 Serial Numbers
1963501Reference
1964508Reference
1965981Reference
19662191Reference
19673017Reference
19683964Reference
FAQ: How to read a serial number table.Reference
Electrical
Charging systemgeneratorReference
Batteries2Reference
Battery volts6Reference
Speeds
With 12.00-38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
