Tractor · 1960Unverified

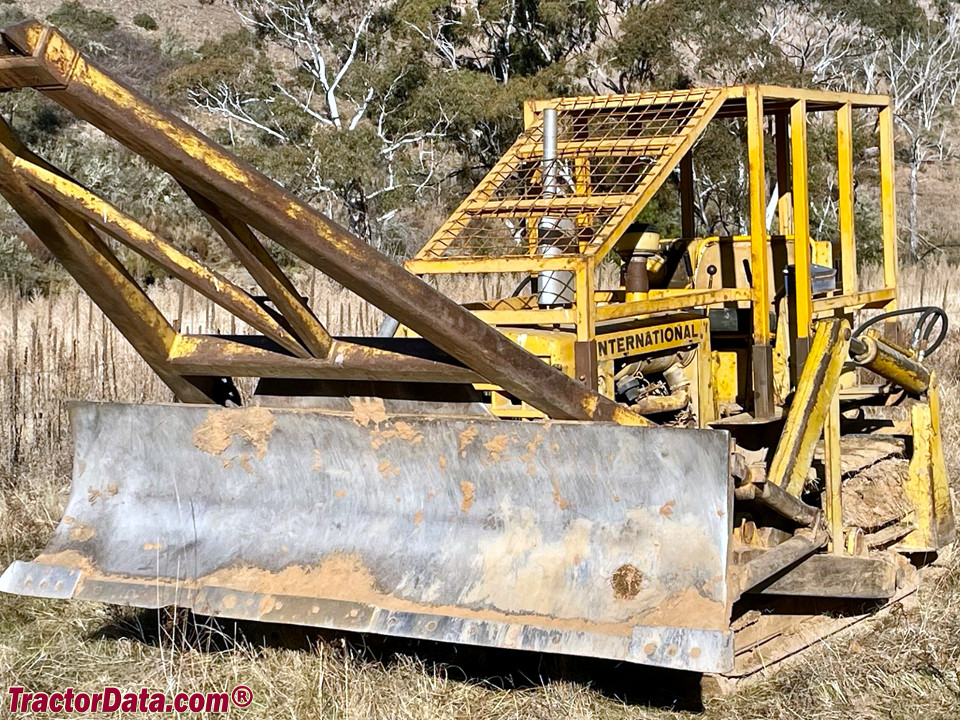

International Harvester BTD-8

Name: International Harvester BTD-8
Brand: International Harvester

International Harvester BTD-8 — Agricultural Crawler tractor · 60 hp. Reference specifications; pending source verification.

The International Harvester BTD-8 is a tractor with a rating of approximately 60 hp, positioning it within the lighter end of its class. It was in production from 1960 to 1966. The tractor features a 4-cylinder diesel liquid-cooled engine, paired with a tracked undercarriage and a 5-speed gearbox. It has an operating weight of 4808 kg and is suitable for operations on up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

60 hp

Weight

4808 kg

Catalogue coverage

Variants represented

Richest spec table

56 rows

Recorded power

60 hp

Recorded weight

4808 kg

Transmissions

5-speed gear

Production years

1960-1966

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerInternational HarvesterReference

Agricultural Crawler tractorReference

Built in Doncaster, EnglandReference

Total built3292Reference

Original price was AUP 3,920 in 1964Reference

DrivecrawlerReference

Final drivesbull gearReference

Open operator stationReference

Engine

International Harvester 4.6L 4-cyl dieselReference

Fuel tank123.0 LReference

Engine (net)44.7 kWReference

Drawbar (claimed)38.9 kWReference

Belt (claimed)42.1 kWReference

International Harvester BD-281Reference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.6 LReference

Bore/Stroke105 x 133 mmReference

Power (net)44.7 kWReference

Rated RPM1600Reference

Torque298.3 NmReference

Torque RPM1100Reference

StarterelectricReference

Starter volts12Reference

Oil capacity9.1 LReference

Coolant capacity24.4 LReference

Transmission

5-speed gearReference

4-speed gearReference

TypegearReference

Gears5 forward and 1 reverseReference

Clutch330mm dry dsicReference

Oil capacity18.2 LReference

Gears4 forward and 2 reverseReference

Optional high-speed reverse transmission.Reference

Dimensions

Weight4808 kgReference

14-inch tracksReference

Length274 cmReference

Width162 cmReference

Height175 cmReference

Operating weight4808 kgReference

Gauge127 cmReference

BTD-8 Serial Numbers

1960501Reference

1961604Reference

19621083Reference

19631701Reference

19642321Reference

19652863Reference

19663637Reference

Final3793Reference

FAQ: How to read a serial number table.Reference

International Harvester BTD-8 Tracks

Width35 cmReference

Length on ground161 cmReference

Area on ground1.1 m²Reference

Width40 cmReference

Area on ground1.3 m²Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
