Tractor · 1964Unverified
International Harvester Cub
International Harvester Cub · 11 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
11 hp
Weight
1477 to 1877 pounds
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
Built in Louisville, Kentucky, USAReference
The International Cub's PTO ran counter-clockwise ("backwards") and at full engine speed, making it incompatible with standard PTO-driven equipment. In 1975 the "Increased Power" New International Cub was released.Reference
Two-wheel driveReference
SteeringmanualReference
Differential mechanical drum brakesReference
Open operator station.Reference
Engine
International Harvester 1.0L 4-cyl gasolineReference
Engine9.7 kWReference
Drawbar (claimed)7.5 kWReference
Plows1 (12 inch)Reference
International Harvester C60Reference
gasolineReference
4-cylinderReference
liquid thermosyphon-cooledReference
Displacement1.0 LReference
Bore/Stroke67 x 70 mmReference
Power9.7 kWReference
Air cleaneroil bathReference
Compression6.5:1Reference
Rated RPM1800Reference
Firing order1-3-4-2Reference
Starter volts12Reference
Coolant capacity9.2 LReference
SparkplugChampion D-21Reference
SparkplugAC C86Reference
Sparkplug gap0.584 mmReference
Intake valve clearance0.330 mmReference
Exhaust valve clearance0.330 mmReference
Oil capacity2.8 LReference
Oil change120 hReference
Transmission
3-speed sliding gearReference
Typesliding gearReference
Gears3 forward and 1 reverseReference
Oil capacity1.7 LReference
PTO & Hydraulics
PTO (claimed)8.2 kWReference
Hydraulic system2.1 LReference
Capacity2.1 LReference
Pressure82.7 barReference
Total flow10.6 lpmReference
TypeIH Fast HitchReference
Rear PTOindependentReference
Rear PTO TypeCub-10 (0.9375)Reference
Engine RPM-1800@1800Reference
Capacities
Fuel28.4 LReference
Dimensions
Wheelbase175 cmReference
Weight1477 to 1877 poundsReference
Front tire4.00-12Reference
Rear tire8-24Reference
Ag front4.00-12Reference
Ag rear8-24Reference
Length252 cmReference
Width122 cmReference
Height159 cmReference
Height (exhaust)193 cmReference
Operating669 kgReference
Operating851 kgReference
Ballasted1311 kgReference
International Harvester Cub attachments
42" mower deckReference
60" mid-mount mower deckReference
bladeReference

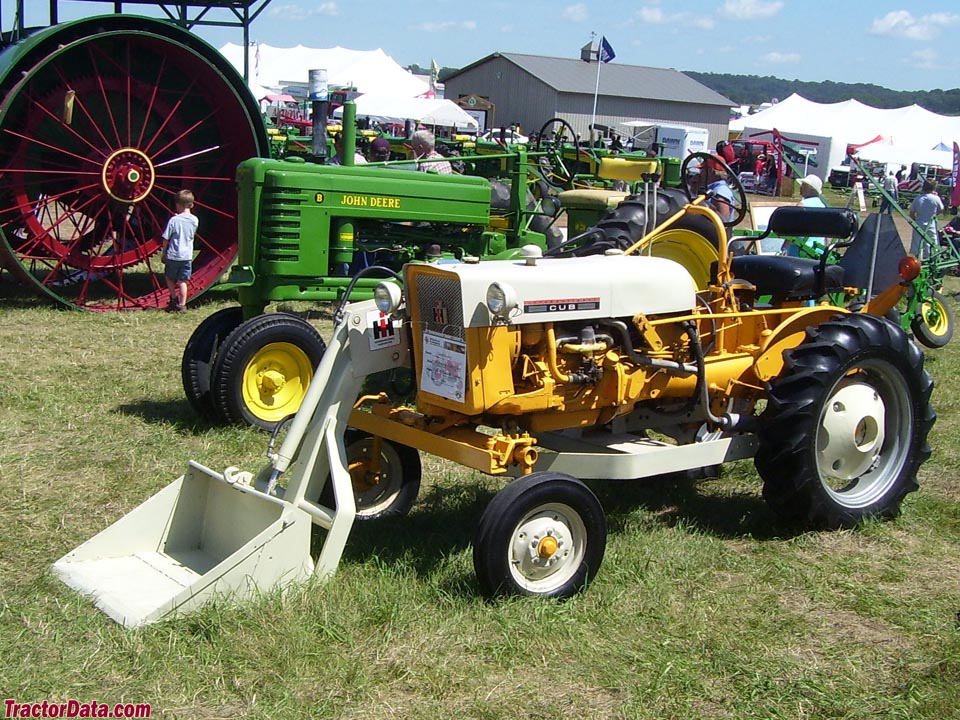

front-end loaderReference
Cub Serial Number Location
Serial number plate on the right side of the Farmall Cub, above the front axle.Reference
Cub Serial Numbers
1964224704Reference
1965225110Reference
1966227209Reference
1967229225Reference
1968231005Reference
1969232981Reference
1970234868Reference
1971236827Reference
1972238506Reference
1973240581Reference
1974242746Reference
1975245651Reference
Final248124Reference
1975248125Reference
1976248618Reference
1977250832Reference
1978252109Reference
1979253136Reference
Final253685Reference
FAQ: How to read a serial number table.Reference
Links
FarmallCub.com: Information, photos, and a message boardReference
Electrical
GroundnegativeReference
Charging systemgeneratorReference
Charging systemalternator (sn 248125)Reference
Battery volts12Reference
Attachment overview
42" mower deckReference
60" mid-mount mower deckReference
BladeReference
Front-end loaderReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
