Tractor · 1968Unverified

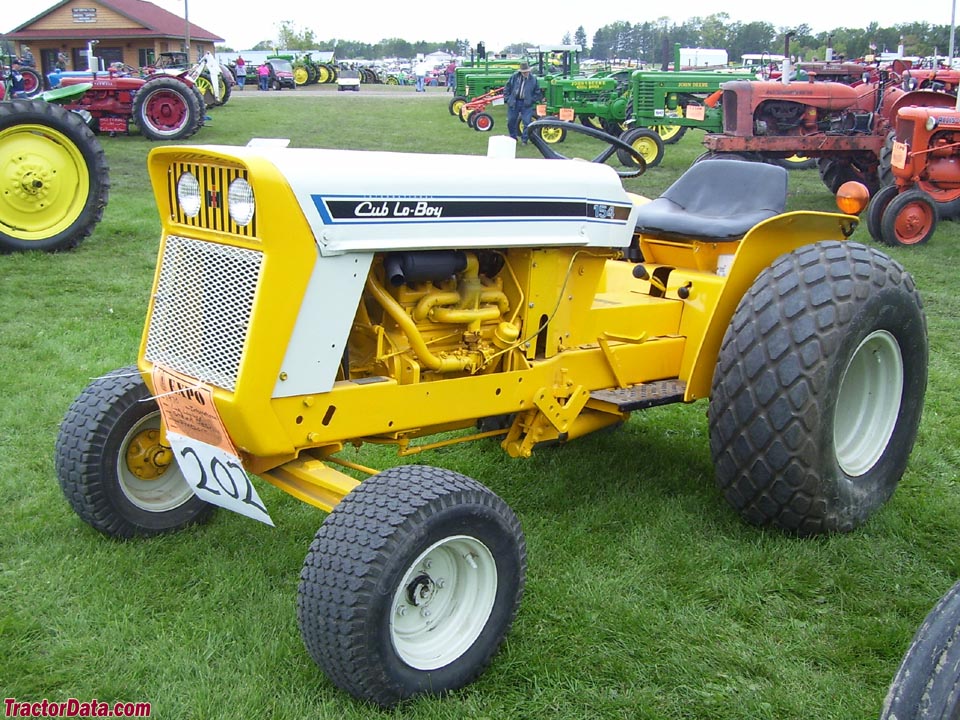

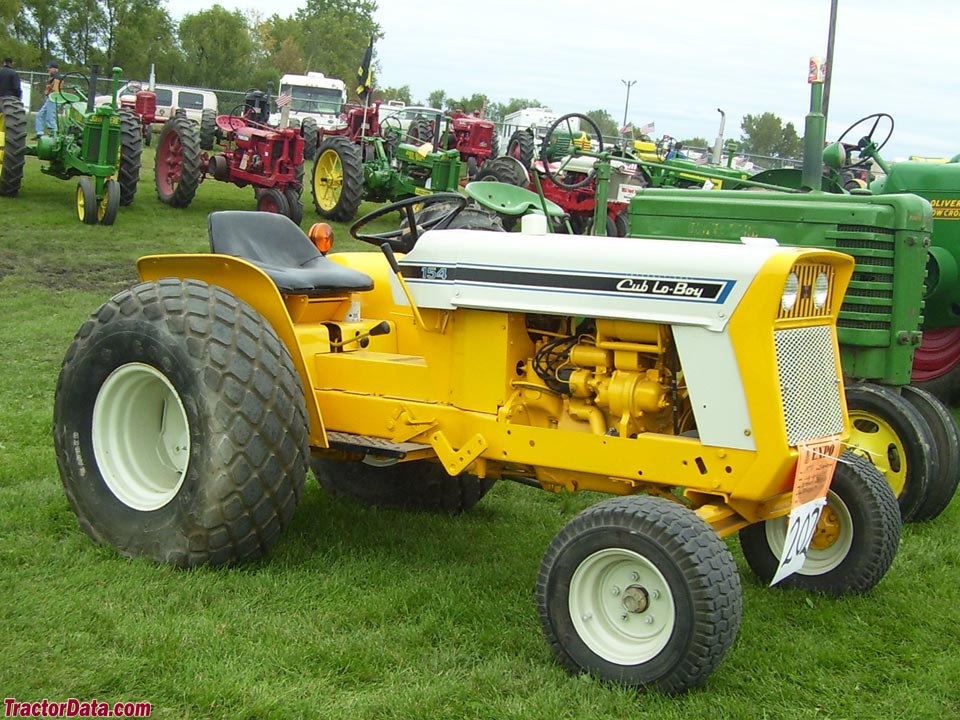

International Harvester Cub 154 Lo-Boy
International Harvester Cub 154 Lo-Boy — Compact Utility tractor · 14 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
14 hp
Weight
671 kg
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
Compact Utility tractorReference
Built in Louisville, Kentucky, USAReference
Original price$2,400 (1974)Reference
Two-wheel driveReference
SteeringmanualReference
Mechanical drum brakesReference
Open operator station.Reference
Engine
International Harvester 1.0L 4-cyl gasolineReference
International Harvester C60Reference
gasolineReference
4-cylinderReference
liquid-cooledReference
Displacement1.0 LReference
Bore/Stroke67 x 70 mmReference
Fuel systemInternational 0.75 updraft carburetorReference
Compression7.5:1Reference
Rated RPM2200Reference
Firing order1-3-4-2Reference
Starter volts12Reference
Oil capacity2.8 LReference
Coolant capacity9.2 LReference
Sparkplug gap0.584 mmReference
Transmission
3-speed unsynchronized gearReference
6-speed creeperReference
Typeunsynchronized gearReference
Gears3 forward and 1 reverseReference
Clutchmechanical dry discReference
Oil capacity6.6 LReference
TypecreeperReference
Gears6 forward and 2 reverseReference
Optional creeper range for the standard transmission.Reference
PTO & Hydraulics
PTO (claimed)10.4 kWReference
Hydraulic system6.6 LReference
Typegear pumpReference
Capacity6.6 LReference
Pressure137.9 barReference
Pump flow7.6 lpmReference
Rear TypeI (optional)Reference
Rear PTOindependentReference
Clutchmechanical dry discReference
Rear PTO Type1600 (counter-clockwise)Reference
Capacities
Fuel30.3 LReference
Dimensions
Wheelbase162 cmReference
Weight671 kgReference
Front tire4.00-12Reference
Rear tire8.3-24Reference
Ag front4.00-12Reference
Ag rear8.3-24Reference
Ag rear9.5-24Reference
Lawn/turf front20x8.00-10Reference
Lawn/turf rear13.6-16Reference
Lawn/turf rear12.4-16Reference
Length238 cmReference
Width132 cmReference
Height124 cmReference
Ground clearance33 cmReference
Front tread106 cmReference
Rear tread106 cmReference
International Harvester 154 Lo-Boy attachments
bladeReference
154 Lo-Boy Serial Number Location
Frame, front left sideReference
154 Lo-Boy Serial Numbers
19687505Reference
19698273Reference
197015502Reference
197120332Reference
197223343Reference
197327538Reference
197431766Reference
Final36676Reference
FAQ: How to read a serial number table.Reference
Links
McCormick-Deering Farmall Cub:Reference
Electrical
GroundnegativeReference
Charging amps12, 15 (generator)Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
