Tractor · 1977Unverified

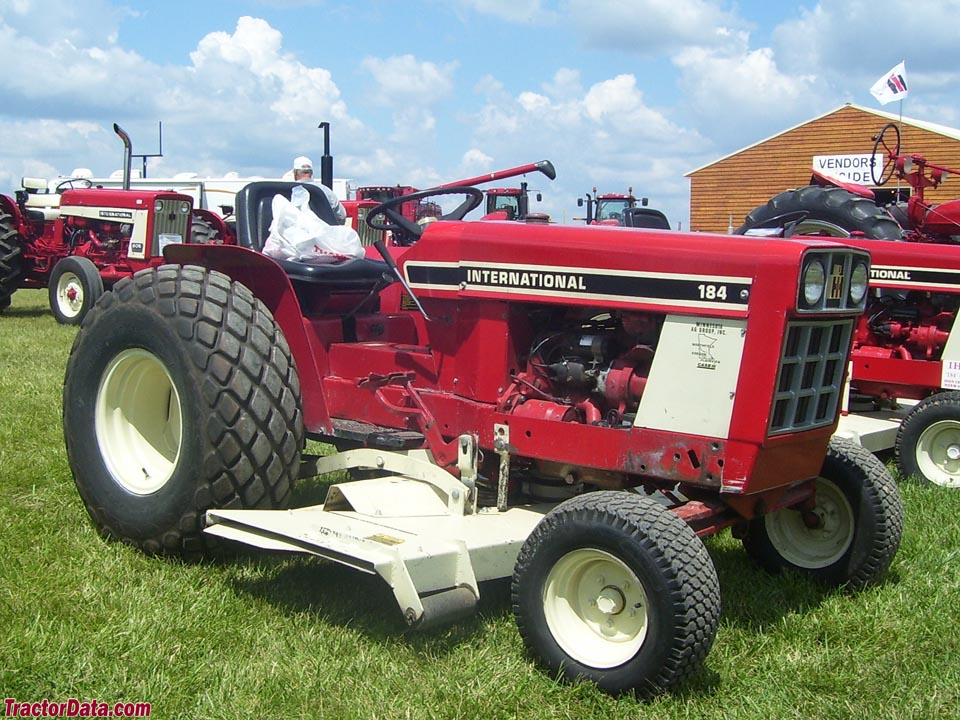

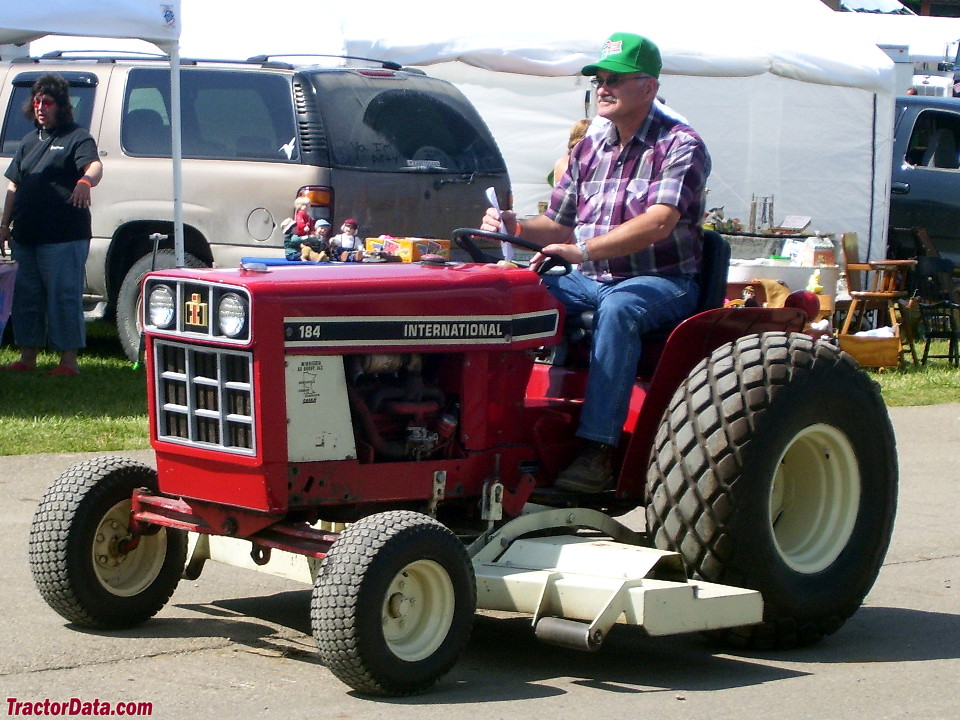

International Harvester Cub 184 Lo-Boy
International Harvester Cub 184 Lo-Boy — Compact Utility tractor · 11 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
11 hp
Weight
734 kg
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
Compact Utility tractorReference
Built in Louisville, Kentucky, USAReference
Original price$4,200 (1980)Reference
Two-wheel driveReference
SteeringmanualReference
Mechanical drum brakesReference
Open operator station.Reference
Engine
International Harvester 1.0L 4-cyl gasolineReference
Engine13.4 kWReference
International Harvester C60Reference
gasolineReference
4-cylinderReference
liquid-cooledReference
Displacement1.0 LReference
Bore/Stroke67 x 70 mmReference
Power13.4 kWReference
Fuel systemZenith 68YY7 carburetorReference
Compression7.5:1Reference
Rated RPM2300Reference
Firing order1-3-4-2Reference
Starter volts12Reference
Oil capacity2.8 LReference
Coolant capacity9.2 LReference
Sparkplug gap0.584 mmReference
Transmission
3-speed unsynchronized gearReference
6-speed creeperReference
Typeunsynchronized gearReference
Gears3 forward and 1 reverseReference
Clutchmechanical dry discReference
Oil capacity6.6 LReference
TypecreeperReference
Gears6 forward and 2 reverseReference
Optional creeper range for the standard transmission.Reference
PTO & Hydraulics
PTO (claimed)8.2 kWReference
Hydraulic system6.6 LReference
Typegear pumpReference
Capacity6.6 LReference
Pressure137.9 barReference
Pump flow7.6 lpmReference
Rear TypeI (optional)Reference
Rear PTOindependentReference
Clutchelectro-magneticReference
Rear PTO Type1600 (counter-clockwise)Reference
Capacities
Fuel30.3 LReference
Dimensions
Wheelbase162 cmReference
Weight734 kgReference
Front tire4.00-12Reference
Rear tire8.3-24Reference
Ag front4.00-12Reference
Ag rear8.3-24Reference
Ag rear9.5-24Reference
Lawn/turf front20x8.00-10Reference
Lawn/turf rear13.6-16Reference
Lawn/turf rear12.4-16Reference
Length238 cmReference
Width132 cmReference
Height124 cmReference
Ground clearance33 cmReference
Front tread106 cmReference
Rear tread106 cmReference
International Harvester 184 Lo-Boy attachments
60" mid-mount mower deckReference
snowblowerReference
bladeReference
184 Lo-Boy Serial Number Location
Serial number plate on the left side of the tractor, above the foot rest.Reference
184 Lo-Boy Serial Numbers
197743802Reference
197846163Reference
197948030Reference
Final52339Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging amps37Reference
Charging amps42Reference
Battery volts12Reference
Attachment overview
60" mid-mount mower deckReference
SnowblowerReference
BladeReference
60" Mower deck
Typemid-mount International Harvester 3160Reference
Type3-bladeReference
Cutting width152 cmReference
Cut height3 to 17 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
