Tractor · 1956Unverified

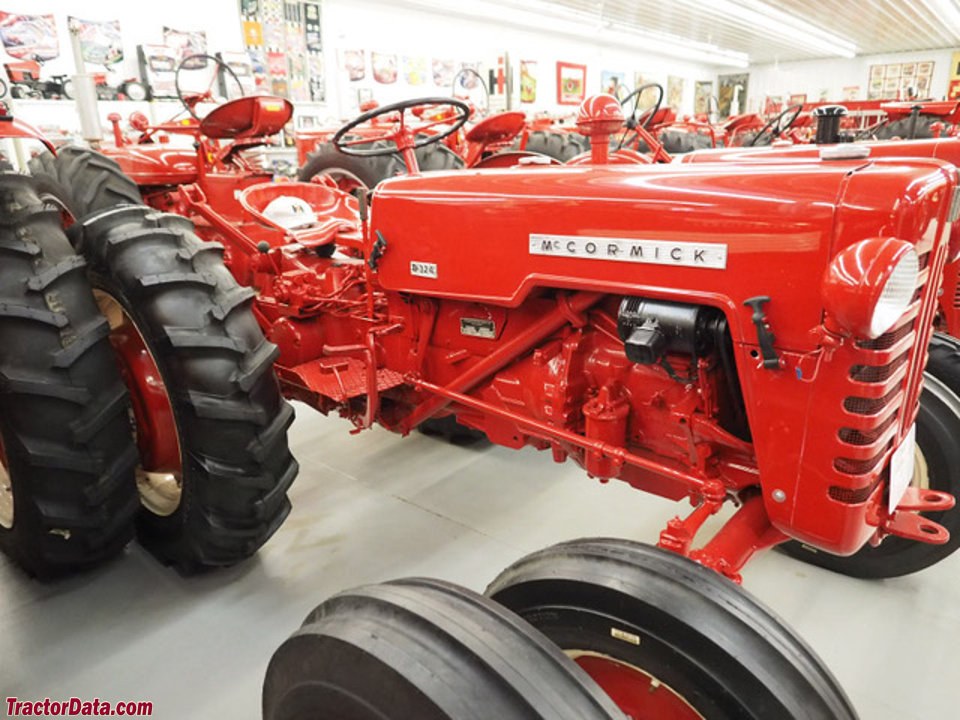

International Harvester D-324
International Harvester D-324 · 24 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
24 hp
Weight
1315 kg
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
Built in Neuss, GermanyReference
Total built24,490Reference
Two-wheel driveReference
Manual steeringReference
Dry disc brakesReference
Open operator station.Reference
Engine
International Harvester 1.8L 3-cyl dieselReference
Fuel tank30.3 LReference
Engine17.9 kWReference
International Harvester DD-111Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.8 LReference
Bore/Stroke87 x 102 mmReference
Power17.9 kWReference
Rated RPM1900Reference
Transmission
6-speedReference
8-speed partial power shiftReference
TransmissionZFReference
Gears6 forward and 1 reverseReference
TransmissionInternational Harvester AgriomaticReference
Typepartial power shiftReference
Gears8 forward and 2 reverseReference
PTO & Hydraulics
Rear PTO Type540Reference
Dimensions
Wheelbase187 cmReference
Weight1315 kgReference
Front tire4.50x16Reference
Rear tire8.00x32Reference
Ag front4.50x16Reference
Ag front5.50x16Reference
Ag rear8.00x32Reference
Ag rear10.00x28Reference
Length274 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
