Tractor · 1956Unverified

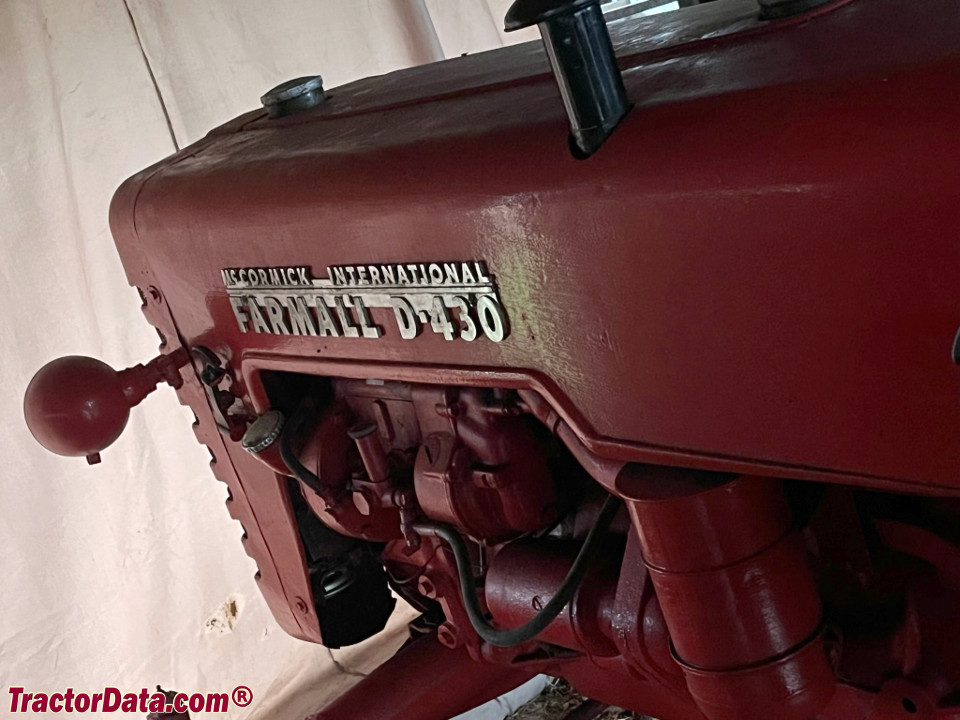

International Harvester D-430
International Harvester D-430 · 30 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
30 hp
Weight
1399 kg
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
Built in Neuss, GermanyReference
Total built18,231Reference
Two-wheel driveReference
Manual steeringReference
Open operator station.Reference
Engine
International Harvester 2.2L 4-cyl dieselReference
Fuel tank29.9 LReference
Engine22.4 kWReference
International Harvester DD-132Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke83 x 102 mmReference
Power22.4 kWReference
Compression19:1Reference
Rated RPM1750Reference
StarterelectricReference
Starter volts12Reference
Oil capacity6.6 LReference
Coolant capacity14.0 LReference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 1 reverseReference
Oil capacity24.0 LReference
PTO & Hydraulics
Rear TypeIIReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase187 cmReference
Weight1399 kgReference
Front tire5.00x16Reference
Rear tire10x28Reference
Ag front5.00x16Reference
Ag rear10x28Reference
Ag front5.50x16Reference
Ag front6.00x16Reference
Ag rear11x28Reference
Ag rear9x36Reference
Length292 cmReference
Width164 cmReference
Height155 cmReference
Ground clearance38 cmReference
Front tread125 to 205 cmReference
Rear tread125 to 189 cmReference
Capacities
Diameter24 cmReference
Width16 cmReference
RPM1325Reference
Speeds
With 10x28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
