Tractor · 1963Unverified

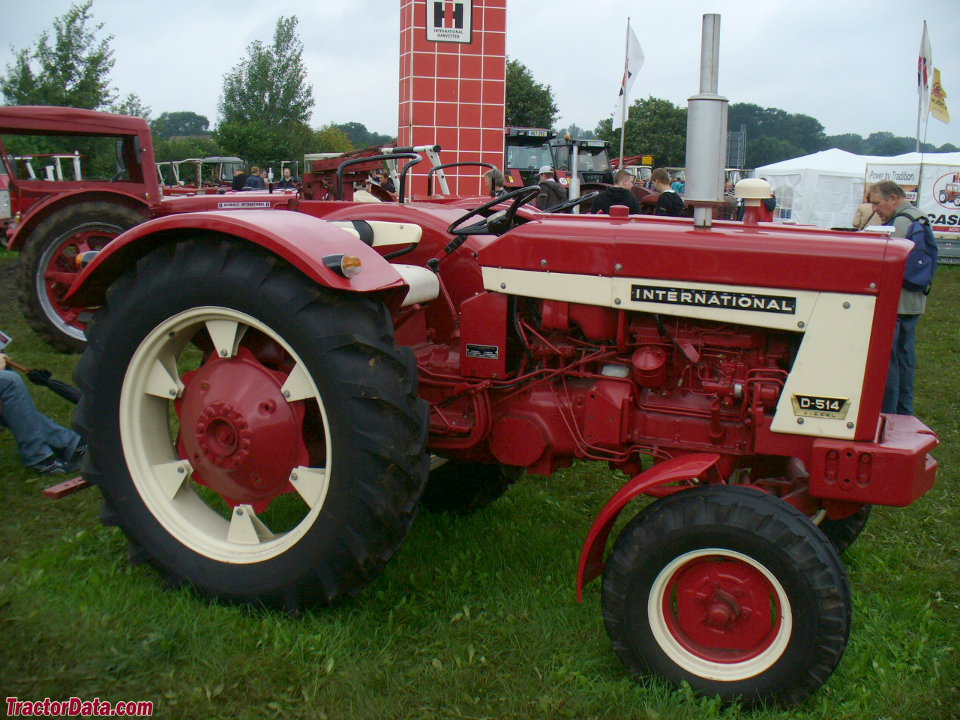

International Harvester D-514
International Harvester D-514 — D Series · 53 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
53 hp
Weight
2520 kg
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
Utility tractorReference
Built in Neuss, GermanyReference
Total built1199Reference
Two-wheel driveReference
Power steeringReference
Open operator station.Reference
Engine
International Harvester 3.1L 4-cyl dieselReference
Fuel tank57.9 LReference
Engine39.5 kWReference
International Harvester DD-188Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.1 LReference
Bore/Stroke94 x 112 mmReference
Power39.5 kWReference
Rated RPM2100Reference
StarterelectricReference
Starter volts12Reference
Oil capacity4.7 LReference
Coolant capacity17.0 LReference
Transmission
5-speed gearReference
10-speed two-speed power shiftReference
TypegearReference
Gears5 forward and 1 reverseReference
Oil capacity49.0 LReference
TransmissionTorque AmplifierReference
Typetwo-speed power shiftReference
Gears10 forward and 2 reverseReference
PTO & Hydraulics
Rear TypeII/IReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase185 cmReference
Weight2520 kgReference
Front tire7.50-16Reference
Rear tire13-30Reference
Ag front7.50-16Reference
Ag rear13-30Reference
Length312 cmReference
Width182 cmReference
Height172 cmReference
Ground clearance40 cmReference
Front tread137 to 185 cmReference
Rear tread137 to 185 cmReference
Capacities
Diameter27 cmReference
Width19 cmReference
RPM1168Reference
Speed1025.96 meters/minReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
