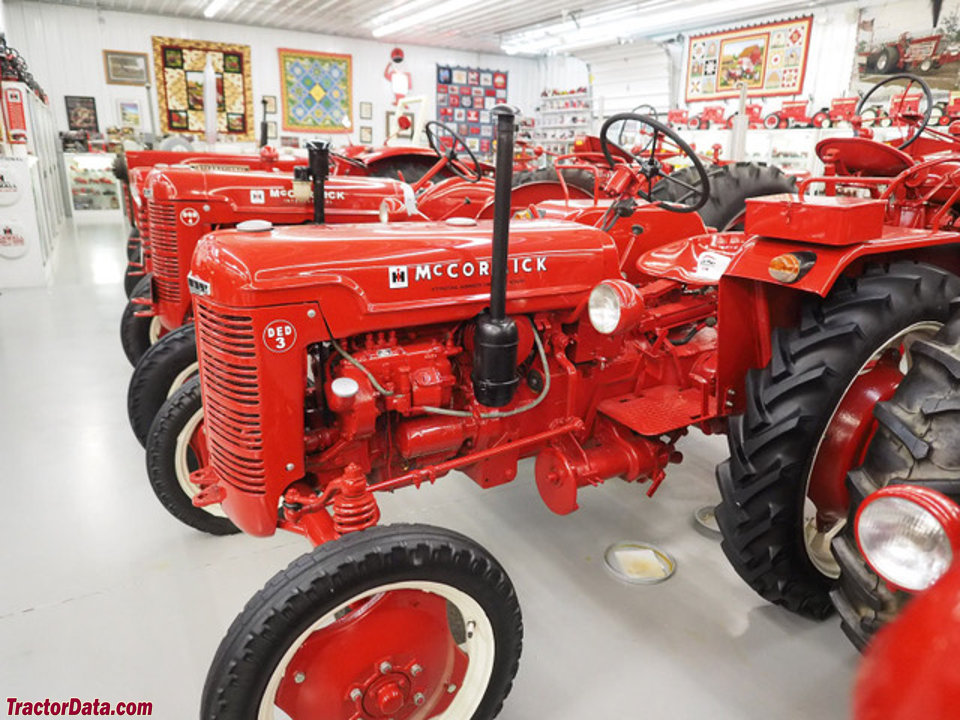

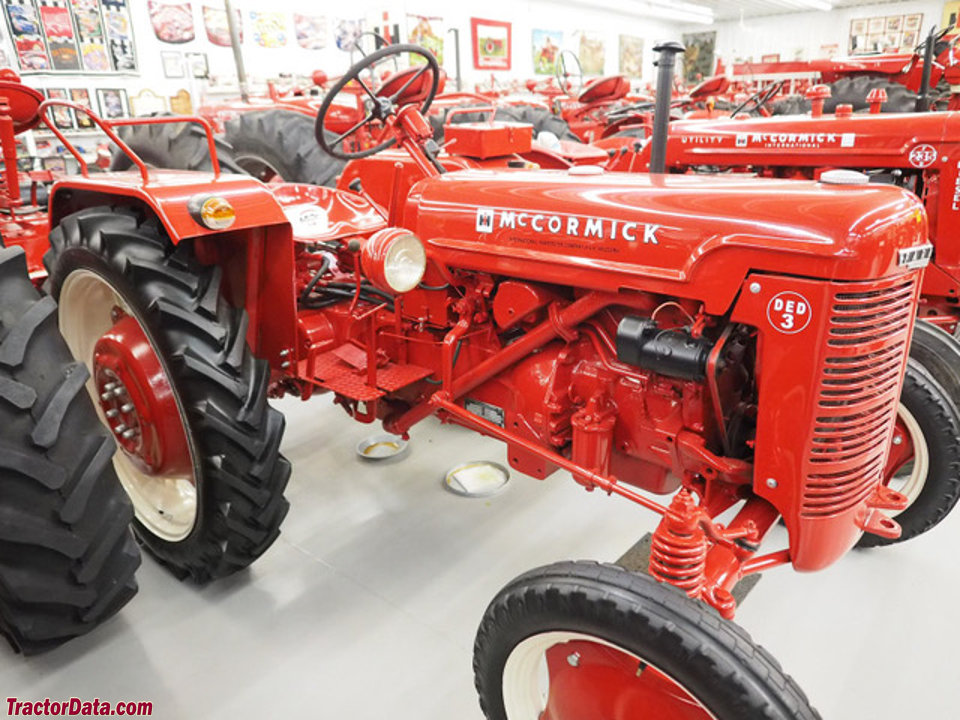

The International Harvester DED is a compact tractor model with a power rating of 20 hp. It was manufactured between 1953 and 1956. Power is provided by a 3-cylinder diesel liquid-cooled engine, which is connected to a 5-speed gearbox and two-wheel drive. The tractor weighs 1190 kg and is suitable for tasks on around 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
20 hp
Weight
1190 kg
Catalogue coverage
Variants represented
2
Richest spec table
32 rows
Recorded power
20 hp
Recorded weight
1190 kg
Transmissions
5-speed gear
Production years
1953-1956
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
Built in Neuss, GermanyReference
Total built8,652Reference
Two-wheel driveReference
Open operator station.Reference
Engine
International Harvester 1.6L 3-cyl dieselReference
Engine14.9 kWReference
International Harvester DD-99Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.6 LReference
Bore/Stroke83 x 102 mmReference
Power14.9 kWReference
Rated RPM1800Reference
Starter volts12Reference
Transmission
5-speed gearReference
TypegearReference
Gears5 forward and 1 reverseReference
Clutch228.6mm dry discReference
PTO & Hydraulics
Rear PTO Type540Reference
Dimensions
Wheelbase167 cmReference
Weight1190 kgReference
Front tire4.00-19Reference
Rear tire8-32Reference
Ag front4.00-19Reference
Ag rear8-32Reference
Length273 cmReference
Height (steering wheel)158 cmReference
Ground clearance39 cmReference
Front tread124 to 205 cmReference
Rear tread124 to 190 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
