Tractor · 1953Unverified

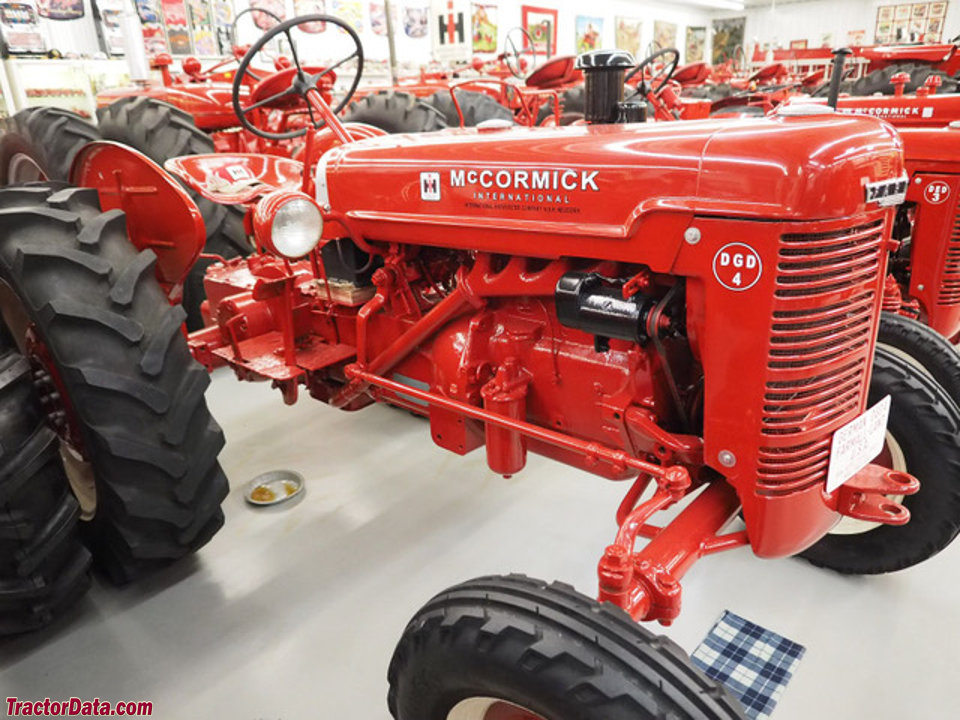

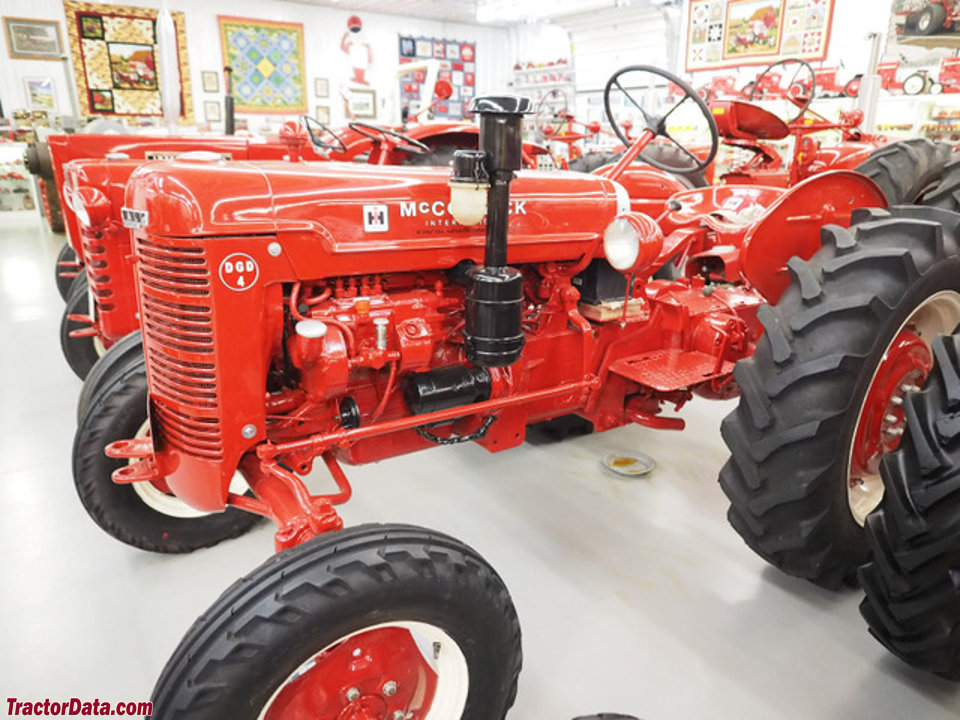

International Harvester DGD-4
International Harvester DGD-4 — Row-Crop tractor · 30 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
30 hp
Weight
1295 kg
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
Row-Crop tractorReference
Built in Neuss, GermanyReference
Total built8,130Reference
Two-wheel driveReference
Differential lockmechanical rearReference
Disc brakesReference
Open operator station.Reference
Engine
International Harvester 2.2L 4-cyl dieselReference
Fuel tank32.9 LReference
Engine22.4 kWReference
International Harvester DD-132Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke83 x 102 mmReference
Power22.4 kWReference
Compression19:1Reference
Rated RPM1750Reference
Starter volts12Reference
Oil capacity6.5 LReference
Coolant capacity13.0 LReference
Transmission
5-speed gearReference
TypegearReference
Gears5 forward and 1 reverseReference
PTO & Hydraulics
Rear TypeII/IReference
Rear PTO Type540 (1.375)Reference
Dimensions
Weight1295 kgReference
Front tire4.00-19Reference
Rear tire10-28Reference
Ag front4.00-19Reference
Ag rear10-28Reference
Ag front5.50-16Reference
Ag front6.00-16Reference
Ag rear8-36Reference
Ag rear9-36Reference
Ag rear11-28Reference
Length283 cmReference
Width163 cmReference
Height132 cmReference
Front tread125 to 205 cmReference
Rear tread125 to 189 cmReference
DGD-4 Serial Number Location
Serial number tag on the right side of the tractor, behind the clutch housing.Reference
Capacities
Diameter24 cmReference
Width16 cmReference
RPM1325Reference
Speeds
With 10-28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
