Tractor · 1953Unverified

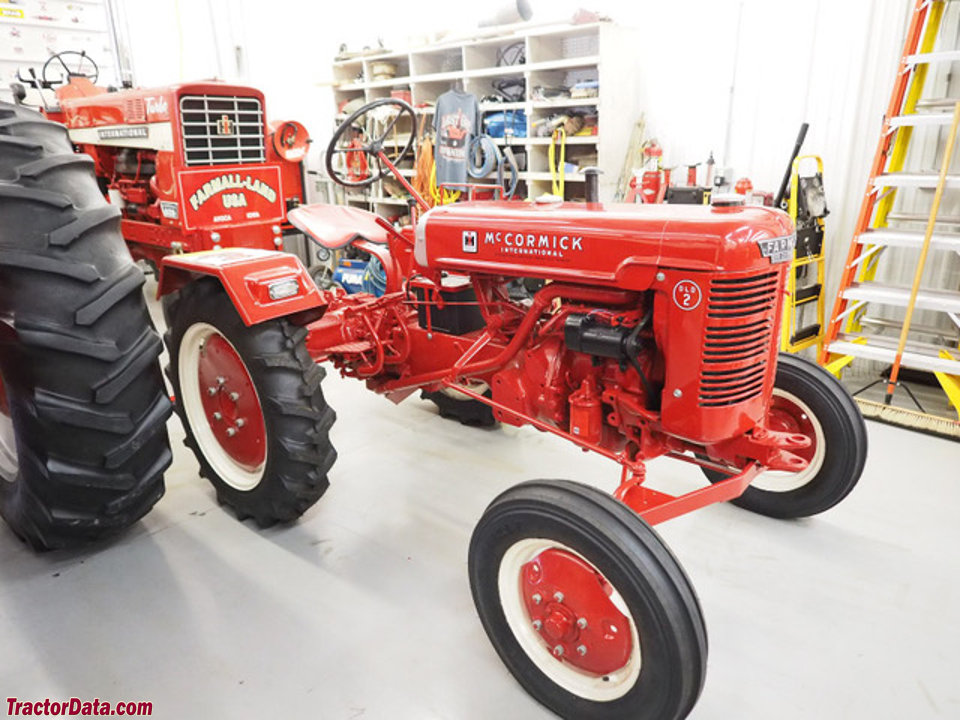

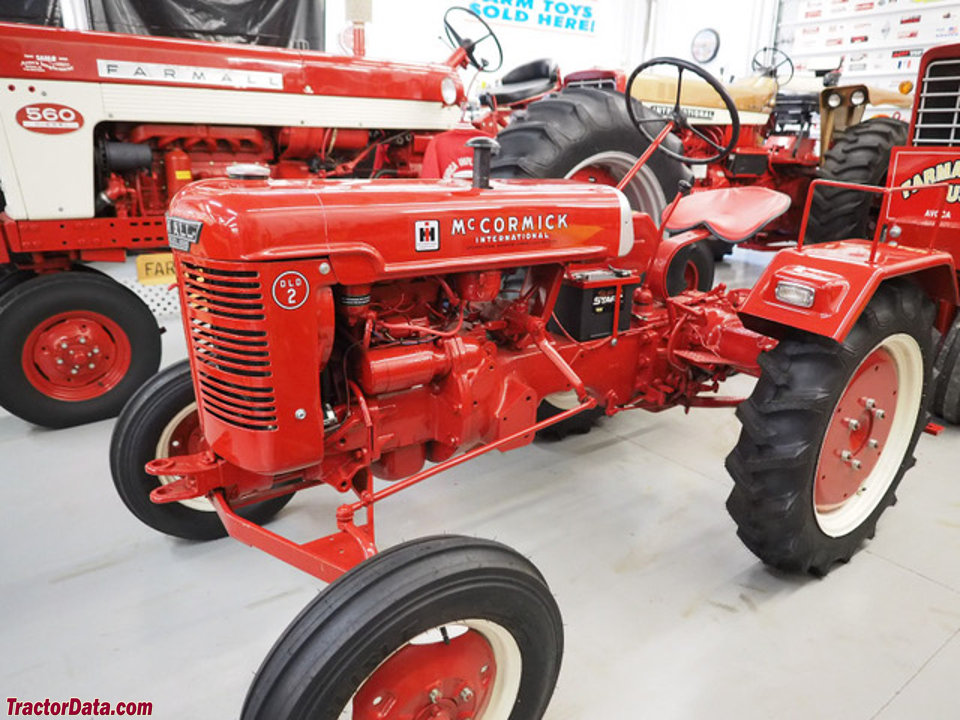

International Harvester DLD-2
International Harvester DLD-2 · 14 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
14 hp
Weight
878 kg
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
Built in Neuss, GermanyReference
Total built5,480Reference
Two-wheel driveReference
Open operator station.Reference
Engine
International Harvester 1.1L 2-cyl dieselReference
Engine10.4 kWReference
International Harvester DD-66Reference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement1.1 LReference
Bore/Stroke83 x 102 mmReference
Power10.4 kWReference
Rated RPM1750Reference
Firing order1-2Reference
Transmission
5-speed gearReference
TypegearReference
Gears5 forward and 1 reverseReference
Dimensions
Wheelbase157 cmReference
Weight878 kgReference
Front tire4.00-15Reference
Rear tire7-24Reference
Ag front4.00-15Reference
Ag rear7-24Reference
Length246 cmReference
Width153 cmReference
Height154 cmReference
Ground clearance36 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
