Tractor · 1962Unverified

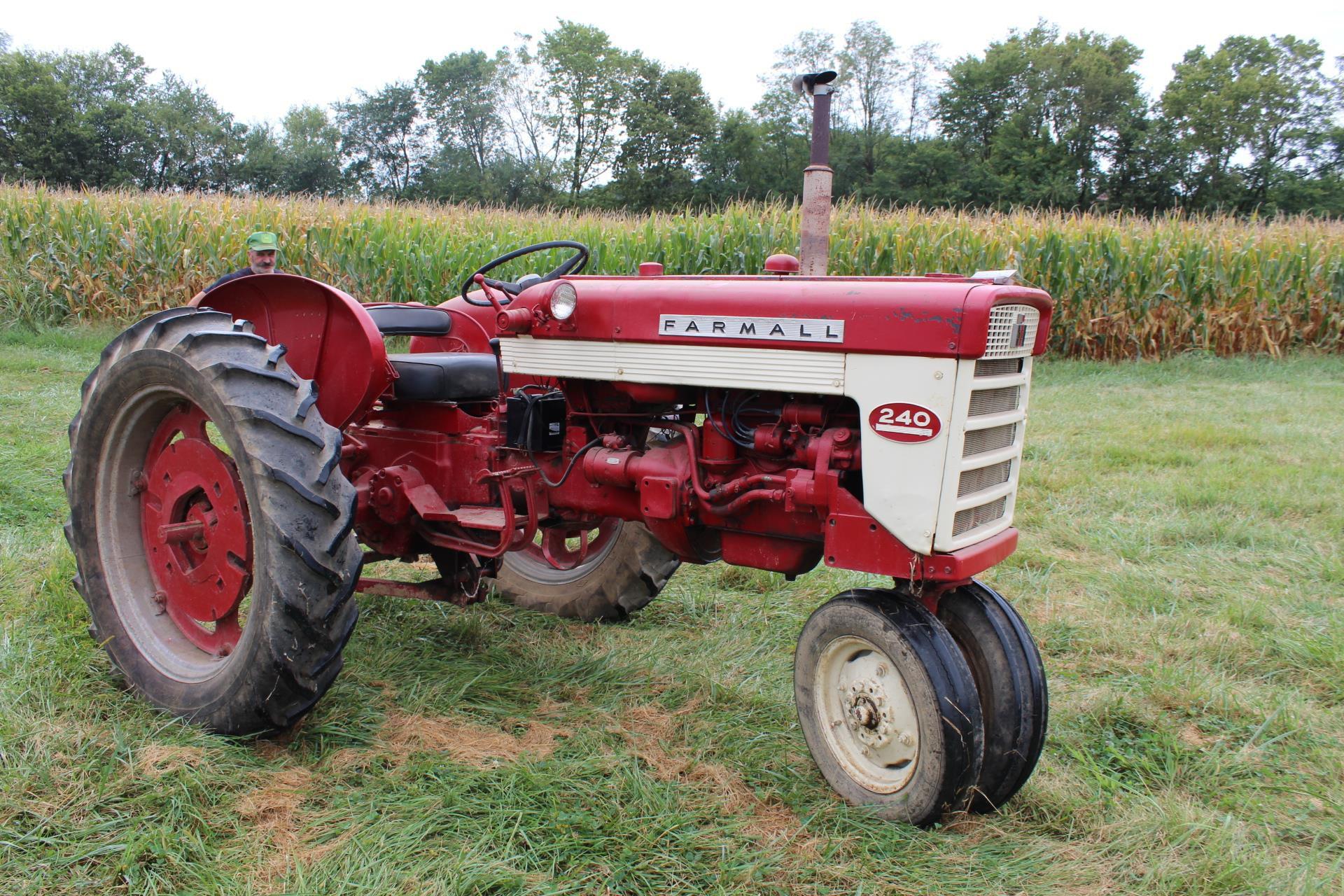

International Harvester F-240
International Harvester F-240 — Utility tractor · 30 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
30 hp
Weight
3527 to 4455 pounds
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
Utility tractorReference
Built in Saint Dizier, FranceReference
Two-wheel driveReference
Differential lockmechanical rearReference
Manual steeringReference
Disc brakesReference
Open operator station.Reference
Variants
StandardutilityReference
VineyardnarrowReference
Farmallrow-cropReference
Engine
International Harvester 2.1L 4-cyl dieselReference
Fuel tank43.1 LReference
Engine22.4 kWReference
International Harvester FD-128Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.1 LReference
Bore/Stroke81 x 102 mmReference
Power22.4 kWReference
Fuel systemindirect injectionReference
Rated RPM1800Reference
StarterelectricReference
Starter volts12Reference
Oil capacity6.2 LReference
Coolant capacity12.3 LReference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 1 reverseReference
Oil capacity35.5 LReference
Gears6 forward and 2 reverseReference
PTO & Hydraulics
Rear TypeIReference
Rear PTO Type540Reference
Dimensions
Wheelbase216 cmReference
Weight3527 to 4455 poundsReference
Front tire4.50-16Reference
Rear tire11-28Reference
Ag front4.50-16Reference
Standard Ag rear11-28Reference
Farmall Ag rear11-36Reference
Vineyard Ag rear11-24Reference
Ag front6.00-16Reference
Ag rear10-28Reference
Ag rear9-36Reference
Ag rear10-36Reference
Ag rear9-24Reference
Ag rear13-24Reference
Ag rear9-28Reference
Standard Length288 cmReference
Farmall Length316 cmReference
Vineyard Length284 cmReference
Width220 cmReference
Height127 cmReference
Ground clearance40 cmReference
Front tread124 to 189 cmReference
Rear tread127 to 189 cmReference
Standard1650 kgReference
Farmall2020 kgReference
Vineyard1599 kgReference
Speeds
With 9-36 rear tires.Reference
With 11-36 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
