Tractor · 1943Unverified

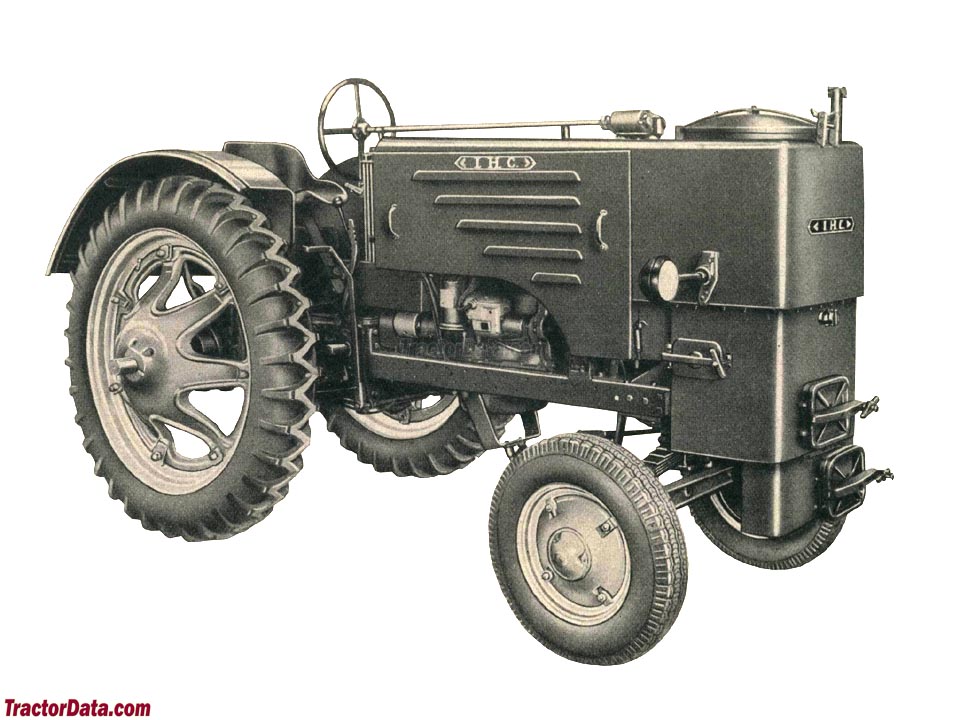

International Harvester HG
International Harvester HG · 20 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
20 hp
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
Built in Neuss, GermanyReference
Total built133Reference
Two-wheel driveReference
Open operator station.Reference
Variants
HSsteel wheelsReference
HGrubber tiresReference
Engine
2.0L 4-cyl wood gasReference
Engine14.9 kWReference
EG35Reference
wood gasReference
4-cylinderReference
Displacement2.0 LReference
Bore/Stroke80 x 102 mmReference
Power14.9 kWReference
Compression8.4:1Reference
Rated RPM1650Reference
Transmission
4-speed gearReference
TypegearReference
Gears4 forward and 1 reverseReference
When equipped with steel wheels (model HS) only three forward gears were available.Reference
PTO & Hydraulics
Rear PTO Type550 (1.375)Reference
Dimensions
Wheelbase199 cmReference
Front tire6.00x16Reference
Rear tire9.00x40Reference
Ag front6.00x16Reference
Ag rear9.00x40Reference
Ag front54x6 (steel)Reference
Length350 cmReference
Width199 cmReference
Height189 cmReference
Speeds
With 9.00x40 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
