Tractor · 1912Unverified

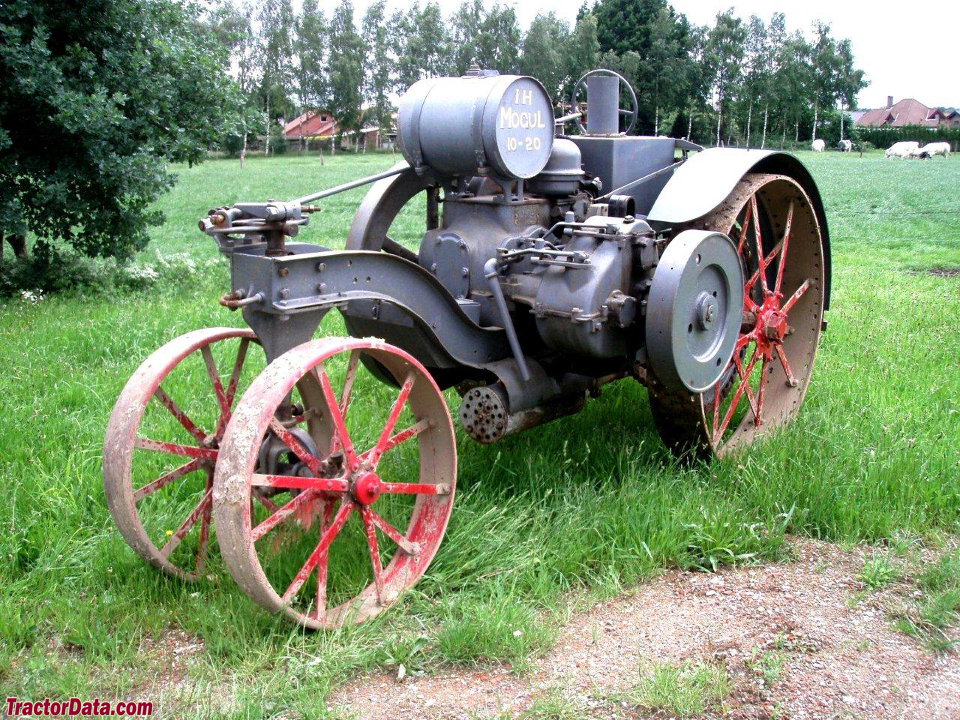

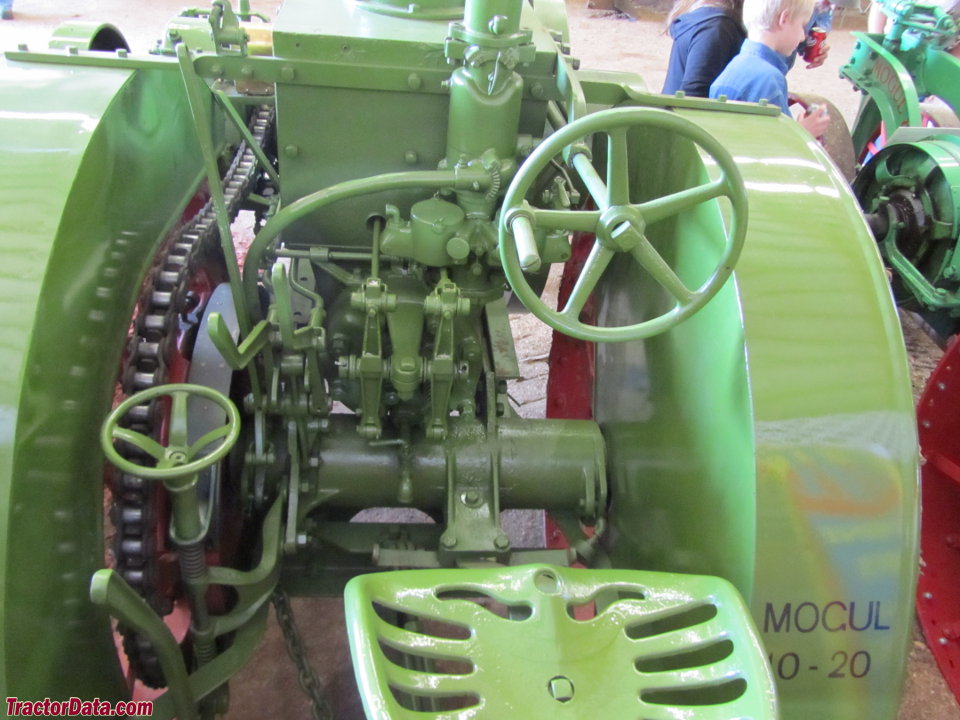

International Harvester Mogul 10-20
International Harvester Mogul 10-20 — Model year 1912-19131916-1919 · 10 hp. Reference specifications; pending source verification.
The International Harvester Mogul 10-20 is a lightweight tractor, with a rating of approximately 10 hp. It was manufactured from 1912 to 1919. The tractor features a 1-cylinder liquid-cooled engine and a two-wheel drive system with a 2-speed gearbox. Its listed operating weight is 2494 kg, suitable for operations covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
10 hp
Weight
2494 kg
Catalogue coverage
Variants represented
2
Richest spec table
32 rows
Recorded power
10 hp
Recorded weight
2494 kg
Transmissions
2-speed
Production years
1912-1919
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
Standard-tread tractorReference
Built in Chicago, Illinois, USAReference
Total built8,985Reference
Two-wheel driveReference
Manual steeringReference
Open operator station.Reference
Engine
International Harvester 11.2L 1-cyl keroseneReference
Drawbar (claimed)7.5 kWReference
Belt (claimed)14.9 kWReference
Plows3Reference
International HarvesterReference
keroseneReference
1-cylinderReference
liquid-cooledReference
Displacement11.2 LReference
Bore/Stroke216 x 305 mmReference
Rated RPM400Reference
Transmission
2-speedReference
Gears2 forward and 1 reverseReference
Dimensions
Weight2494 kgReference
Rear tire54x10Reference
Ag rear54x10 (steel)Reference
Length342 cmReference
Width142 cmReference
Height177 cmReference
Mogul 10-20 Serial Numbers
Location:1916Reference
BC5011917Reference
B5261918Reference
BC58641919Reference
BC9010FinalReference
FAQ: How to read a serial number table.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
