Tractor · 1912Unverified

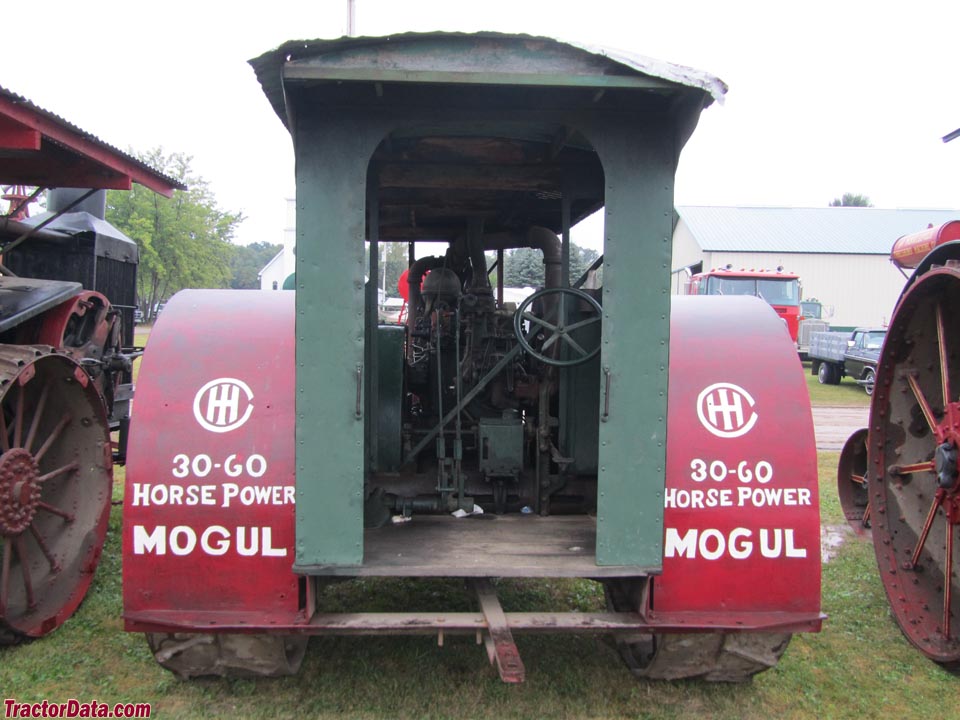

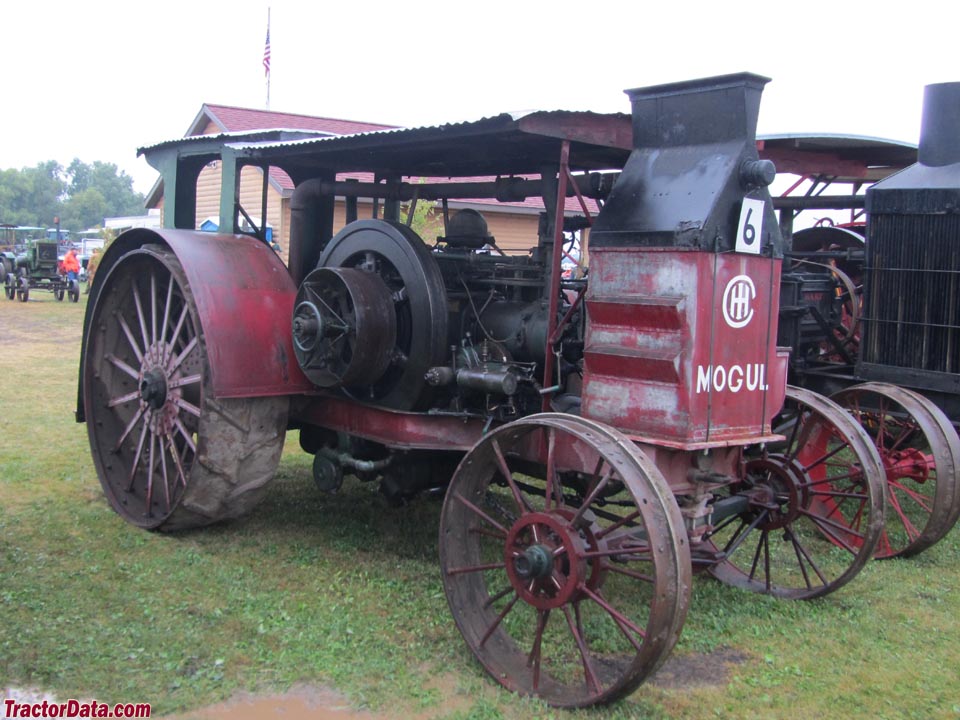

International Harvester Mogul 30-60
International Harvester Mogul 30-60 — Standard-tread tractor · 30 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
30 hp
Weight
9843 kg
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
Standard-tread tractorReference
Built in Chicago, Illinois, USAReference
The Mogul 30-60 was an improved version of the Mogul 45 tractor. International continued to use the name 45 in some of their production materials, while others used the new 30-60 rating.Reference
Two-wheel driveReference
Manual steeringReference
Engine

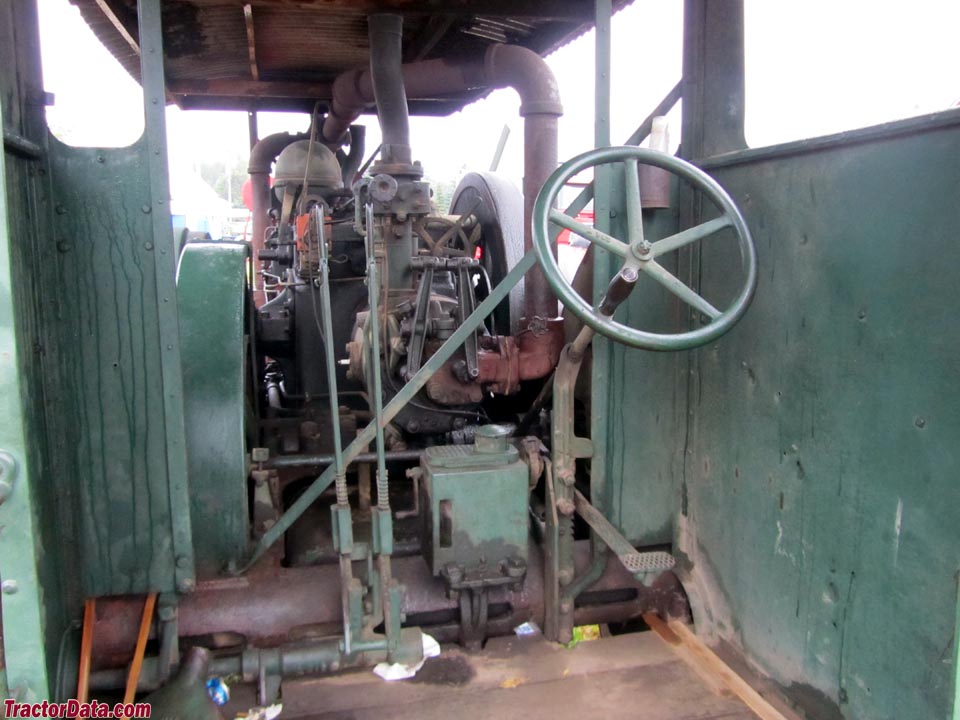

International Harvester 30.9L 2-cyl keroseneReference
Fuel tank189.2 LReference
Aux. fuel34.1 LReference
Drawbar (claimed)22.4 kWReference
Belt (claimed)44.7 kWReference
International HarvesterReference
keroseneReference
2-cylinderReference
liquid-cooled opposed twinReference
Displacement30.9 LReference
Bore/Stroke254 x 305 mmReference
Rated RPM375Reference
Starter typegas pony motorReference
Transmission
1-speedReference
Gears1 forward and reverseReference
Dimensions
Weight9843 kgReference
Front tire48x10Reference
Rear tire73x24Reference
Ag front48x10 (steel)Reference
Ag rear73x24 (steel)Reference
Length579 cmReference
Width292 cmReference
Height284 cmReference
Mogul 30-60 Serial Numbers
1913U2174Reference
1914U2838Reference
1915U2859Reference
1916U2936Reference
1917U2941Reference
FinalU2941Reference
FAQ: How to read a serial number table.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
