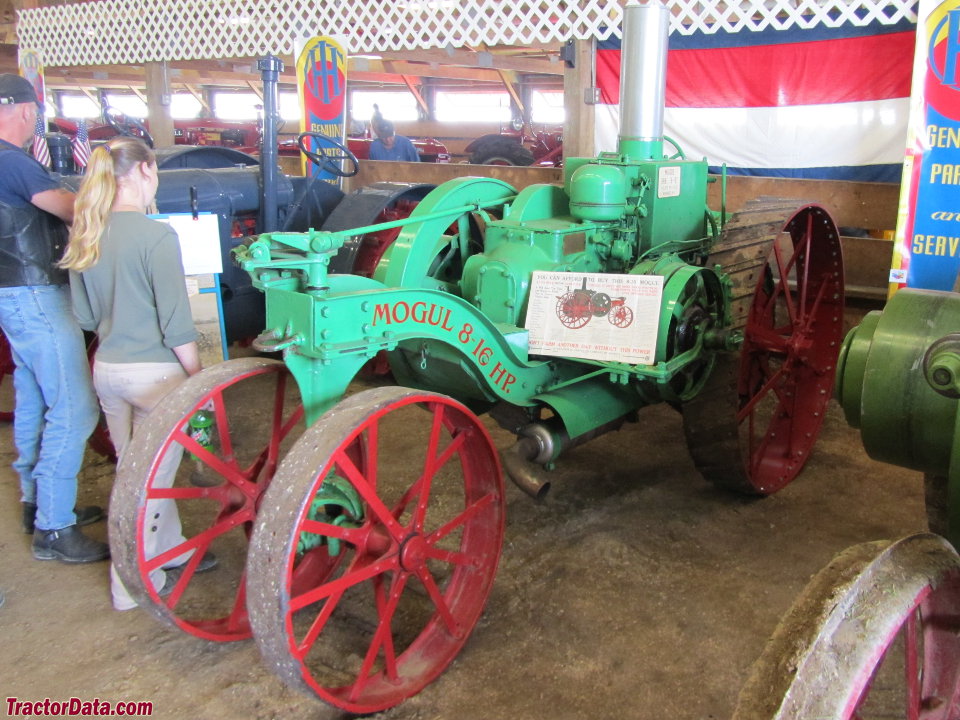

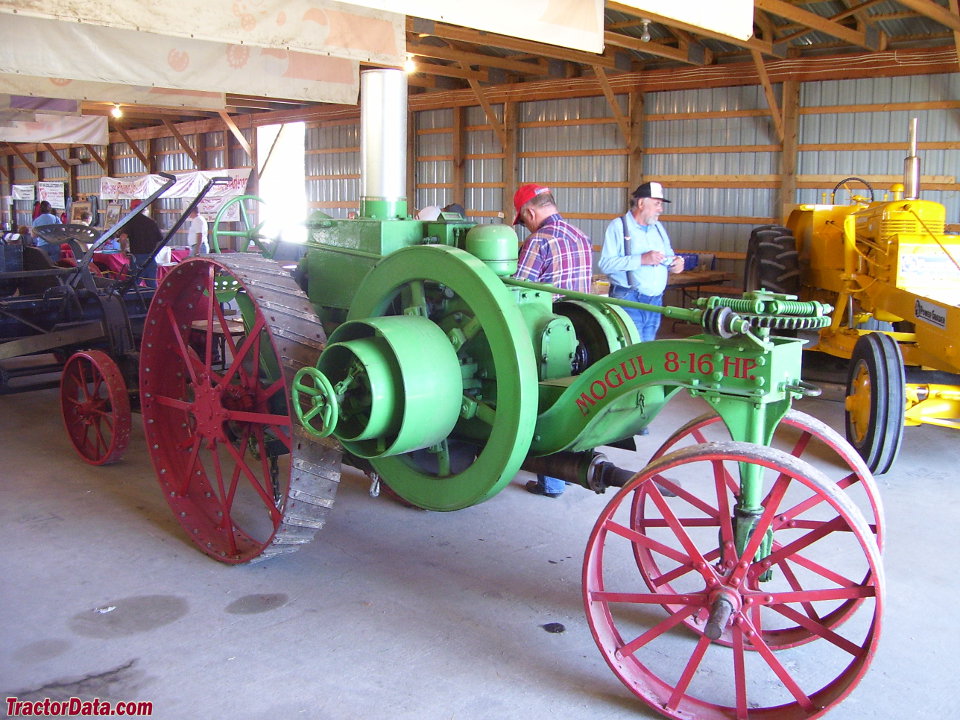

The International Harvester Mogul 8-16 tractor is a light-duty model, with an approximate power output of 8 horsepower. It was manufactured from 1914 to 1916. The machine features a 1-cylinder liquid-cooled engine and a two-wheel drive system with a 1-speed gearbox. Its operating weight is 2233 kg and is suitable for operations covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
8 hp
Weight
2233 kg
Catalogue coverage
Variants represented
2
Richest spec table
33 rows
Recorded power
8 hp
Recorded weight
2233 kg
Transmissions
1-speed unsynchronized gear
Production years
1914-1916
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
Standard-tread tractorReference
Built in Chicago, Illinois, USAReference
Original price was $675 in 1914Reference
Two-wheel driveReference
Manual steeringReference
Open operator station.Reference
Engine
International Harvester 9.9L 1-cyl keroseneReference
Fuel tank71.9 LReference
Drawbar (claimed)6.0 kWReference
Belt (claimed)11.9 kWReference
Plows2Reference
International HarvesterReference
keroseneReference
1-cylinderReference
liquid-cooledReference
Displacement9.9 LReference
Bore/Stroke203 x 305 mmReference
Rated RPM400Reference
Coolant capacity132.5 LReference
Transmission
1-speed unsynchronized gearReference
Typeunsynchronized gearReference
Gears1 forward and reverseReference
Dimensions
Weight2233 kgReference
Length342 cmReference
Width142 cmReference
Height154 cmReference
Mogul 8-16 Serial Numbers
1914SB501Reference
1915SB521Reference
1916SB5632Reference
1917SB13901Reference
FinalSB14565Reference
FAQ: How to read a serial number table.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
