Tractor · 1959Unverified

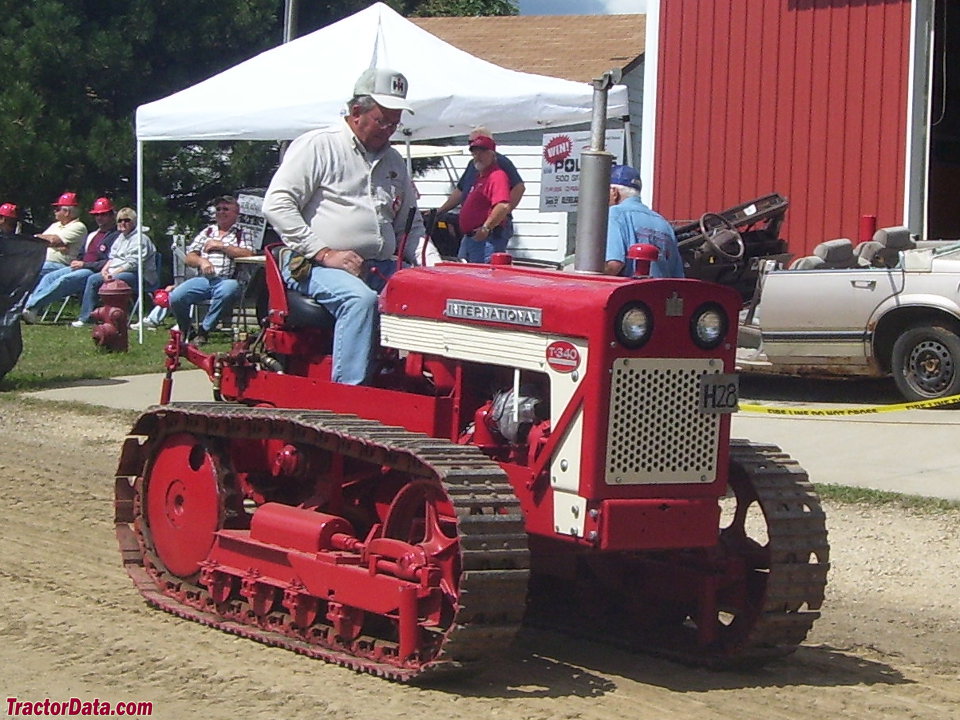

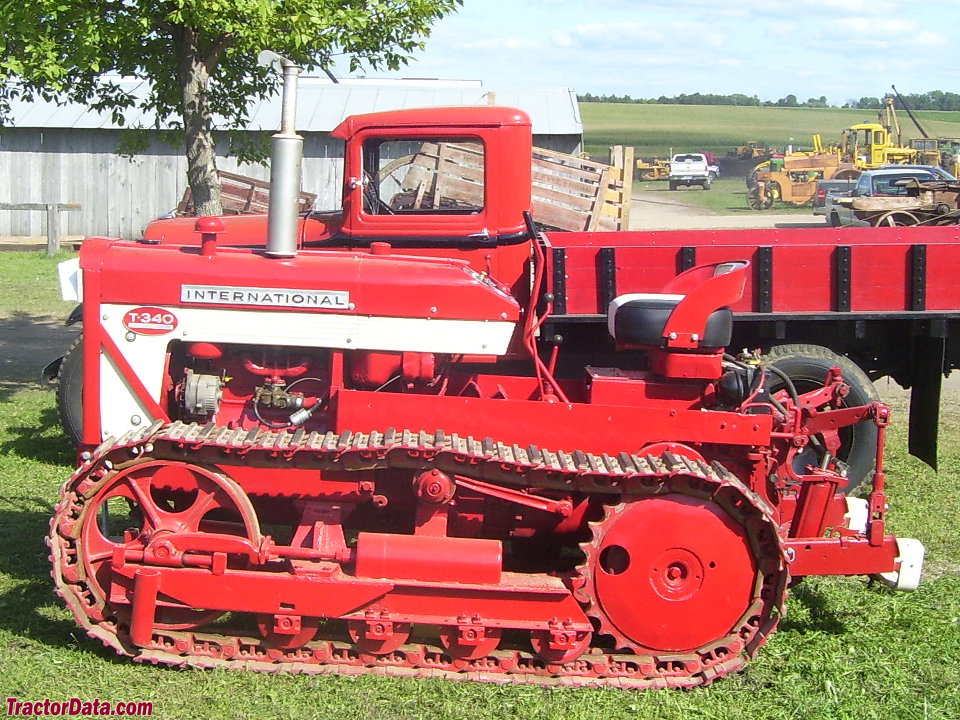

International Harvester T-340
International Harvester T-340 — Agricultural Crawler tractor · 45 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
45 hp
Max power
21.1 kW
Weight
2608 kg
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
Agricultural Crawler tractorReference
Total built8,025Reference
DrivecrawlerReference
Open operator station.Reference
Variants
TD-340diesel crawlerReference
IH 340utilityReference
Farmall 340row-cropReference
T-340crawlerReference
International 340industrialReference
Engine
International Harvester 2.2L 4-cyl gasolineReference
Fuel tank56.8 LReference
Engine (gross)33.6 kWReference
Drawbar (claimed)23.1 kWReference
Belt (claimed)27.2 kWReference
Drawbar (tested)21.1 kWReference
Belt (tested)27.2 kWReference
International Harvester C-135Reference
gasolineReference
4-cylinderReference
liquid-cooled vertical L-headReference
Displacement2.2 LReference
Bore/Stroke83 x 103 mmReference
Power (gross)33.6 kWReference
Compression7.38:1Reference
Rated RPM2000Reference
Coolant capacity64.4 LReference
Belt power (max)27.2 kWReference
Max power21.1 kWReference
Transmission
5-speed gearReference
10-speed two-speed power shiftReference
5-speed shuttleReference
TypegearReference
Gears5 forward and 1 reverseReference
Clutchdry discReference
TransmissionTorque AmplifierReference
Typetwo-speed power shiftReference
Gears10 forward and 2 reverseReference
TypeshuttleReference
Gears5 forward and reverseReference
Dimensions
Weight2608 kgReference
10-inch tracksReference
Length317 cmReference
Width147 cmReference
Height147 cmReference
Gauge96 cmReference
Gauge121 cmReference
International Harvester T-340 attachments
bladeReference
front-end loaderReference
backhoeReference
T-340 Serial Number Location
Serial number plate on the right side of tractor on transmission bell housing.Reference
T-340 Serial Numbers
1959501Reference
19601979Reference
19614344Reference
19615396 (Series A)Reference
19625449 (Series A)Reference
19636397 (Series A)Reference
19647338 (Series A)Reference
19658525 (Series A)Reference
FAQ: How to read a serial number table.Reference
Links
T340 Webpage: site with information on the T-340 and TD-340 crawlerReference
Attachment overview
BladeReference
Front-end loaderReference
BackhoeReference
Wagner 65-T Backhoe
Backhoe typeWagner 65-T BackhoeReference
Digging depth304 cmReference
Reach from pivot381 cmReference
Loading height259 cmReference
Swing Arc180°Reference
International Harvester T-340 Tracks
Width25 cmReference
Length on ground167 cmReference
Area on ground0.9 m²Reference
Width35 cmReference
Area on ground1.2 m²Reference
Test results
Gasoline 5-speed crawlerOctober 21 - 29, 1959Link: Nebraska Tractor Test 725 fileReference
Belt fuel use (max)11.7 l/hourReference
Drawbar performanceReference
Fuel use12.5 l/hourReference
Gear 2 used for power test.Reference
Max pull2970 kgReference
Gear 1 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
